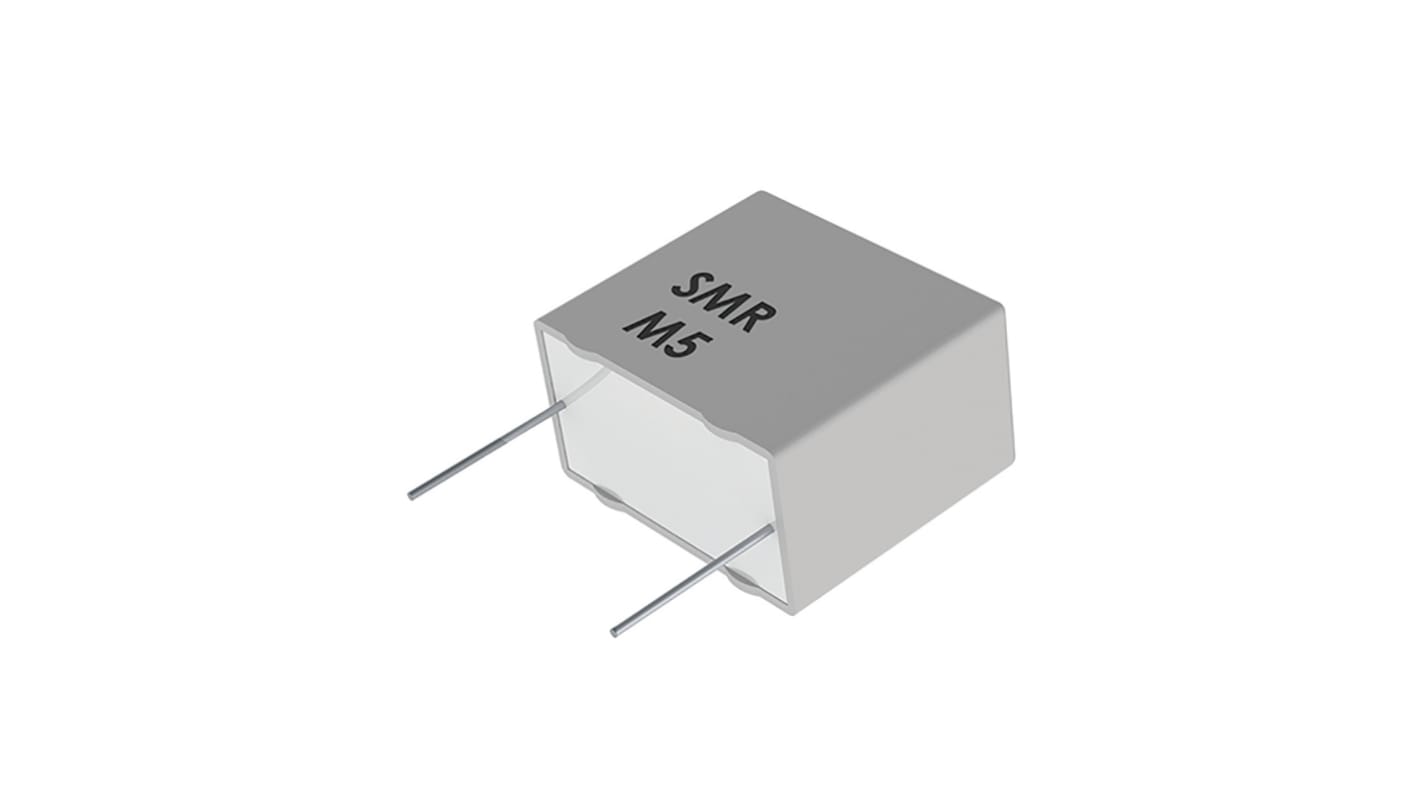

KEMET SMR Metallised Polyphenylene Sulphide Film Capacitor, 200 V ac, 400V dc, ±5%, 100nF, Through Hole
- RS Stock No.:
- 171-9352
- Mfr. Part No.:
- SMR15104J400B10L16.5CBULK
- Brand:
- KEMET
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Pack of 2)
£2.205
(exc. VAT)
£2.646
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 18 | £2.205 | £4.41 |
| 20 - 48 | £1.79 | £3.58 |
| 50 - 98 | £1.57 | £3.14 |
| 100 - 298 | £1.365 | £2.73 |
| 300 + | £1.17 | £2.34 |
| *price indicative | ||
- RS Stock No.:
- 171-9352
- Mfr. Part No.:
- SMR15104J400B10L16.5CBULK
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FI
Product Details
The SMR Series is a metallized polyphenylene sulfide film capacitor with vacuum-evaporated aluminium electrodes. Radial leads of tinned wire are electrically welded to the contact metal layer on the ends of the capacitor winding. The capacitor is encapsulated in self-extinguishing material.
Voltage range: 50 – 400 VDC: 30 – 200 VAC
Capacitance range: 0.001 – 22 μF
Lead spacing: 5 – 27.5 mm
Capacitance tolerance: ±10%, ±20%, ±2.5% and ±5%
Tape and reel packaging
Lead-free terminations
Category temperature range −55 to +150°C
Rated temperature +125°C
Capacitance range: 0.001 – 22 μF
Lead spacing: 5 – 27.5 mm
Capacitance tolerance: ±10%, ±20%, ±2.5% and ±5%
Tape and reel packaging
Lead-free terminations
Category temperature range −55 to +150°C
Rated temperature +125°C
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100nF |
| Voltage | 200 V ac, 400V dc |
| Mounting Type | Through Hole |
| Tolerance | ±5% |
| Series | SMR |
| Lead Pitch | 15mm |
| Length | 18mm |
| Depth | 6.5mm |
| Height | 12.5mm |
| Dimensions | 18 x 6.5 x 12.5mm |
| Dielectric | Metallised Polyphenylene Sulphide |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -55°C |
| Lead Diameter | 0.8mm |
