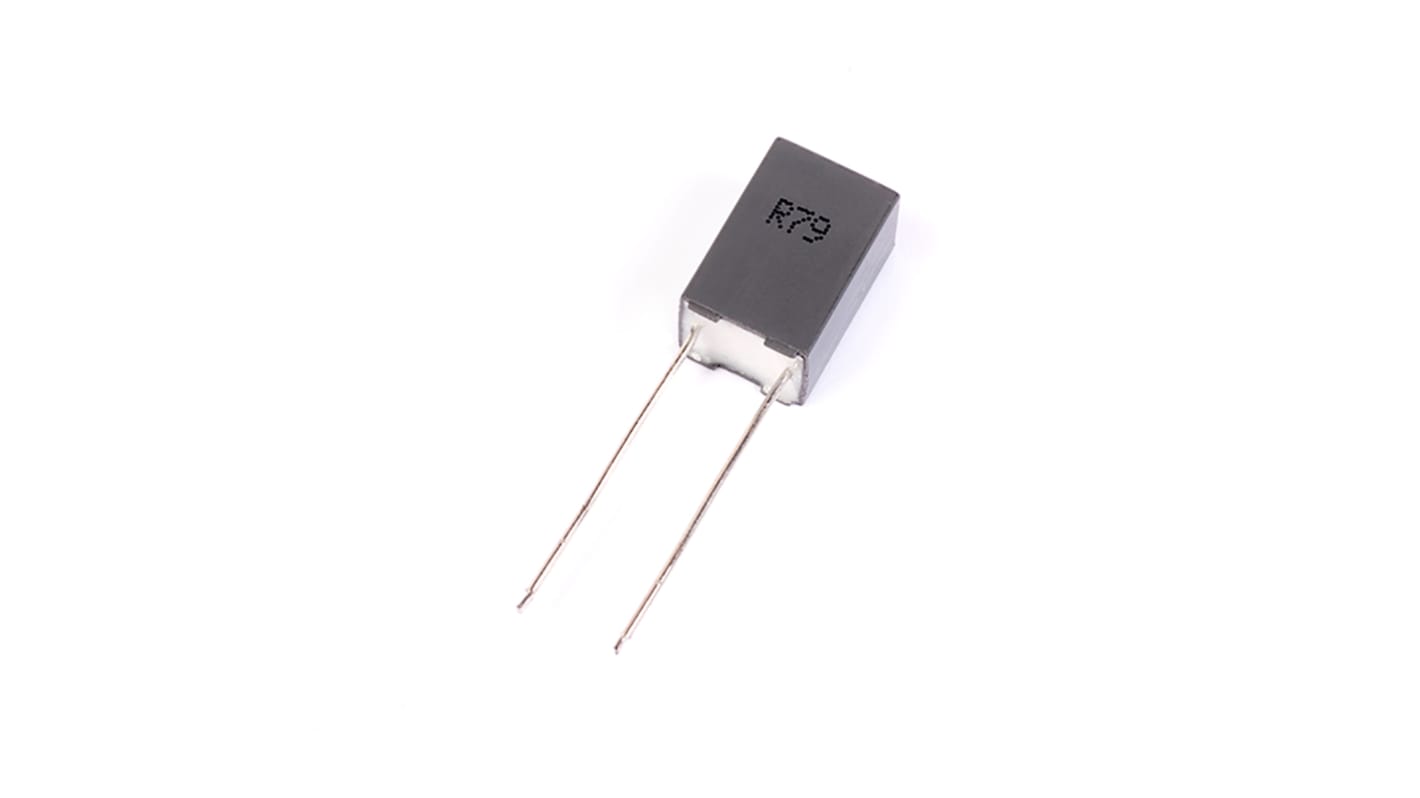

KEMET R79 Metallised Polypropylene Film Capacitor, 160 V ac, 250 V dc, ±5%, 22nF, Through Hole
- RS Stock No.:
- 171-9259
- Mfr. Part No.:
- R79IC2220Z345J
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.49
(exc. VAT)
£2.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 160 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 90 | £0.249 | £2.49 |
100 - 240 | £0.152 | £1.52 |
250 - 490 | £0.13 | £1.30 |
500 - 1490 | £0.12 | £1.20 |
1500 + | £0.097 | £0.97 |
*price indicative
- RS Stock No.:
- 171-9259
- Mfr. Part No.:
- R79IC2220Z345J
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 22nF | |
Voltage | 160 V ac, 250 V dc | |
Mounting Type | Through Hole | |
Tolerance | ±5% | |
Series | R79 | |
Lead Pitch | 5mm | |
Length | 7.2mm | |
Lead Length | 17mm | |
Depth | 3.5mm | |
Height | 7.5mm | |
Dimensions | 7.2 x 3.5 x 7.5mm | |
Dielectric | Metallised Polypropylene | |
Terminal Type | Radial | |
Lead Diameter | 0.5mm | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -55°C | |
Dissipation Factor | 0.06 %, 0.1 %, 0.3 % | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 22nF | ||
Voltage 160 V ac, 250 V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series R79 | ||
Lead Pitch 5mm | ||
Length 7.2mm | ||
Lead Length 17mm | ||
Depth 3.5mm | ||
Height 7.5mm | ||
Dimensions 7.2 x 3.5 x 7.5mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Radial | ||
Lead Diameter 0.5mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 0.06 %, 0.1 %, 0.3 % | ||
- COO (Country of Origin):
- ID
The R79 Series is constructed of metallized polypropylene film with radial leads of tinned wire. The radial leads are electrically welded to the metal layer on the ends of the capacitor winding. The capacitor is encapsulated with a self-extinguishing thermosetting resin.
Voltage range: 160 – 630 VDC
Capacitance range: 0.001 – 0.22 μF
Lead Spacing: 5 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Operating temperature range of −55˚C to +105˚C
Lead-free terminations
Tape and reel packaging
Self-healing
Capacitance range: 0.001 – 0.22 μF
Lead Spacing: 5 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Operating temperature range of −55˚C to +105˚C
Lead-free terminations
Tape and reel packaging
Self-healing
