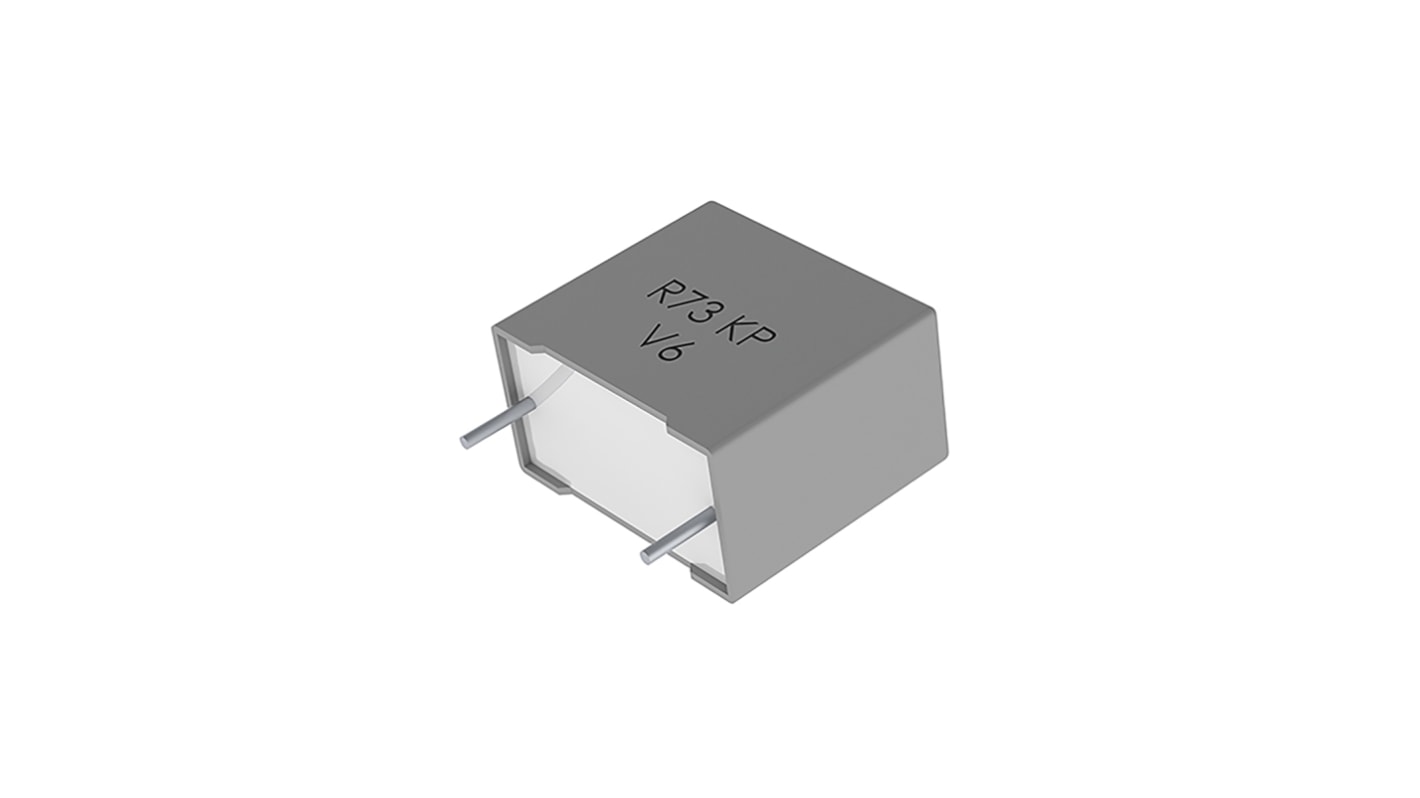

KEMET R73 Polypropylene Film Capacitor, 1.6 kV dc, 450 V ac, ±5%, 2.2nF, Through Hole

View all Film Capacitors

Subtotal (1 pack of 10 units)*

£5.69

(exc. VAT)

£6.83

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 570 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£0.569£5.69

*price indicative

RS Stock No.:
171-9156
Mfr. Part No.:
R73TI12204000J
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Capacitance

2.2nF

Voltage

1.6 kV dc, 450 V ac

Mounting Type

Through Hole

Tolerance

±5%

Series

R73

Lead Pitch

15mm

Automotive Standard

AEC-Q200

Length

18mm

Depth

6mm

Lead Length

30mm

Height

12mm

Dimensions

18 x 6 x 12mm

Dielectric

Polypropylene

Terminal Type

Radial

Dissipation Factor

0.03 %, 0.04 %, 0.1 %

Lead Diameter

0.8mm

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+105°C

COO (Country of Origin):
BG
The R73 Series is constructed of polypropylene film and metal foil or metallized film and metal foil with radial leads of tinned wire. The radial leads are electrically welded to the metal layer on the ends of the capacitor winding. The capacitor is encapsulated in a self-extinguishing solvent resistant plastic case with thermosetting resin material. Two different winding constructions are used depending on voltage parameters.

Voltage range: 100 – 2,000 VDC
Capacitance range: 100 pF – 2.2 μF
Lead Spacing: 15 – 37.5 mm
Capacitance tolerance: ±2.5% (for 2-section construction
only) ±5%, ±10%
Operating temperature range of −55˚C to +105˚C
Lead-free terminations
Tape and reel packaging
Self-healing
