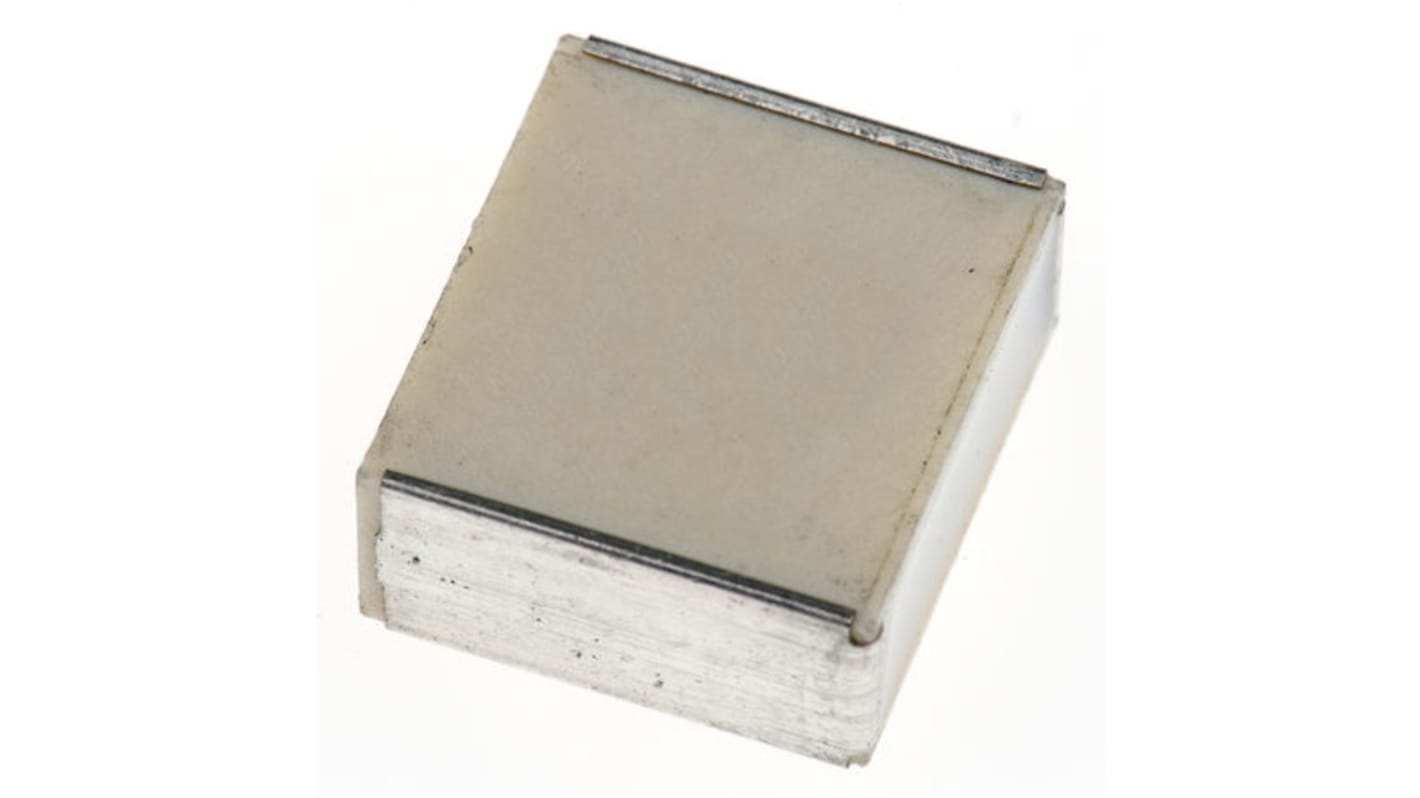

KEMET F161 Polyester Film Capacitor, 630V dc, ±10%, 180nF, Surface Mount
- RS Stock No.:
- 144-4475
- Mfr. Part No.:
- F161ZS184K630V
- Brand:
- KEMET
Subtotal (1 reel of 200 units)*
£524.80
(exc. VAT)
£629.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
200 + | £2.624 | £524.80 |
*price indicative
- RS Stock No.:
- 144-4475
- Mfr. Part No.:
- F161ZS184K630V
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 180nF | |
Voltage | 630V dc | |
Mounting Type | Surface Mount | |
Tolerance | ±10% | |
Series | F161 | |
Automotive Standard | AEC-Q200 | |
Length | 16.5mm | |
Depth | 15mm | |
Height | 7mm | |
Dimensions | 16.5 x 15 x 7mm | |
Dielectric | Polyester | |
Dissipation Factor | 0.8 % @ 1 kHz, 1.2 % @ 10 kHz, 3 % @ 100 kHz | |
Minimum Operating Temperature | -55°C | |
Package/Case | 6560 | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 180nF | ||
Voltage 630V dc | ||
Mounting Type Surface Mount | ||
Tolerance ±10% | ||
Series F161 | ||
Automotive Standard AEC-Q200 | ||
Length 16.5mm | ||
Depth 15mm | ||
Height 7mm | ||
Dimensions 16.5 x 15 x 7mm | ||
Dielectric Polyester | ||
Dissipation Factor 0.8 % @ 1 kHz, 1.2 % @ 10 kHz, 3 % @ 100 kHz | ||
Minimum Operating Temperature -55°C | ||
Package/Case 6560 | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- IT
KEMET F161 Series Polyester Film Capacitors
From KEMET, the F161 series of polyester film capacitors are highly stable general purpose capacitors. These polyester film capacitors are constructed with a UL 94 V-0 self-extinguishing material.
Features and Benefits:
Standard EIA case sizes are available
Climatic category 55/125/56
Operating temperature range of -55°C to +25°C
A range of capacitance options are available
Product Applications:
With an AEC-Q200 qualification, these film capacitors can be used within automotive applications. Typical applications include signal coupling and bypassing.
Standards
AEC-Q200 qualified
