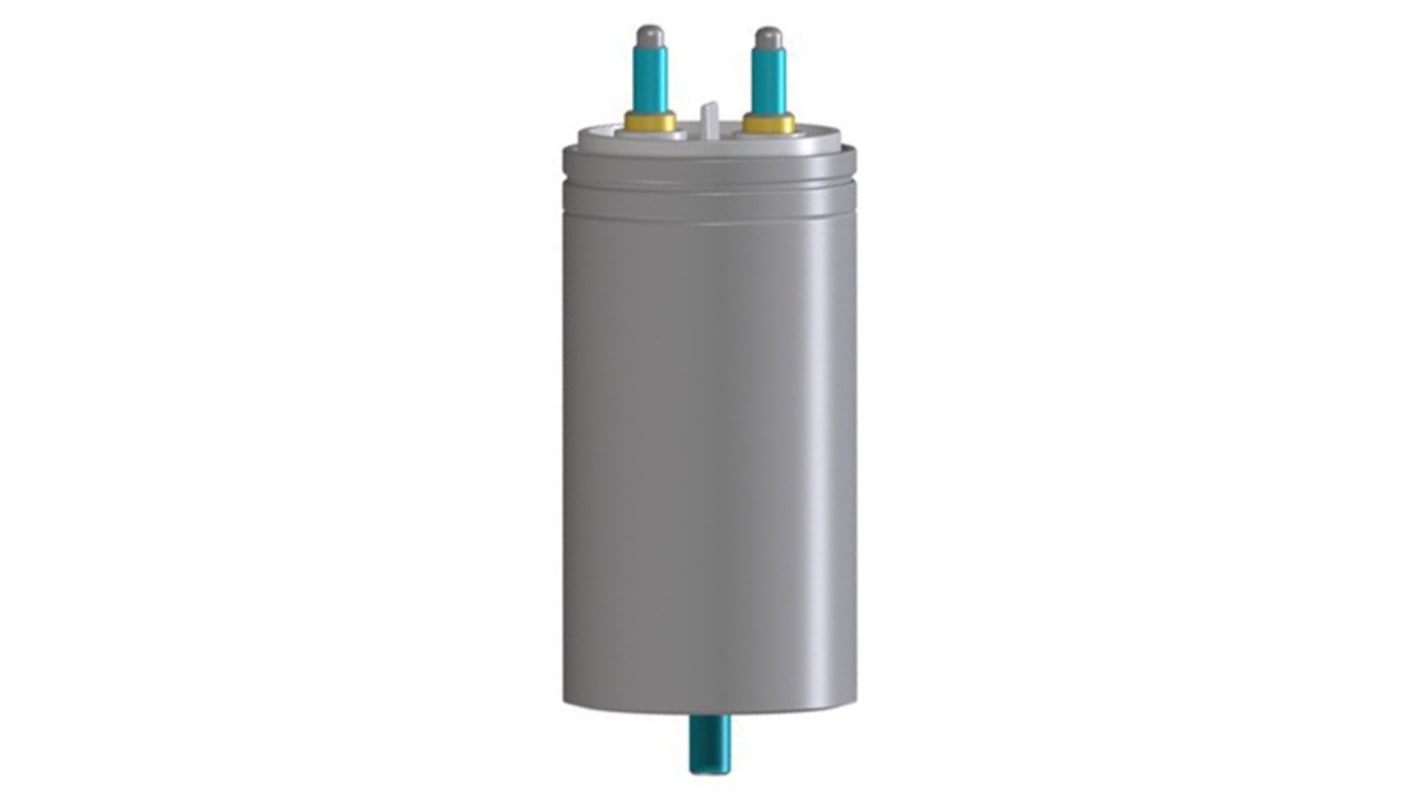

KEMET C44H Metallised Polypropylene Film Capacitor, 330 V ac, 700 V dc, ±5%, 400μF, Stud Mount
- RS Stock No.:
- 137-2322
- Mfr. Part No.:
- C44HLGR6400AASJ
- Brand:
- KEMET
Subtotal (1 box of 9 units)*
£546.372
(exc. VAT)
£655.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
9 + | £60.708 | £546.37 |
*price indicative
- RS Stock No.:
- 137-2322
- Mfr. Part No.:
- C44HLGR6400AASJ
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 400µF | |
Voltage | 330 V ac, 700 V dc | |
Mounting Type | Stud Mount | |
Tolerance | ±5% | |
Series | C44H | |
Lead Pitch | 35mm | |
Length | 242mm | |
Depth | 75mm | |
Lead Length | 25mm | |
Dimensions | 75 (Dia.) x 242mm | |
Dielectric | Metallised Polypropylene | |
Terminal Type | Male Threaded | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -25°C | |
Dissipation Factor | ≤0.0002% | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 400µF | ||
Voltage 330 V ac, 700 V dc | ||
Mounting Type Stud Mount | ||
Tolerance ±5% | ||
Series C44H | ||
Lead Pitch 35mm | ||
Length 242mm | ||
Depth 75mm | ||
Lead Length 25mm | ||
Dimensions 75 (Dia.) x 242mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Male Threaded | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Dissipation Factor ≤0.0002% | ||
- COO (Country of Origin):
- BG
KEMET C44H Series
From KEMET, C44H power capacitors are constructed from a cylindrical aluminium can and polypropylene metallised film. These capacitors are filled with liquid resin and feature screw terminals and a plastic deck.
Features and Benefits
Self-healing
Long life span
Overpressure safety device
Capable of handling high peak current
Product applications
Suitable applications for these power film capacitors included AC harmonic filtering, power factor correction and commutation.
Screw Terminal +75°C
