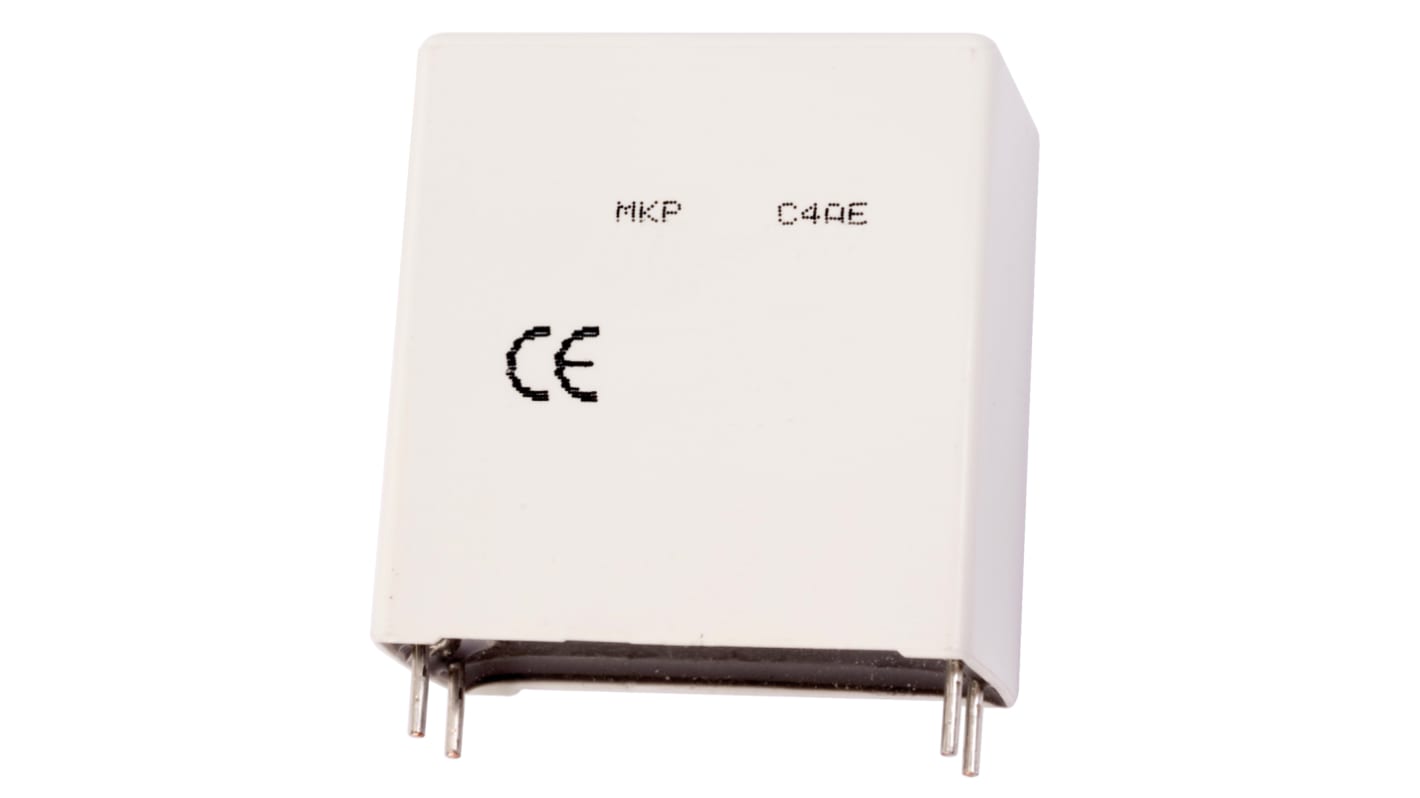

KEMET C4AE Metallised Polypropylene Film Capacitor, 600V dc, ±5%, 15μF, Through Hole
- RS Stock No.:
- 137-2300
- Mfr. Part No.:
- C4AEHBU5150A12J
- Brand:
- KEMET
Bulk discount available
Subtotal (1 box of 64 units)*
£323.20
(exc. VAT)
£387.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
64 - 256 | £5.05 | £323.20 |
320 - 576 | £4.212 | £269.57 |
640 + | £4.01 | £256.64 |
*price indicative
- RS Stock No.:
- 137-2300
- Mfr. Part No.:
- C4AEHBU5150A12J
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 15µF | |
Voltage | 600V dc | |
Mounting Type | Through Hole | |
Tolerance | ±5% | |
Series | C4AE | |
Lead Pitch | 27.5mm | |
Length | 31.5mm | |
Depth | 22mm | |
Lead Length | 6mm | |
Height | 37mm | |
Equivalent Series Resistance | 5.3mΩ | |
Dimensions | 31.5 x 22 x 37mm | |
Dielectric | Metallised Polypropylene | |
Terminal Type | Radial | |
Dissipation Factor | ≤0.0002% | |
Minimum Operating Temperature | -40°C | |
Lead Diameter | 0.8mm | |
Maximum Operating Temperature | +85°C | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 15µF | ||
Voltage 600V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series C4AE | ||
Lead Pitch 27.5mm | ||
Length 31.5mm | ||
Depth 22mm | ||
Lead Length 6mm | ||
Height 37mm | ||
Equivalent Series Resistance 5.3mΩ | ||
Dimensions 31.5 x 22 x 37mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Radial | ||
Dissipation Factor ≤0.0002% | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 0.8mm | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- IT
KEMET C4AE Film Capacitors
KEMET C4AE power film capacitors are constructed from polypropylene metallised film, with a resin filled plastic box. These film capacitors have either 2 or 4 tinned copper wires.
Features and Benefits
High ripple current
Low losses
Self-healing
Excellent contact reliability
High capacitance density
Product Applications
Suitable applications for these film capacitors include energy storage and DC filtering. C4AE film capacitors are ideal for high frequency applications.
Note
Product NOT FOR NEW DESIGN - Please refer to C4AF-T series alternative. 1744301
Radial 105°C
Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
