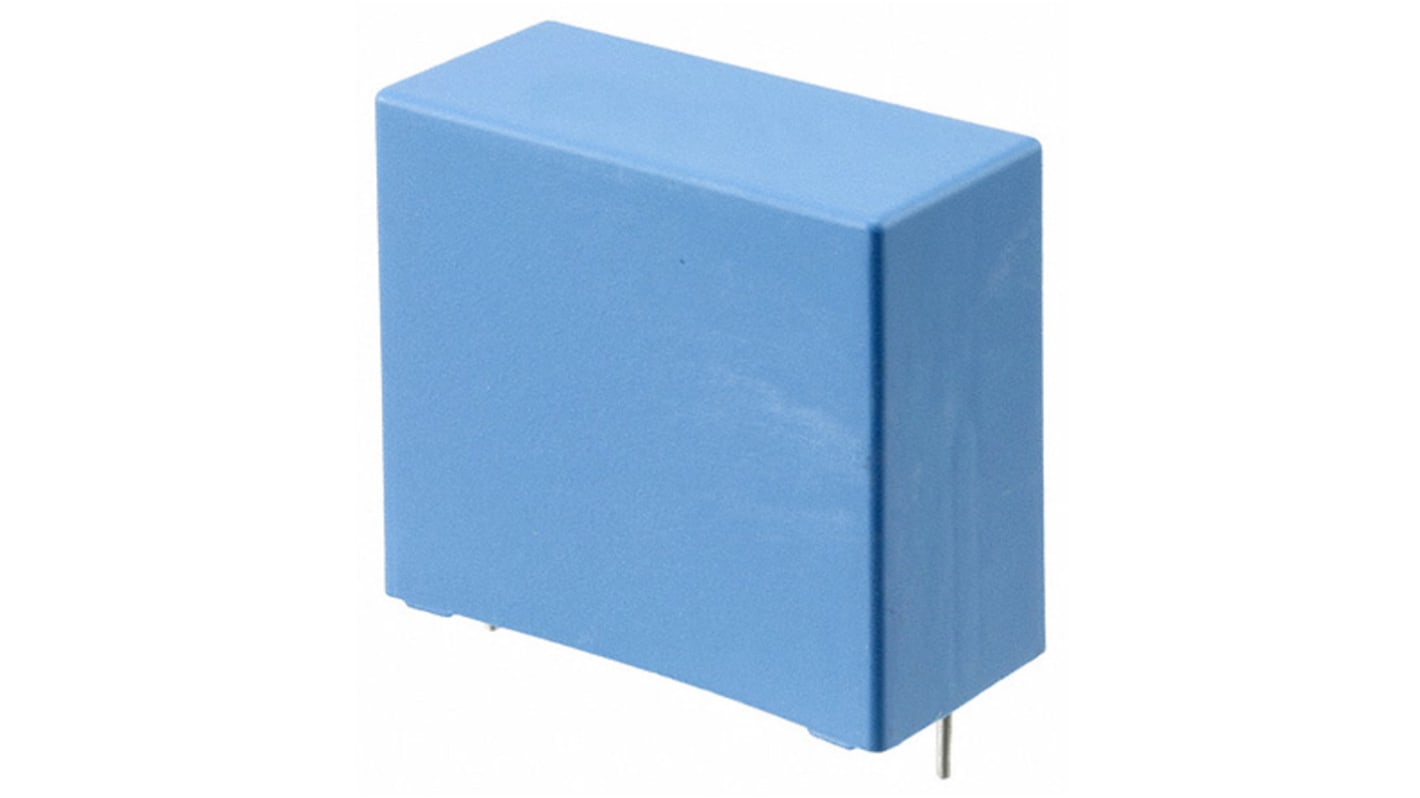

KEMET PHE450 Polypropylene Capacitor PP, 3kV dc, ±5%, 22nF
- RS Stock No.:
- 135-3481
- Mfr. Part No.:
- PHE450XD5220JD20R06L2
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.03
(exc. VAT)
£7.236
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,668 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £3.015 | £6.03 |
10 - 50 | £2.45 | £4.90 |
52 - 102 | £2.13 | £4.26 |
104 + | £1.88 | £3.76 |
*price indicative
- RS Stock No.:
- 135-3481
- Mfr. Part No.:
- PHE450XD5220JD20R06L2
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 22nF | |
Voltage | 3kV dc | |
Tolerance | ±5% | |
Series | PHE450 | |
Lead Pitch | 22.5mm | |
Length | 26mm | |
Lead Length | 6mm | |
Depth | 13.5mm | |
Height | 23mm | |
Dimensions | 26 x 13.5 x 23mm | |
Terminal Type | Radial | |
Minimum Operating Temperature | -55°C | |
Lead Diameter | 0.8mm | |
Dissipation Factor | 0.0003 % @ 1 kHz, 0.0004 % @ 10 kHz, 0.0015 % @ 100 kHz | |
Maximum Operating Temperature | +105°C | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 22nF | ||
Voltage 3kV dc | ||
Tolerance ±5% | ||
Series PHE450 | ||
Lead Pitch 22.5mm | ||
Length 26mm | ||
Lead Length 6mm | ||
Depth 13.5mm | ||
Height 23mm | ||
Dimensions 26 x 13.5 x 23mm | ||
Terminal Type Radial | ||
Minimum Operating Temperature -55°C | ||
Lead Diameter 0.8mm | ||
Dissipation Factor 0.0003 % @ 1 kHz, 0.0004 % @ 10 kHz, 0.0015 % @ 100 kHz | ||
Maximum Operating Temperature +105°C | ||
KEMET PHE450 Series Metallized Polypropylene Capacitors
KEMET PHE450 series double metallized polypropelene film capacitors are encapsulated in a self-extinguishing resin in a box of material which meets UL 94 V-0 requirements. Suitable for applications with high current stress like protection circuits in switch mode power supplies and deflection circuits in televisions.
Features
Double metallised polypropylene film pulse capacitor
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm
Radial 105°C
Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
