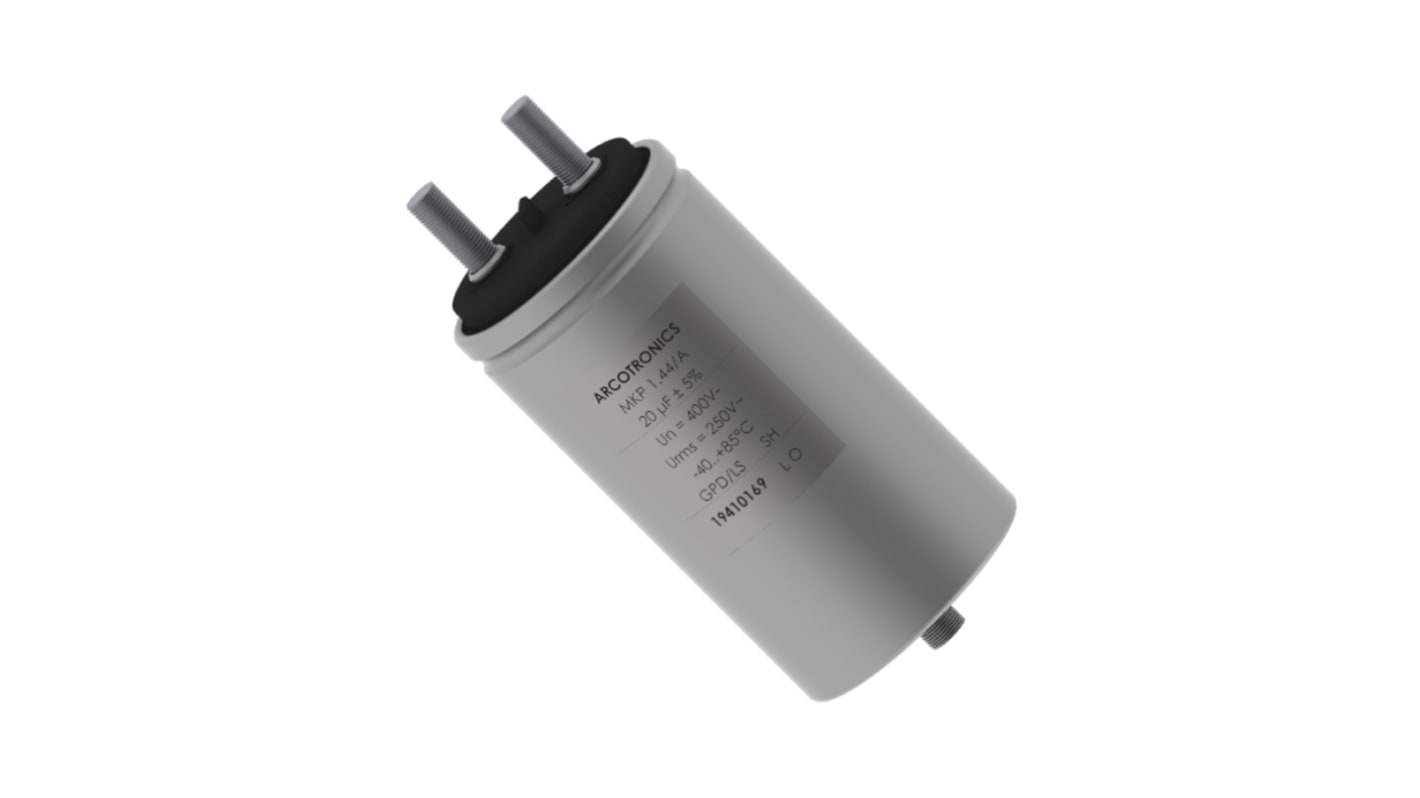

KEMET C44A Polypropylene Film Capacitor, 400 V ac, 700 V dc, ±5%, 20μF, Screw Mount
- RS Stock No.:
- 123-5073
- Mfr. Part No.:
- C44AJFP5200ZD0J
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£28.56
(exc. VAT)
£34.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 17 unit(s) shipping from 27 October 2025
- Plus 1 unit(s) shipping from 27 October 2025
- Plus 133 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £28.56 |
| 5 - 9 | £21.79 |
| 10 - 24 | £20.85 |
| 25 + | £20.13 |
*price indicative
- RS Stock No.:
- 123-5073
- Mfr. Part No.:
- C44AJFP5200ZD0J
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 20µF | |
| Voltage | 400 V ac, 700 V dc | |
| Mounting Type | Screw Mount | |
| Tolerance | ±5% | |
| Series | C44A | |
| Lead Pitch | 22.3mm | |
| Lead Length | 1.3mm | |
| Height | 101mm | |
| Equivalent Series Resistance | 3mΩ | |
| Dimensions | 50 (Dia.) x 101mm | |
| Dielectric | Polypropylene | |
| Terminal Type | Male Threaded | |
| Dissipation Factor | 15 x 10⁻⁴% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Package/Case | F | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 20µF | ||
Voltage 400 V ac, 700 V dc | ||
Mounting Type Screw Mount | ||
Tolerance ±5% | ||
Series C44A | ||
Lead Pitch 22.3mm | ||
Lead Length 1.3mm | ||
Height 101mm | ||
Equivalent Series Resistance 3mΩ | ||
Dimensions 50 (Dia.) x 101mm | ||
Dielectric Polypropylene | ||
Terminal Type Male Threaded | ||
Dissipation Factor 15 x 10⁻⁴% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Package/Case F | ||
- COO (Country of Origin):
- IT
KEMET C44A Series
KEMET C44A film capacitors are constructed from polypropylene segmented metallised film within a cylindrical aluminium case. C44A film capacitors feature screw terminals and a plastic deck.
Controlled self-healing
Low losses
High ripple current
High capacitance density
Long lifetime
Low losses
High ripple current
High capacitance density
Long lifetime
Product Applications
These film capacitors are suitable for DC filtering and energy storage applications.
