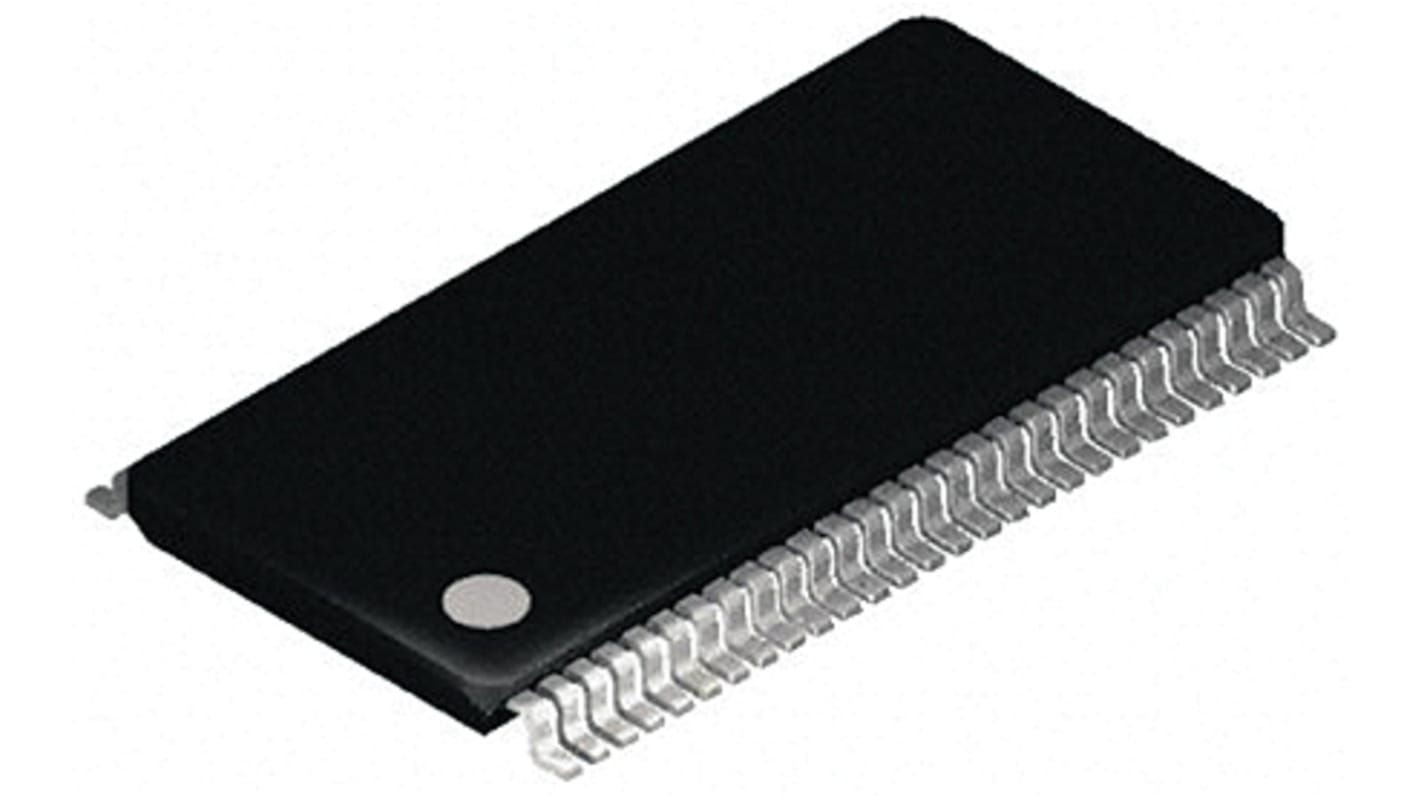

Texas Instruments 1.125kbit FIFO Memory, 56-Pin SSOP, SN74ALVC7813-25DL
- RS Stock No.:
- 732-1281
- Mfr. Part No.:
- SN74ALVC7813-25DL
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 732-1281
- Mfr. Part No.:
- SN74ALVC7813-25DL
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Memory Size | 1.125kbit | |
| Organisation | 64 x 18 bit | |
| Data Bus Width | 18bit | |
| Bus Directional | Uni-Directional | |
| Configuration | Dual | |
| Clock Frequency | 40MHz | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 56 | |
| Expansion Support | Yes | |
| Dimensions | 18.54 x 7.59 x 2.59mm | |
| Length | 18.54mm | |
| Width | 7.59mm | |
| Maximum Random Access Time | 15ns | |
| Minimum Operating Temperature | 0 °C | |
| Number of Bits per Word | 18bit | |
| Height | 2.59mm | |
| Minimum Operating Supply Voltage | 3 V | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Maximum Operating Temperature | +70 °C | |
| Number of Words | 64 | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Memory Size 1.125kbit | ||
Organisation 64 x 18 bit | ||
Data Bus Width 18bit | ||
Bus Directional Uni-Directional | ||
Configuration Dual | ||
Clock Frequency 40MHz | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 56 | ||
Expansion Support Yes | ||
Dimensions 18.54 x 7.59 x 2.59mm | ||
Length 18.54mm | ||
Width 7.59mm | ||
Maximum Random Access Time 15ns | ||
Minimum Operating Temperature 0 °C | ||
Number of Bits per Word 18bit | ||
Height 2.59mm | ||
Minimum Operating Supply Voltage 3 V | ||
Maximum Operating Supply Voltage 3.6 V | ||
Maximum Operating Temperature +70 °C | ||
Number of Words 64 | ||
- COO (Country of Origin):
- PH
74ALVC Family, Texas Instruments
Advanced Low-Voltage CMOS logic
Operating voltage: 1.65 to 3.6
Compatibility: Input CMOS, Output CMOS
Latch-up performance exceeds 250 mA per JESD 17
Operating voltage: 1.65 to 3.6
Compatibility: Input CMOS, Output CMOS
Latch-up performance exceeds 250 mA per JESD 17
74ALVC Family
