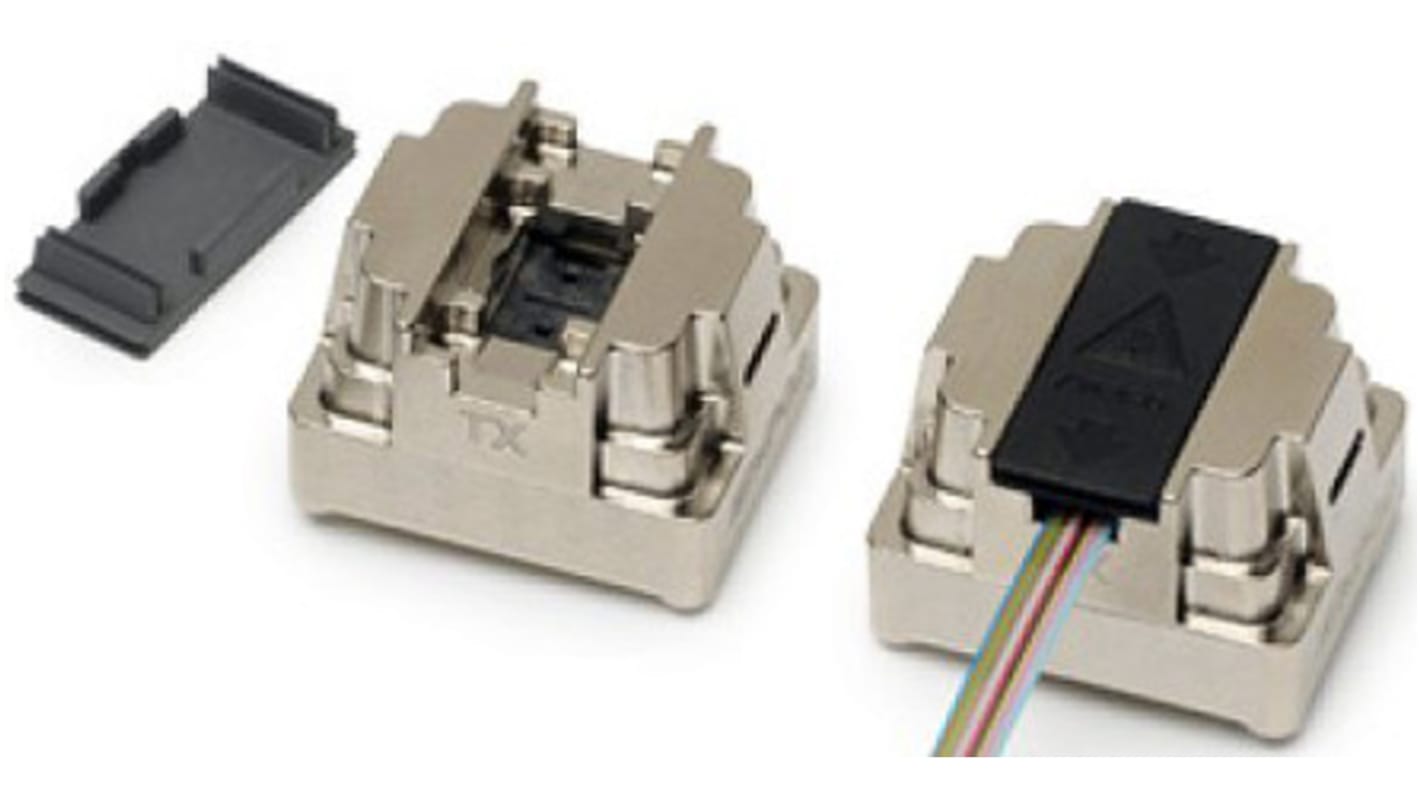

FIT-Foxconn AFBR-821FH1Z Fibre Optic Transceiver, MEG-Array Connector, 10.313 Gbit/s, 850nm MiniPOD

  • RS Stock No. 884-2127
  • Mfr. Part No. AFBR-821FH1Z
  • Brand FIT-Foxconn
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

AFBR-8x1FH1Z, MiniPOD™ 12x10G Transmitter and Receiver Module

The AFBR-811FxyZ and AFBR-821FxyZ are a set of 12-channel, pluggable, parallel fiber optics transmitter and receiver modules, optimized for short-range parallel multi-lane data communication applications.

Compliant to IEEE 802.3ba 100GbE (100GBASE-SR10 and nPPI) per lane
Compliant to 12xQDR Infiniband
Operates at 10.3125Gbps per channel with 64b/66b encoded data for 100GbE application and at 10Gbps with 8b/10b encoded data for IB-QDR application
High Aggregate bandwidth: 120Gbps per module
High density footprint size: 21.95 x 18.62 mm
Pin Clip-on Heat Sink attached
Links up to 100m at 10.3125Gbps

Part Number Description
AFBR-811FxyZ Flat Ribbon Jumper Cable, Transmitter Base
AFBR-821FxyZ Flat Ribbon Jumper Cable, Receiver Base

Fibre Optics, Avago Technologies

Specifications
Attribute Value
Maximum Data Rate 10.313 Gbit/s
Connector Shape Rectangular
Mounting Type Surface Mount
Dimensions 21.95 x 18.62 x 14.5mm
Connector Type MEG-Array
Peak Transmitter Wavelength 850nm
Height 14.5mm
Length 21.95mm
Package Type MiniPOD
Priced to Clear Yes
Fibre Size Range Maximum of 50 μm
Width 18.62mm
Series AFBR
14 In stock for FREE next working day delivery
Price Each
£ 130.88
(exc. VAT)
£ 157.06
(inc. VAT)
Units
Per unit
1 +
£130.88
