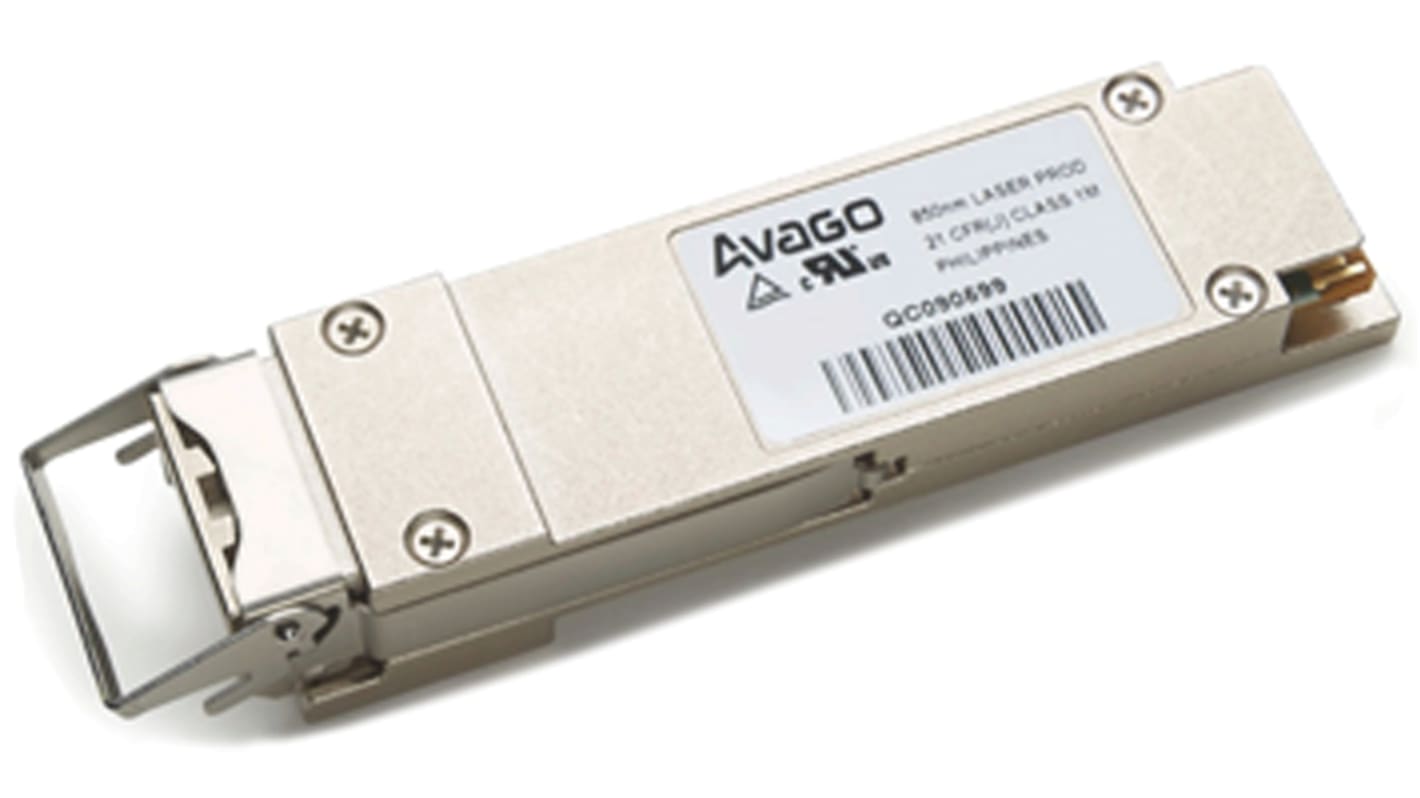

Broadcom AFBR-79EQDZ Fibre Optic Transceiver, MPO Connector, 10.3125GBd, 860nm 860nm 38-Pin
- RS Stock No.:
- 830-5035
- Mfr. Part No.:
- AFBR-79EQDZ
- Brand:
- Broadcom
Discontinued
- RS Stock No.:
- 830-5035
- Mfr. Part No.:
- AFBR-79EQDZ
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Maximum Data Rate | 10.3125GBd | |
| Connector Shape | Rectangular | |
| Receiver Jitter at Maximum Data Rate | 0.65 Ul | |
| Number of Pins | 38 | |
| Mounting Type | Panel Mount | |
| Dimensions | 71 x 18.35 x 12.9mm | |
| Connector Type | MPO | |
| Peak Transmitter Wavelength | 860nm | |
| Wavelength of Peak Sensitivity | 860nm | |
| Height | 12.9mm | |
| Length | 71mm | |
| Width | 18.35mm | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Maximum Data Rate 10.3125GBd | ||
Connector Shape Rectangular | ||
Receiver Jitter at Maximum Data Rate 0.65 Ul | ||
Number of Pins 38 | ||
Mounting Type Panel Mount | ||
Dimensions 71 x 18.35 x 12.9mm | ||
Connector Type MPO | ||
Peak Transmitter Wavelength 860nm | ||
Wavelength of Peak Sensitivity 860nm | ||
Height 12.9mm | ||
Length 71mm | ||
Width 18.35mm | ||
- COO (Country of Origin):
- PH
AFBR-7xxx Series SFP+ Transceivers
The AFBR-7xxx 850nm SFP+ Transceiver enables 10Gb Ethernet equipment designs with very high port density. For the design to be compliant with the 10GBASE-SR / SW standard, the transceiver uses VCSEL and PIN Detector technology.
Typical power dissipation 600 mW
Full digital diagnostic management interface
Flexibility in data rate selection through hardware or software control
Full digital diagnostic management interface
Flexibility in data rate selection through hardware or software control
Fibre Optics, Avago Technologies
