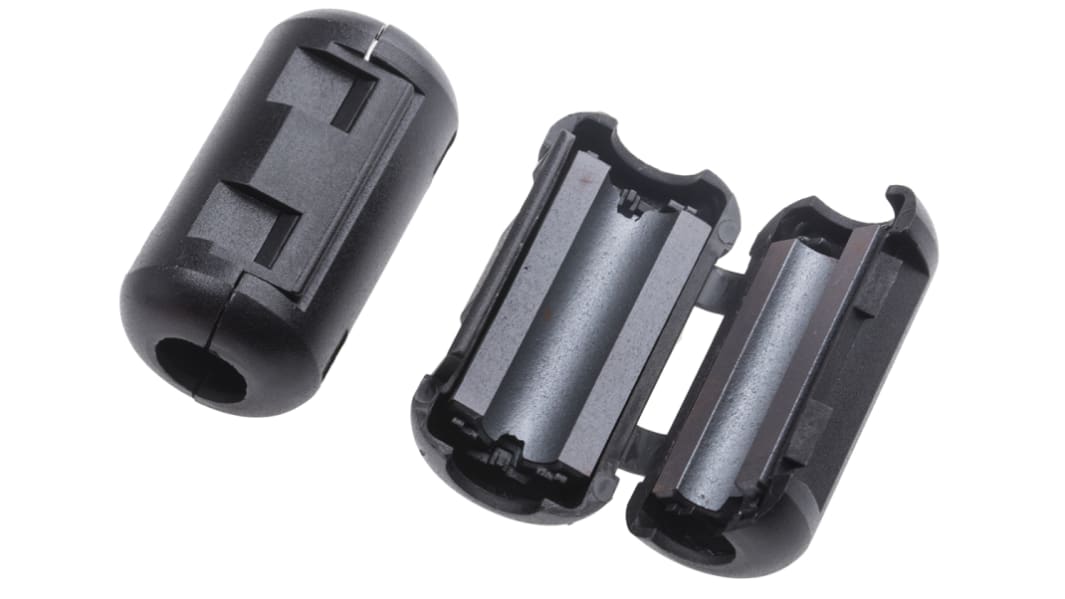

RS PRO Openable Ferrite Clamp, 19.5 x 35 x 18mm, For Computer Peripherals, Digital TV, Internal & External Power

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro Hinged Ferrite Sleeves - Noise Filters

This range of ferrite sleeves from our trusted RS Pro brand features a hinged clamp. Construction with precision formed smooth surfaces prevents any damage from occurring to cables or wire insulation. With internal dimensions between 1.9 mm and 35 mm for the radius, and with different shapes available, there is a ferrite for every application.

Product Application Information

Suitable applications for these ferrite sleeves include power cables (both internal and external), printers and computer peripherals. Other recommended applications include digital televisions and monitors.

Split Ferrite Rings

These split ferrite cores reduce the electromagnetic interference from being induced in or radiated from data and power cables. High attenuation ratings are achieved with the housing design and the special process steps during the ferrite manufacture. The special snap lock makes the ferrite sleeve suitable for use with a variety of cable diameters and once the split ferrite is locked it cannot be opened accidentally.The outer housing is designed to protect the halves of the core from breakage and ensures simple assembly on to cables that are already installed or which have been fitted with connectors. Fixing to the cable with glue or cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering and office machines.

Specifications
Attribute Value
Type Clamp Filter
Application Computer Peripherals, Digital TV, Internal & External Power Cables, Monitors, Printers
Material Ferrite
Impedance at 25 MHz 80
Openable Yes
Impedance at 100 MHz 130Ω
Outer Dimensions 19.5 x 35 x 18mm
Aperture Diameter 9mm
Number of Apertures 1
Outer Depth 35mm
Outer Height 18mm
Outer Width 19.5mm
442 In stock - FREE next working day delivery available
Price Each (In a Pack of 2)
£ 1.365
(exc. VAT)
£ 1.638
(inc. VAT)
Units
Per unit
Per Pack*
2 - 38
£1.365
£2.73
40 +
£1.295
£2.59
*price indicative
