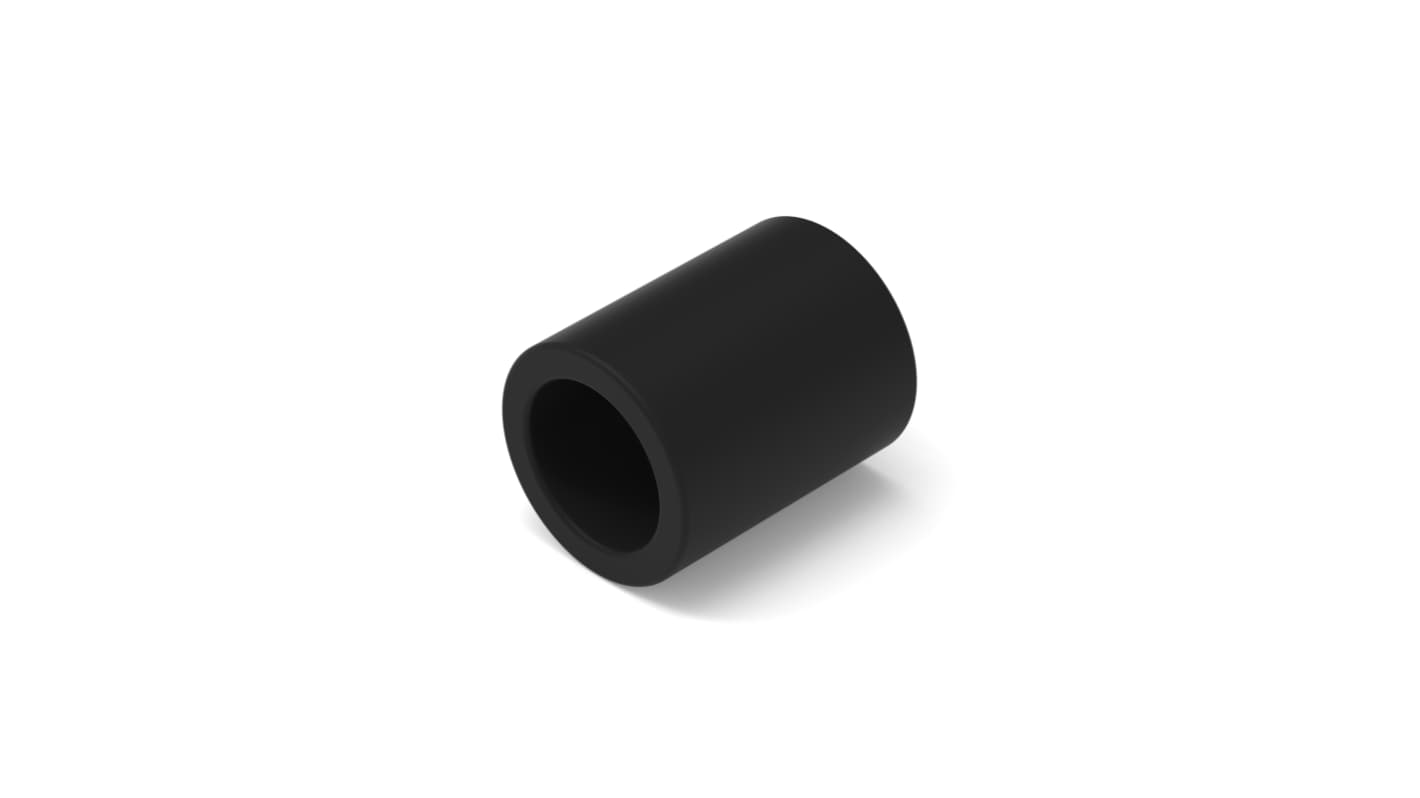

Wurth Elektronik Ferrite Bead 8 mm 8 mm (EMI Suppression Axial Ferrite Bead), 113 Ω impedance at 100 MHz
- RS Stock No.:
- 332-480
- Mfr. Part No.:
- 742700752
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tray of 99 units)*
£49.401
(exc. VAT)
£59.301
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3,465 unit(s) shipping from 20 April 2026
- Plus 990 unit(s) shipping from 21 April 2026
- Plus 1,089 unit(s) shipping from 07 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 99 - 891 | £0.499 | £49.40 |
| 990 - 1881 | £0.474 | £46.93 |
| 1980 + | £0.439 | £43.46 |
*price indicative
- RS Stock No.:
- 332-480
- Mfr. Part No.:
- 742700752
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Ferrite Bead | |
| Impedance at 100 MHz | 113Ω | |
| Sub Type | EMI Suppression Axial Ferrite Bead | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 16mm | |
| Height | 8mm | |
| Standards/Approvals | RoHS Approval Compliant (2011/65/EU&2015/863), REACh Approval Conform or declared ((EC) 1907/2006), Halogen Free Conform (JEDEC JS709B), Halogen Free Conform (IEC 61249-2-21) | |
| Depth | 16mm | |
| Automotive Standard | No | |
| Material | 7W850 | |
| Application | Multiconductor Wire, Wrapping Cable, Wire, Coaxial Cable | |
| Series | WE-AFB-EMI | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Ferrite Bead | ||
Impedance at 100 MHz 113Ω | ||
Sub Type EMI Suppression Axial Ferrite Bead | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 125°C | ||
Length 16mm | ||
Height 8mm | ||
Standards/Approvals RoHS Approval Compliant (2011/65/EU&2015/863), REACh Approval Conform or declared ((EC) 1907/2006), Halogen Free Conform (JEDEC JS709B), Halogen Free Conform (IEC 61249-2-21) | ||
Depth 16mm | ||
Automotive Standard No | ||
Material 7W850 | ||
Application Multiconductor Wire, Wrapping Cable, Wire, Coaxial Cable | ||
Series WE-AFB-EMI | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik EMI Suppression Axial Ferrite Bead is a versatile noise-suppression solution for high-frequency applications. It offers effective EMI reduction through its robust ferrite material, with high impedance across multiple frequencies.
Evaluated with AWG26
RoHS compliant
Halogen Free and REACH approved
Operating temperature is -25 degree Celsius to 125 degree Celsius
