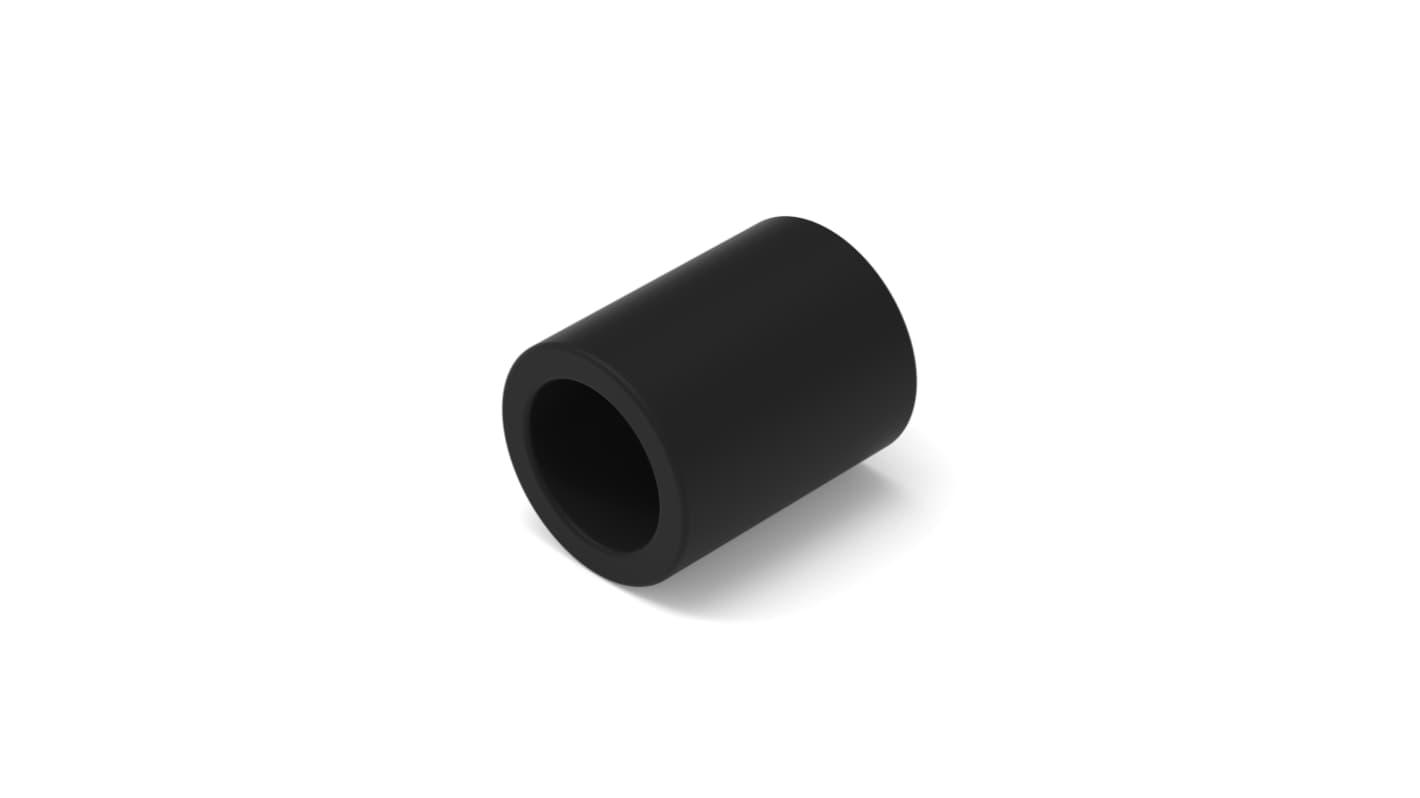

Wurth Elektronik Ferrite Bead 15.5 mm 15.5 mm (EMI Suppression Axial Ferrite Bead), 125 Ω impedance at 25 MHz, 188 Ω
- RS Stock No.:
- 332-448
- Mfr. Part No.:
- 74270096
- Brand:
- Wurth Elektronik
Subtotal (1 tray of 63 units)*
£233.289
(exc. VAT)
£279.972
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 756 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 63 + | £3.703 | £233.29 |
*price indicative
- RS Stock No.:
- 332-448
- Mfr. Part No.:
- 74270096
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Ferrite Bead | |
| Impedance at 25 MHz | 125Ω | |
| Packaging | Tray & Carton | |
| Impedance at 100 MHz | 188Ω | |
| Sub Type | EMI Suppression Axial Ferrite Bead | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS Approval Compliant (2011/65/EU&2015/863), REACh Approval Conform | |
| Depth | 26mm | |
| Height | 15.5mm | |
| Length | 28.5mm | |
| Diameter | 15.5 mm | |
| Material | 4W620 | |
| Application | Wrapping Cable, Wire, Multiconductor Wire, Coaxial Cable | |
| Automotive Standard | No | |
| Series | WE-AFB EMI | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Ferrite Bead | ||
Impedance at 25 MHz 125Ω | ||
Packaging Tray & Carton | ||
Impedance at 100 MHz 188Ω | ||
Sub Type EMI Suppression Axial Ferrite Bead | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS Approval Compliant (2011/65/EU&2015/863), REACh Approval Conform | ||
Depth 26mm | ||
Height 15.5mm | ||
Length 28.5mm | ||
Diameter 15.5 mm | ||
Material 4W620 | ||
Application Wrapping Cable, Wire, Multiconductor Wire, Coaxial Cable | ||
Automotive Standard No | ||
Series WE-AFB EMI | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik EMI Suppression Axial Ferrite Bead is a versatile noise-suppression solution for high-frequency applications. It offers effective EMI reduction through its robust ferrite material, with high impedance across multiple frequencies.
Evaluated with AWG26
RoHS compliant
Halogen Free and REACH approved
Operating temperature is -25 degree Celsius to 125 degree Celsius
