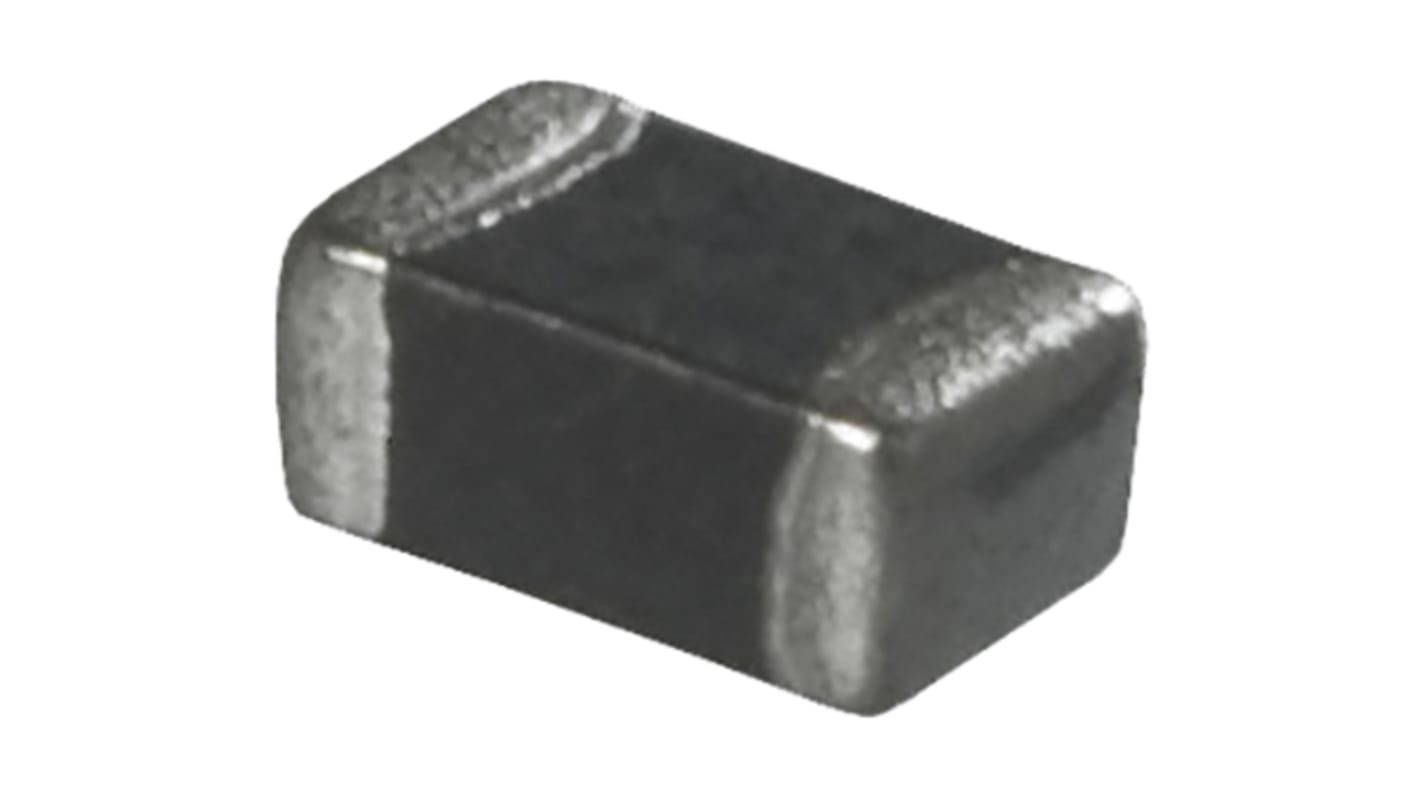

Laird Technologies Ferrite Bead (Chip Bead), 2 x 1.25 x 0.9mm (0805 (2012M)), 135Ω impedance at 25 MHz, 300Ω impedance
- RS Stock No.:
- 888-3254
- Mfr. Part No.:
- MI0805L301R-10
- Brand:
- Laird Technologies
Discontinued product
- RS Stock No.:
- 888-3254
- Mfr. Part No.:
- MI0805L301R-10
- Brand:
- Laird Technologies
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Laird Chip Beads for Signal Filtering
These Laird ferrite chip beads have been professionally designed to provide cost-effective EMI filtering of differential mode noise for power lines, general signal lines and high speed signal lines. The ferrite chip beads have an ultra-compact design and have a highly reliable multilayer monolithic construction.
Up to 10A (I MAX) continuous operation capability
Compact, multilayer monolithic construction
Broad-band, low frequency and high frequency available
Compact, multilayer monolithic construction
Broad-band, low frequency and high frequency available
Specifications
Attribute | Value |
|---|---|
| Package Type | 0805 (2012M) |
| Impedance at 25 MHz | 135Ω |
| Impedance at 100 MHz | 300Ω |
| Impedance at 500 MHz | 271Ω |
| Impedance at 1 GHz | 147Ω |
| Current Rating | 2A |
| Type | Chip Bead |
| Dimensions | 2 x 1.25 x 0.9mm |
| Length | 2mm |
| Depth | 1.25mm |
| Height | 0.9mm |
| Maximum DC Resistance | 60mΩ |
| Application | Automotive, DSC, Energy and Utilities, General Electronics, Laptop, LCD-TV, Networking Devices, PC, Portable Devices etc., Security |
| Series | MI |
| Material | Ferrite |
