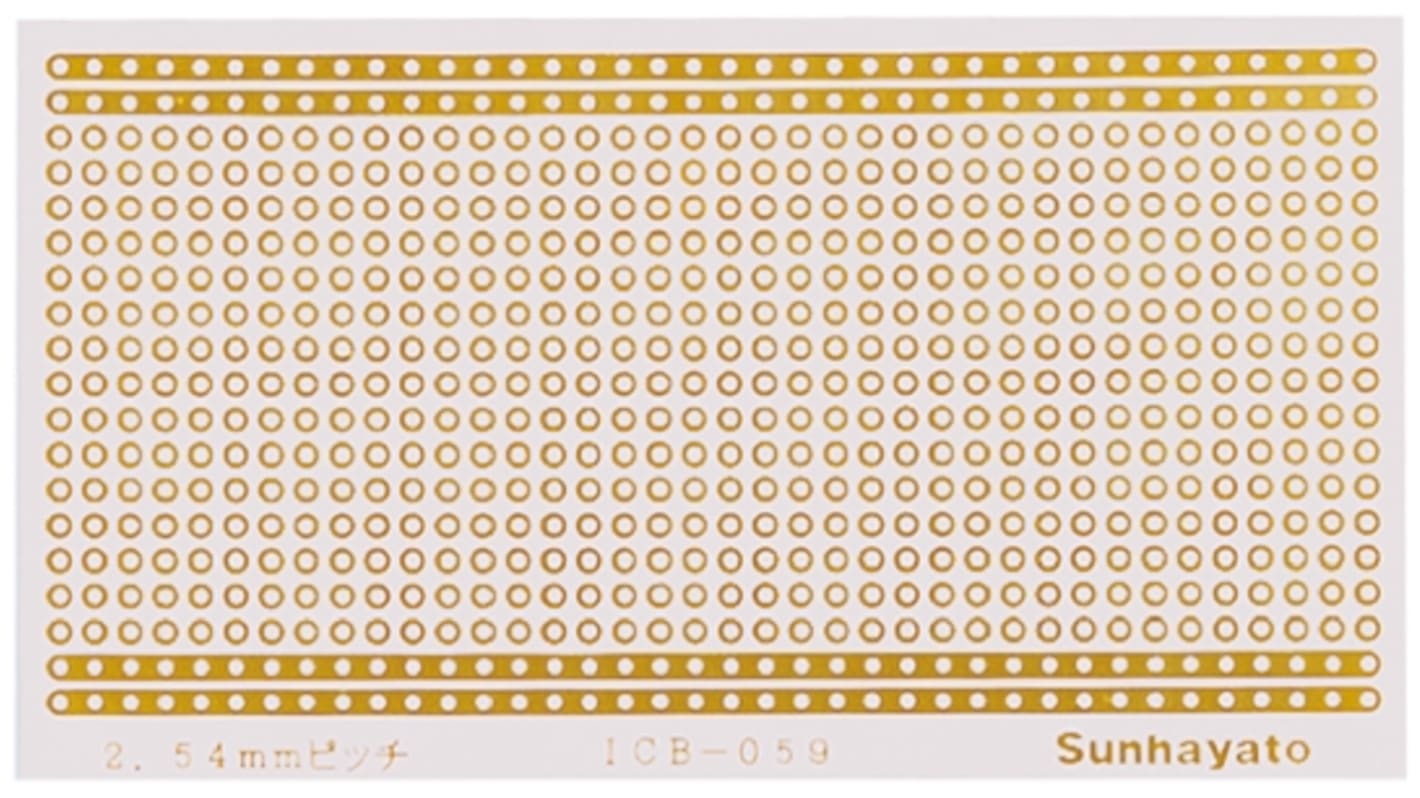

ICB-059, Single Sided Extender Board Universal Board FR4 100 x 55 x 0.1mm
- RS Stock No.:
- 453-8795
- Mfr. Part No.:
- ICB-059
- Brand:
- Sunhayato
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 453-8795
- Mfr. Part No.:
- ICB-059
- Brand:
- Sunhayato
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunhayato | |
| Type | Universal Board | |
| Base Material | Epoxy Glass Fabric Laminate | |
| Number of Sides | 1 | |
| Dimensions | 100 x 55 x 0.1mm | |
| FR Material Grade | FR4 | |
| Length | 100mm | |
| Thickness | 0.1mm | |
| Width | 55mm | |
Select all | ||
|---|---|---|
Brand Sunhayato | ||
Type Universal Board | ||
Base Material Epoxy Glass Fabric Laminate | ||
Number of Sides 1 | ||
Dimensions 100 x 55 x 0.1mm | ||
FR Material Grade FR4 | ||
Length 100mm | ||
Thickness 0.1mm | ||
Width 55mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
Universal/Ground Type Board
Finish is gold plating (nickel substrate)
The universal board type is curved, facilitating use as a flexible board
The ground type is useful when adding a universal board power supply line
The desired size is simply cut-out with scissors or cutters
The universal board type is curved, facilitating use as a flexible board
The ground type is useful when adding a universal board power supply line
The desired size is simply cut-out with scissors or cutters
Note
Sealed board does not include adhesive
