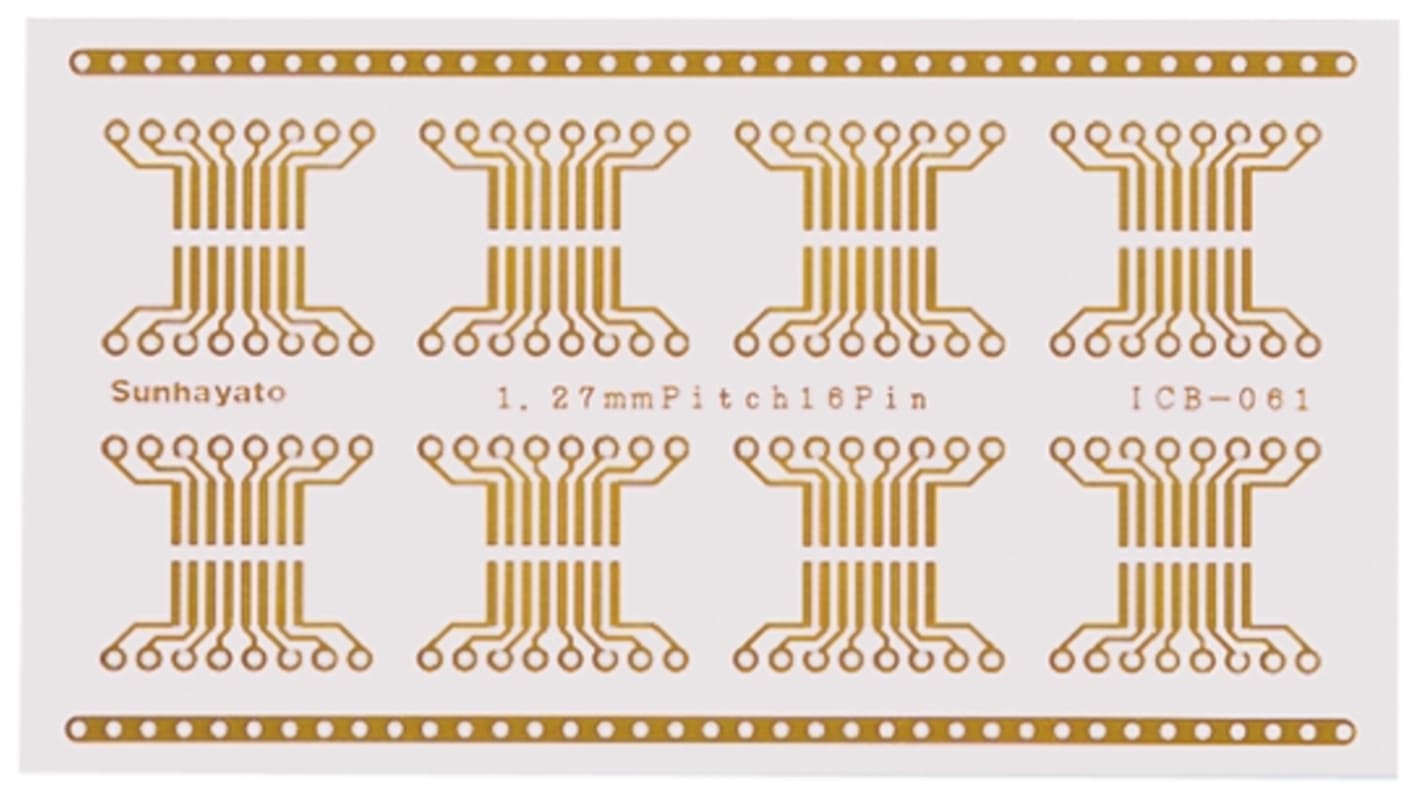

ICB-061, 16 Way Single Sided Extender Board Converter Board FR4 100 x 55 x 0.1mm
- RS Stock No.:
- 453-8745
- Mfr. Part No.:
- ICB-061
- Brand:
- Sunhayato
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 453-8745
- Mfr. Part No.:
- ICB-061
- Brand:
- Sunhayato
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunhayato | |
| Type | Converter Board | |
| Number of Contacts | 16 | |
| Base Material | Epoxy Glass Fabric Laminate | |
| Number of Sides | 1 | |
| Dimensions | 100 x 55 x 0.1mm | |
| FR Material Grade | FR4 | |
| Length | 100mm | |
| Thickness | 0.1mm | |
| Width | 55mm | |
Select all | ||
|---|---|---|
Brand Sunhayato | ||
Type Converter Board | ||
Number of Contacts 16 | ||
Base Material Epoxy Glass Fabric Laminate | ||
Number of Sides 1 | ||
Dimensions 100 x 55 x 0.1mm | ||
FR Material Grade FR4 | ||
Length 100mm | ||
Thickness 0.1mm | ||
Width 55mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
SOP Conversion Board
Finish is gold plating (nickel substrate)
The surface mounted IC can be inserted into the universal board just by cutting and attaching
The desired size is cut-out with scissors or cutters
1.27mm pitch SOP IC conversion
The surface mounted IC can be inserted into the universal board just by cutting and attaching
The desired size is cut-out with scissors or cutters
1.27mm pitch SOP IC conversion
Note
Sealed board does not include adhesive
