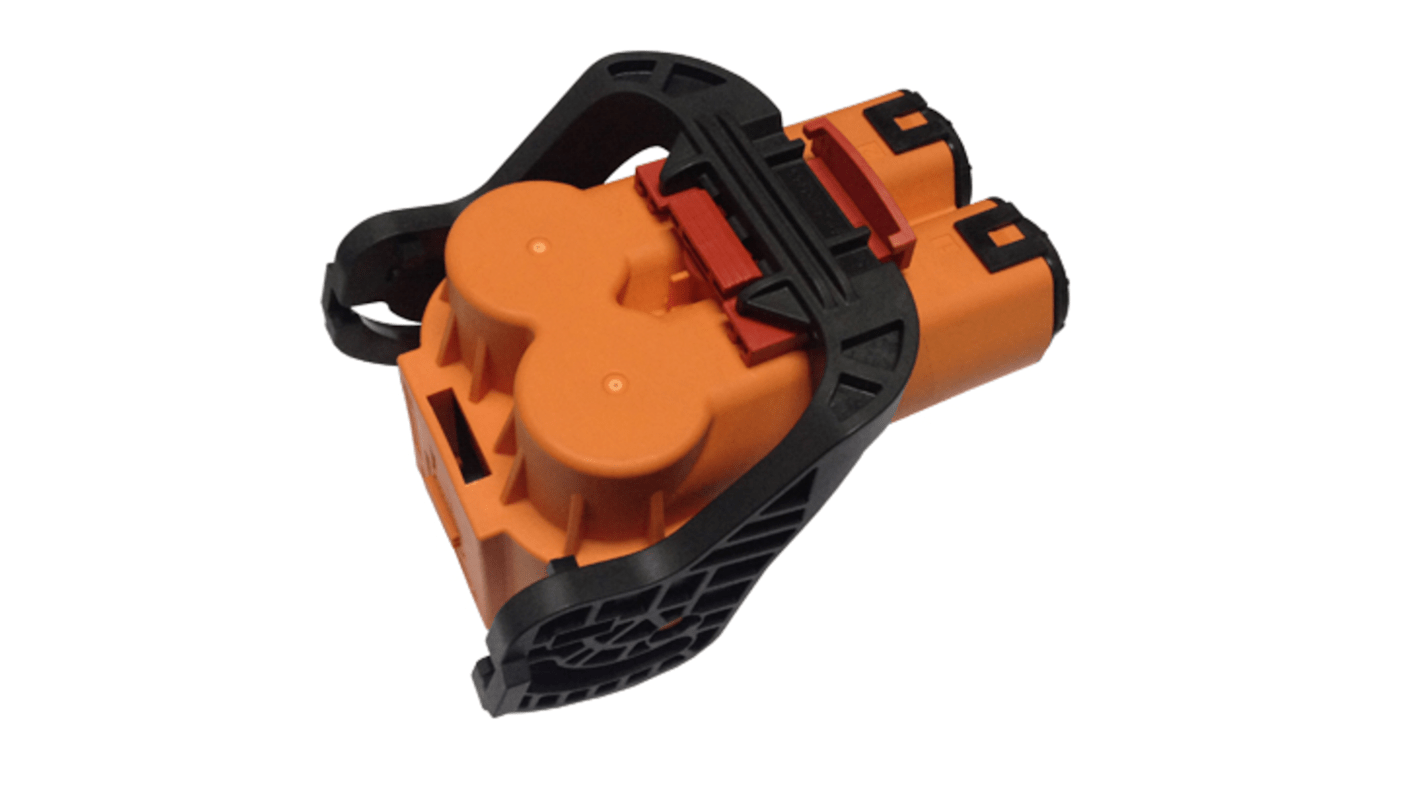

Amphenol Industrial, ExcelMate HVSL100 PowerLok Plug with HVIL EV Connector Female, 250A
- RS Stock No.:
- 239-9492
- Mfr. Part No.:
- HVSL1000082A170
- Brand:
- Amphenol Industrial
Subtotal (1 bag of 10 units)*
£1,285.18
(exc. VAT)
£1,542.22
(inc. VAT)
FREE delivery for orders over £60.00
- 30 unit(s) ready to ship
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 10 | £128.518 | £1,285.18 |
| 20 + | £124.919 | £1,249.19 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 239-9492
- Mfr. Part No.:
- HVSL1000082A170
- Brand:
- Amphenol Industrial
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Product Type | EV Connector | |
| Series | ExcelMate HVSL100 | |
| Current | 250A | |
| Connector Type | PowerLok Plug with HVIL | |
| Number of Rows | 1 | |
| Number of Contacts | 2 | |
| Wire Size | 70mm² | |
| Operating Voltage | 1000V | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -40°C | |
| Connector Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Orientation | Straight | |
| Contact Gender | Female | |
| Height | 77mm | |
| Width | 91mm | |
| Depth | 146mm | |
| Standards/Approvals | RoHS, UL | |
| IP Rating | IP69K | |
| Mount Type | Panel | |
| Better World Product | Yes | |
| Better World Claim | Renewable Energy Solution | |
| Colour | Orange | |
| Pin Diameter | 10mm | |
| Housing Material | Thermoplastic | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Product Type EV Connector | ||
Series ExcelMate HVSL100 | ||
Current 250A | ||
Connector Type PowerLok Plug with HVIL | ||
Number of Rows 1 | ||
Number of Contacts 2 | ||
Wire Size 70mm² | ||
Operating Voltage 1000V | ||
Termination Type Crimp | ||
Minimum Operating Temperature -40°C | ||
Connector Gender Female | ||
Maximum Operating Temperature 125°C | ||
Orientation Straight | ||
Contact Gender Female | ||
Height 77mm | ||
Width 91mm | ||
Depth 146mm | ||
Standards/Approvals RoHS, UL | ||
IP Rating IP69K | ||
Mount Type Panel | ||
Better World Product Yes | ||
Better World Claim Renewable Energy Solution | ||
Colour Orange | ||
Pin Diameter 10mm | ||
Housing Material Thermoplastic | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- CN
