Amphenol Industrial, RADLOK Receptacle EV Connector
- RS Stock No.:
- 239-0439
- Mfr. Part No.:
- RL9100-201-F1
- Brand:
- Amphenol Industrial
Subtotal (1 box of 100 units)*
£1,376.10
(exc. VAT)
£1,651.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 200 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
100 + | £13.761 | £1,376.10 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 239-0439
- Mfr. Part No.:
- RL9100-201-F1
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Industrial | |
Range | RADLOK 300 Connectors | |
Series | RADLOK | |
Connector Type | Receptacle | |
Better World Product | Yes | |
Better World Claim | Renewable energy solution | |
Select all | ||
---|---|---|
Brand Amphenol Industrial | ||
Range RADLOK 300 Connectors | ||
Series RADLOK | ||
Connector Type Receptacle | ||
Better World Product Yes | ||
Better World Claim Renewable energy solution | ||
- COO (Country of Origin):
- CN

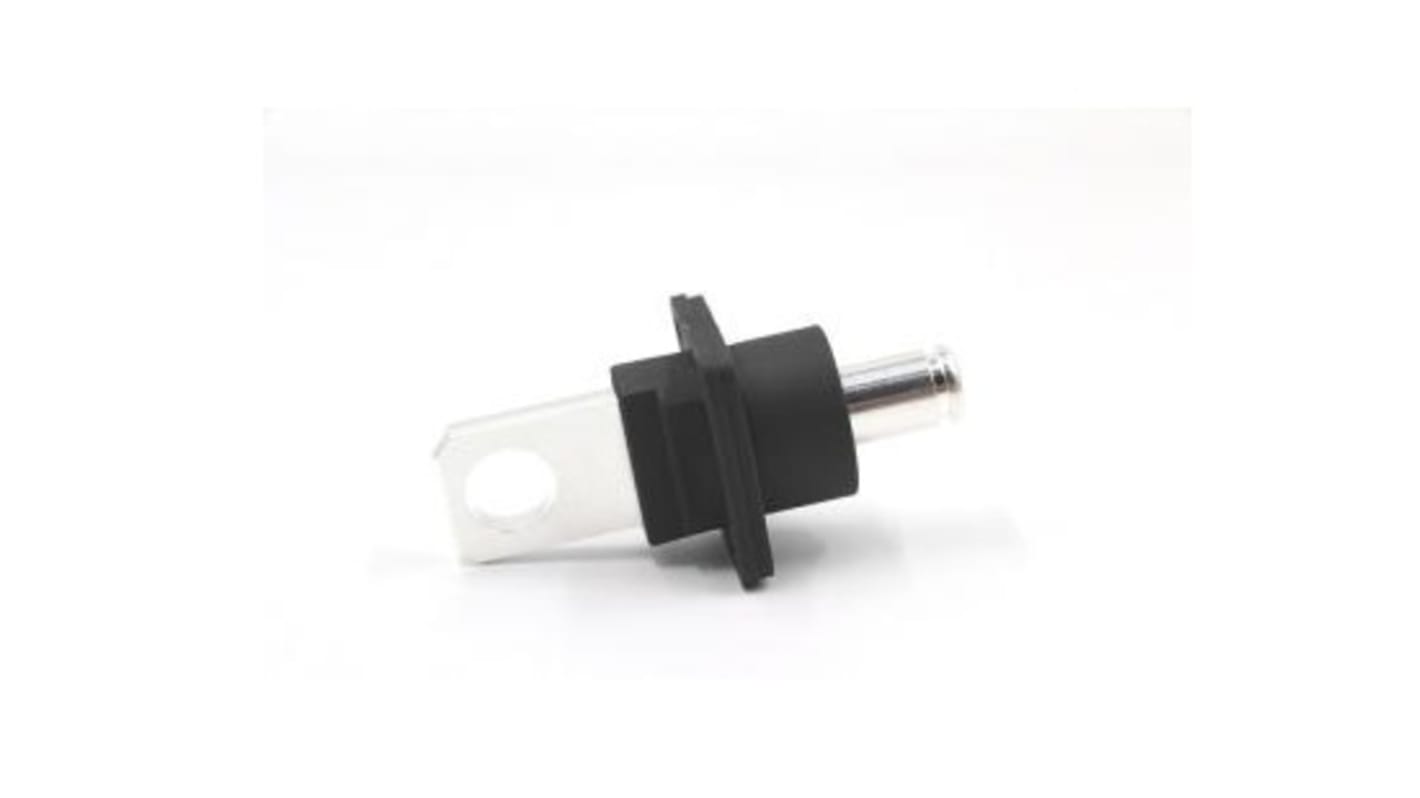

The Amphenol Industrial Radlok series 1 pole receptacle screw pin with current rating of 300 A and rated voltage of 1000 V. It is a compact, metal-shell interconnect solution made for electric and hybrid transportation technologies. Equipped with automatic secondary lock, HVIL contacts, shielding and several mechanical coding options which offers maximum safety.
Diameter 10mm Radlok pin
Feed thru pin to lug
Male receptacle
Silver plating & in black colour
Busbar termination
Operating temperature of -40°C to +125°C
Feed thru pin to lug
Male receptacle
Silver plating & in black colour
Busbar termination
Operating temperature of -40°C to +125°C
