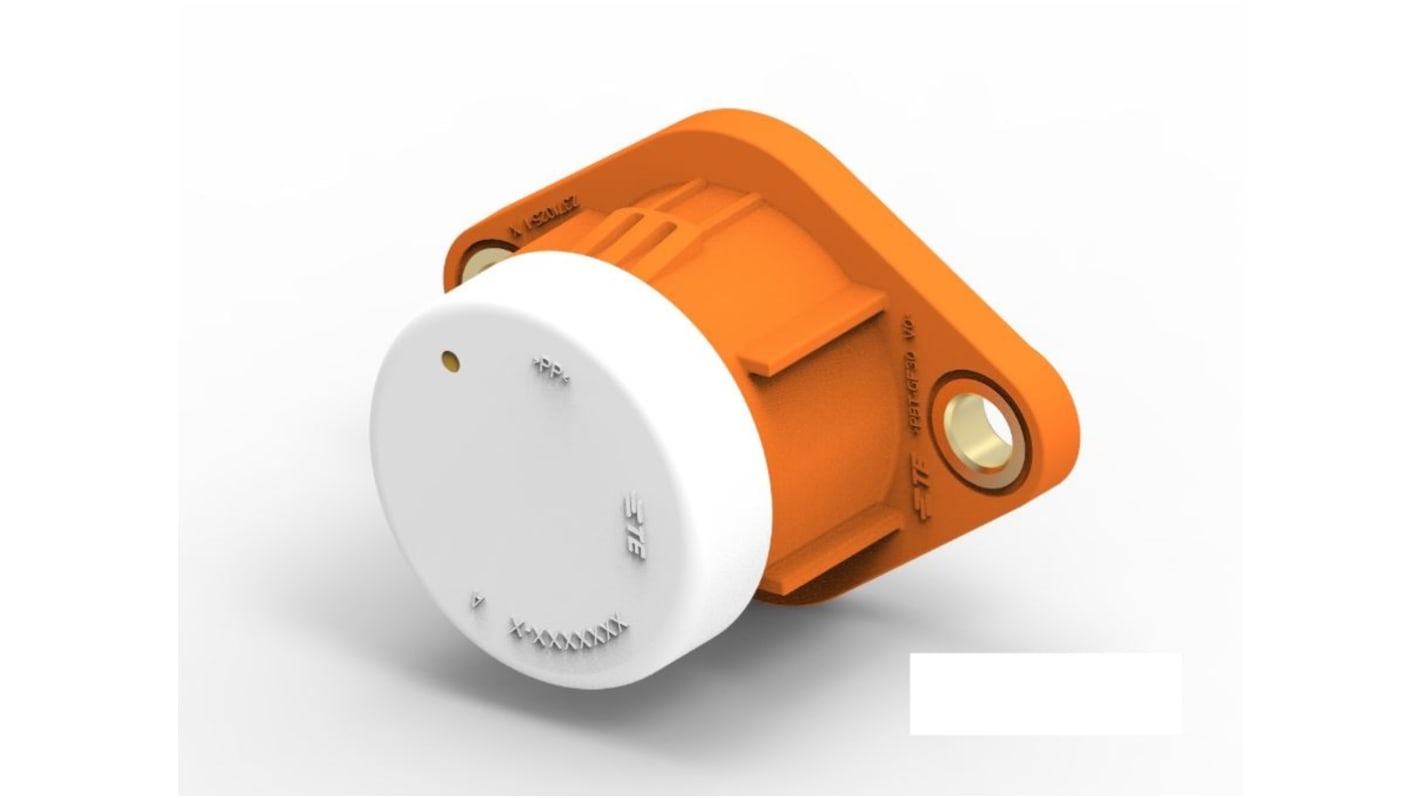

TE Connectivity, IPT-HD EV Connector Male/Female, 300A
- RS Stock No.:
- 238-0445
- Mfr. Part No.:
- 2371019-1
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 238-0445
- Mfr. Part No.:
- 2371019-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | EV Connector | |
| Series | IPT-HD | |
| Current | 300A | |
| Number of Rows | 1 | |
| Number of Contacts | 1 | |
| Application | Automotive Connector | |
| Operating Voltage | 1000V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Connector Gender | Male/Female | |
| Maximum Operating Temperature | 105°C | |
| Orientation | Straight | |
| Contact Gender | Male/Female | |
| Standards/Approvals | No | |
| Depth | 45.9mm | |
| Height | 43mm | |
| Width | 63.7mm | |
| Better World Product | Yes | |
| Colour | Orange | |
| Better World Claim | Renewable Energy Solution | |
| IP Rating | IP69, IP67, IP6K9K | |
| Mount Type | Panel | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type EV Connector | ||
Series IPT-HD | ||
Current 300A | ||
Number of Rows 1 | ||
Number of Contacts 1 | ||
Application Automotive Connector | ||
Operating Voltage 1000V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Connector Gender Male/Female | ||
Maximum Operating Temperature 105°C | ||
Orientation Straight | ||
Contact Gender Male/Female | ||
Standards/Approvals No | ||
Depth 45.9mm | ||
Height 43mm | ||
Width 63.7mm | ||
Better World Product Yes | ||
Colour Orange | ||
Better World Claim Renewable Energy Solution | ||
IP Rating IP69, IP67, IP6K9K | ||
Mount Type Panel | ||
- COO (Country of Origin):
- CN
The TE Connectivity 1 POS RING TONGUE HSG ASSY can withstand extreme temperatures and engine level vibrations with an operating temperature range of -40°C to +125°C. TE Connectivity’s (TE) new IPT-HD power bolt high-voltage connector offers a new shielding design, providing low-contact resistance and thicker options for conductor cross-sections used in MCU (Motor Control Unit), e-axle, and e-motor applications for renewable energy vehicles operating in demanding environments and it Provides low contact resistance even after the vibration with 1-, 2- and 3- positions. The IPT-HD power bolt connector with an ever-increasing demand for low-contact resistance and flexible assembly options for a wide range of diverse applications.
Low-contact resistance shielding
IP67, IP68 and IP6K9K sealing rated
Quick, easy machining of mounting holes
ISO Compliant/LV216
MCU, E-axle, and E-motor applications
The IPT-HD power bolt series comes in 50 mm2 and 70 mm2 conductor cross-sections, with a 95 mm2 option available soon. In addition to the traditional integral wiring harness assembly and an easy machining process for mounting holes, the IPT-HD power bolt connector series provides a separate, single wiring harness for increased assembly flexibility.
