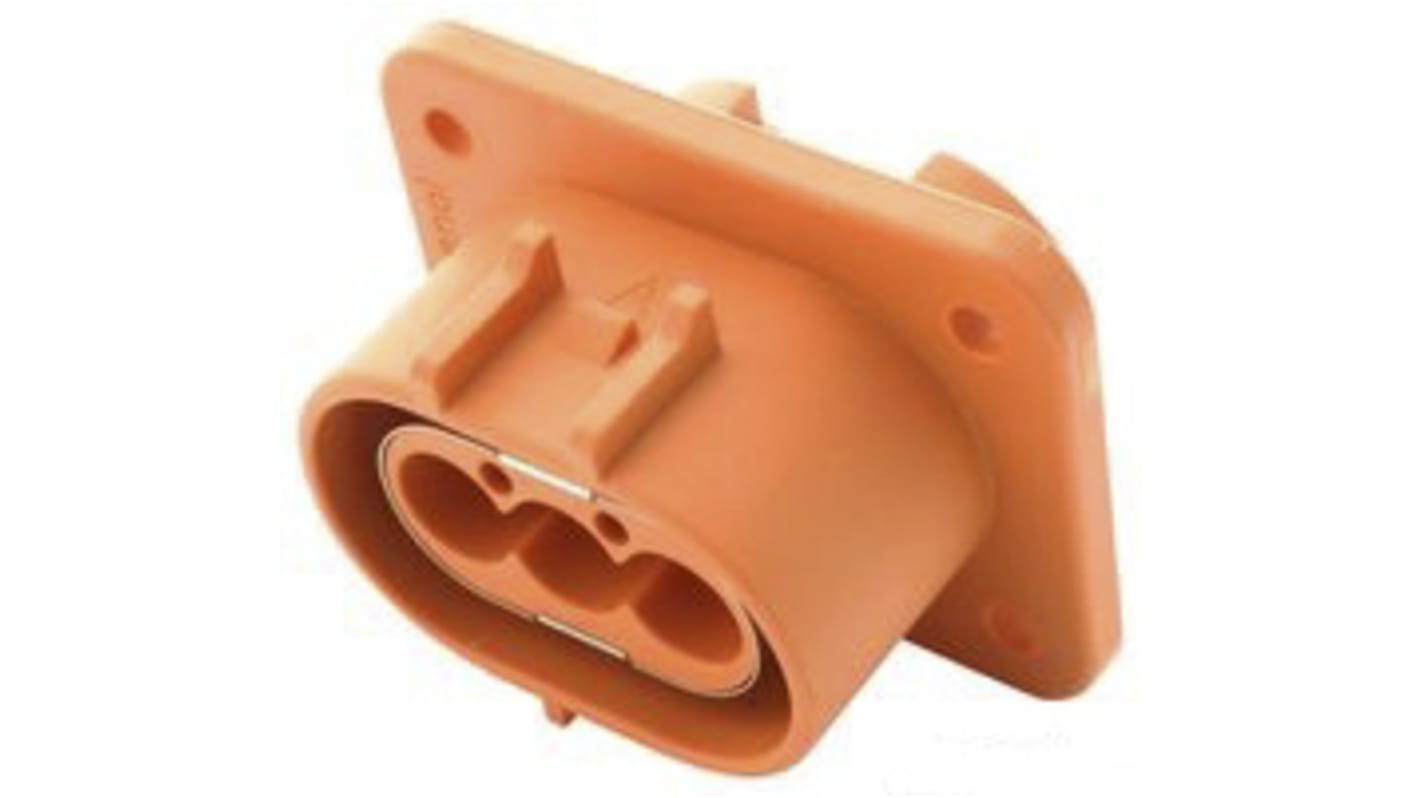

Amphenol Industrial, Epower Lite RADSOK Receptacle with HVIL EV Connector Socket, 7.5 to 70A
- RS Stock No.:
- 124-4083
- Mfr. Part No.:
- ELR3A04 / C10-737485-3AP4
- Brand:
- Amphenol Industrial
Subtotal (1 unit)*
£17.99
(exc. VAT)
£21.59
(inc. VAT)
FREE delivery for orders over £50.00
- 100 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £17.99 |
| 5 - 9 | £17.11 |
| 10 + | £16.73 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 124-4083
- Mfr. Part No.:
- ELR3A04 / C10-737485-3AP4
- Brand:
- Amphenol Industrial
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Range | RADSOK | |
| Series | Epower Lite | |
| Connector Type | RADSOK Receptacle with HVIL | |
| Number of Rows | 1 | |
| Number of Contacts | 3 | |
| Wire Size | 10 mm² | |
| Current Rating | 7.5 to 70A | |
| Operating Voltage | 800V | |
| Connector Gender | Female | |
| Contact Gender | Male | |
| Orientation | Straight | |
| Key Type | A | |
| Termination Method | Crimp | |
| Better World Product | Yes | |
| Mounting Type | Panel Mount | |
| Colour | Orange | |
| IP Rating | IP67 | |
| Better World Claim | Renewable energy solution | |
| Standards Met | IEC 60529, UL 94 V-0 | |
| Width | 60mm | |
| Pin Diameter | 3.6mm | |
| Maximum Operating Temperature | +125°C | |
| For Use With | 3 Position ePower-Lite Plug with HVIL | |
| Height | 45mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 41mm | |
| Applications | EV/HEV | |
Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Range RADSOK | ||
Series Epower Lite | ||
Connector Type RADSOK Receptacle with HVIL | ||
Number of Rows 1 | ||
Number of Contacts 3 | ||
Wire Size 10 mm² | ||
Current Rating 7.5 to 70A | ||
Operating Voltage 800V | ||
Connector Gender Female | ||
Contact Gender Male | ||
Orientation Straight | ||
Key Type A | ||
Termination Method Crimp | ||
Better World Product Yes | ||
Mounting Type Panel Mount | ||
Colour Orange | ||
IP Rating IP67 | ||
Better World Claim Renewable energy solution | ||
Standards Met IEC 60529, UL 94 V-0 | ||
Width 60mm | ||
Pin Diameter 3.6mm | ||
Maximum Operating Temperature +125°C | ||
For Use With 3 Position ePower-Lite Plug with HVIL | ||
Height 45mm | ||
Minimum Operating Temperature -40°C | ||
Depth 41mm | ||
Applications EV/HEV | ||
- COO (Country of Origin):
- CN
ePower-Lite Connector, A Coding
Using RADSOK technology, the low-resistance connector features higher amperage, lower T-rise and voltage drop. With a compact design and small footprint, the ePower-Lite is ideal for EV and Hybrid applications.
Features and Benefits
• A-Coding
• Durability of over 100 mating cycles
• Waterproof: IP67
• Touch Proof: IEC 60529
• Flammability: UL 94V-0
