Sync Energy EV Charging Point Type 2 240V dc 253 V dc, 32 A
- RS Stock No.:
- 270-0073
- Mfr. Part No.:
- EVT77G-02
- Brand:
- Sync Energy
Bulk discount available
Subtotal (1 unit)*
£622.03
(exc. VAT)
£746.44
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £622.03 |
| 5 - 9 | £603.36 |
| 10 - 24 | £584.70 |
| 25 - 49 | £566.05 |
| 50 + | £547.38 |
*price indicative
- RS Stock No.:
- 270-0073
- Mfr. Part No.:
- EVT77G-02
- Brand:
- Sync Energy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sync Energy | |
| Product Type | EV Charging Point | |
| Output Power | 7.4kW | |
| Maximum Output Voltage | 253V dc | |
| Output Connector Type | Type 2 | |
| Output Current | 32A | |
| Length | 139mm | |
| Width | 204 mm | |
| Depth | 260mm | |
| Series | EVT77G | |
| Minimum Operating Temperature | -25°C | |
| Standards/Approvals | BS EN62196, CE, IEC61851-1, DEKRA, EN 300 330, IEC 62955, UKCA, IP55 / IK10, the ELECTRIC VEHICLES (SMART CHARGE POINTS) REGULATIONS 2021 INCLUDING SCHEDULE 1, EN 301 489-3, EN301 511, EMC COMPLIANT, IC 61851-21-2, IEC61439-7, EN 301 908-1/2/13 | |
| Maximum Operating Temperature | 40°C | |
| Maximum Input Voltage | 240V dc | |
| Minimum Input Voltage | 220V | |
| Select all | ||
|---|---|---|
Brand Sync Energy | ||
Product Type EV Charging Point | ||
Output Power 7.4kW | ||
Maximum Output Voltage 253V dc | ||
Output Connector Type Type 2 | ||
Output Current 32A | ||
Length 139mm | ||
Width 204 mm | ||
Depth 260mm | ||
Series EVT77G | ||
Minimum Operating Temperature -25°C | ||
Standards/Approvals BS EN62196, CE, IEC61851-1, DEKRA, EN 300 330, IEC 62955, UKCA, IP55 / IK10, the ELECTRIC VEHICLES (SMART CHARGE POINTS) REGULATIONS 2021 INCLUDING SCHEDULE 1, EN 301 489-3, EN301 511, EMC COMPLIANT, IC 61851-21-2, IEC61439-7, EN 301 908-1/2/13 | ||
Maximum Operating Temperature 40°C | ||
Maximum Input Voltage 240V dc | ||
Minimum Input Voltage 220V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
EVT77G-02

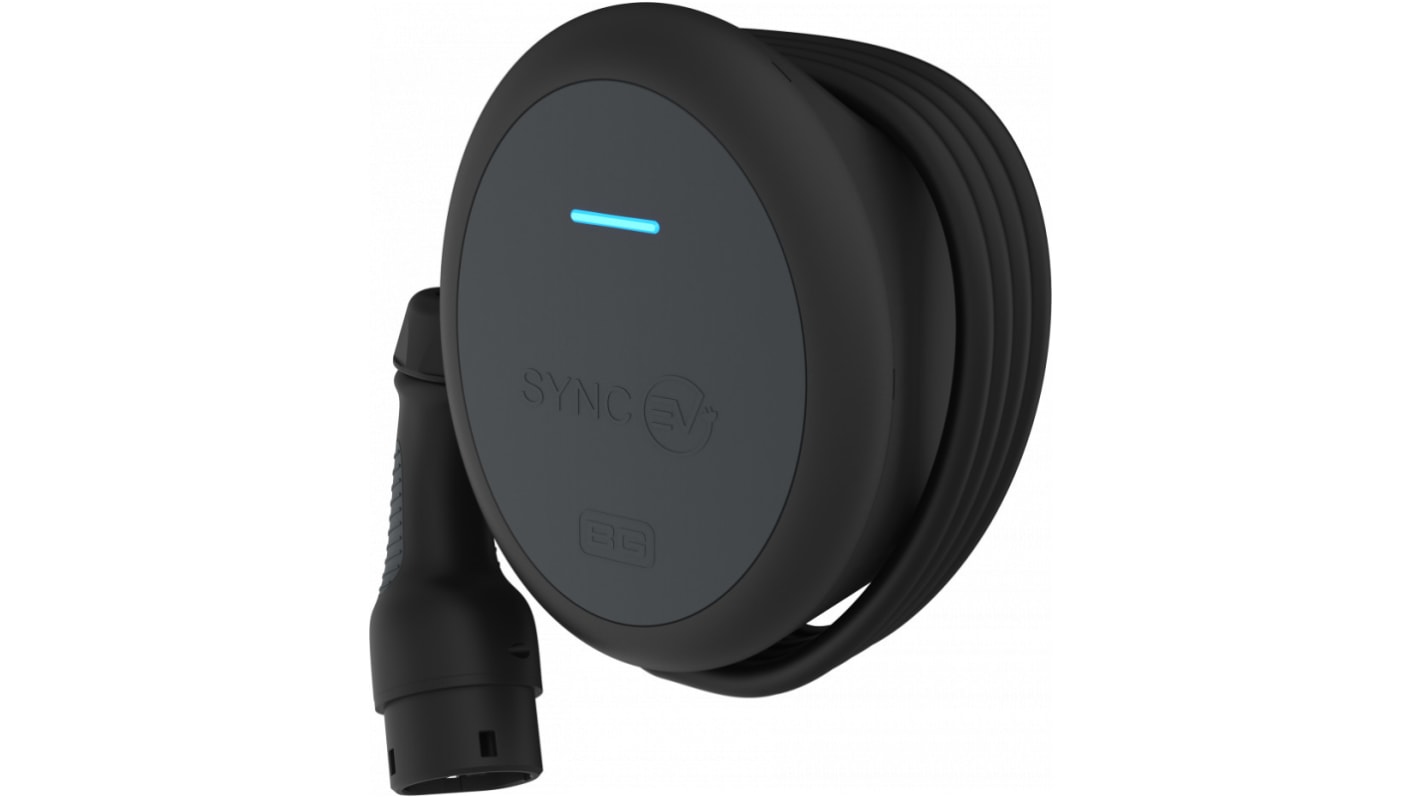

The BG Electrical socketed charger is the perfect complement for electric vehicle charging at home, it is with 3 year warranty, DEKRA certified & regulations compliant and compatible with all electric and hybrid plug-in vehicles. No earth rod required integrated open PEN conductor protection, OCPP 1.6J connectivity free lifetime over-the-air updates.
Full smart functionality via the eve energy app
7.5m of cable and type 2 connector
