Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Output Voltage	184 → 276V ac
	Output Current	32A
	Output Power	7kW
	Number of Sockets	1
	Number of Phases	1
	Length	320mm
	Socket Type	Type 2
	Width	195mm
	Height	110mm
	Connectivity Type	WiFi/Ethernet/Bluetooth/Modbus
	Mounting Type	Wall Mount
	EV Charging Level	2
	Tethered/Untethered	Untethered
	For Use With	Charging Electric Vehicles
	Termination Type	Front socket without shutter
	Better World Product	Yes
	Better World Claim	Renewable energy solution

	Select all
	Brand ABB
	Output Voltage 184 → 276V ac
	Output Current 32A
	Output Power 7kW
	Number of Sockets 1
	Number of Phases 1
	Length 320mm
	Socket Type Type 2
	Width 195mm
	Height 110mm
	Connectivity Type WiFi/Ethernet/Bluetooth/Modbus
	Mounting Type Wall Mount
	EV Charging Level 2
	Tethered/Untethered Untethered
	For Use With Charging Electric Vehicles
	Termination Type Front socket without shutter
	Better World Product Yes
	Better World Claim Renewable energy solution

COO (Country of Origin):: CN

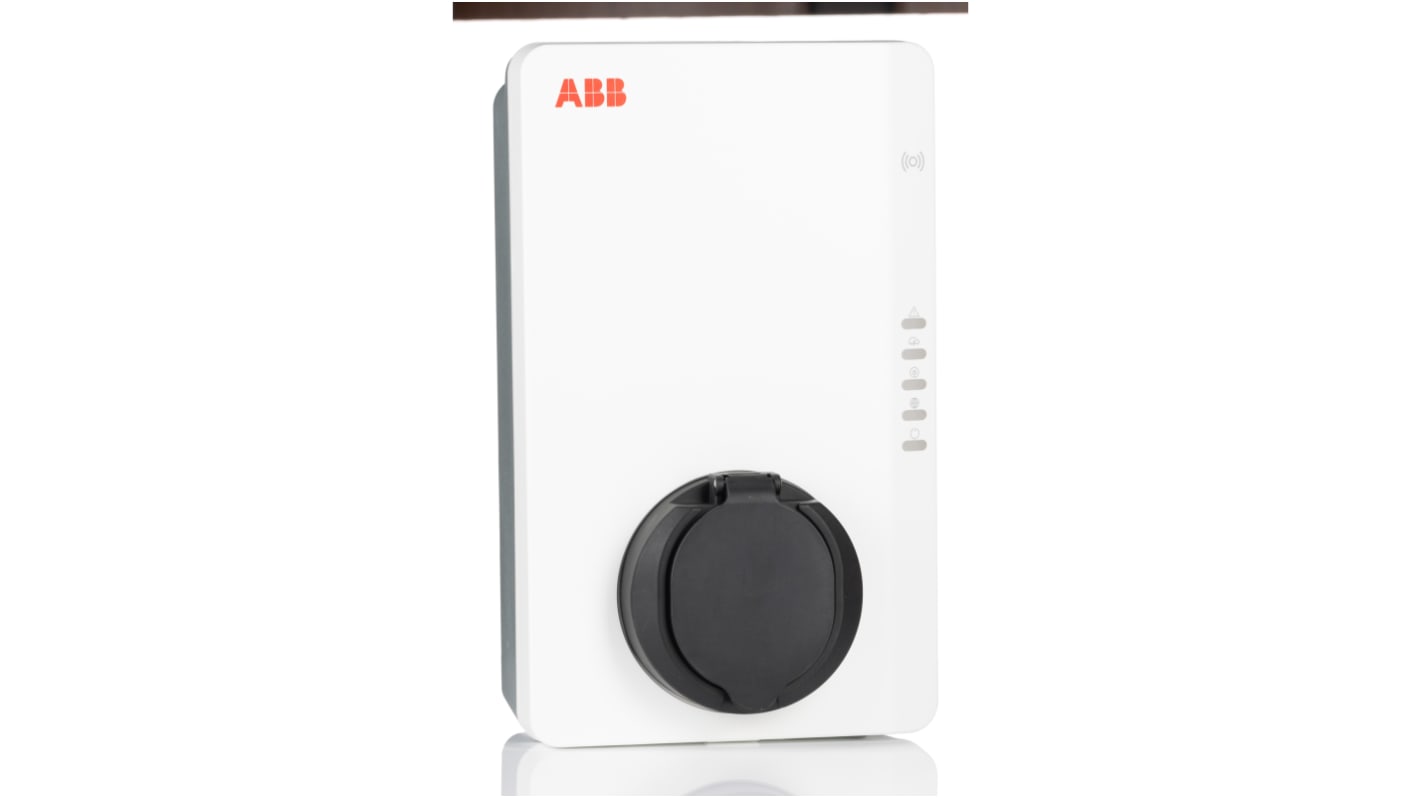

ABB 6AGC081278 TAC-W7-T-0 EV Charging Point, 7kW Output Power, 32A Output Current - 6AGC081278 TAC-W7-T-0

This EV charging point is designed for efficient electric vehicle charging, specifically as a wall-mounted solution. With a compact size of 320mm in length, 195mm in width, and 110mm in height, this device combines functionality with a modern design. The versatile Type 2 socket enables hassle-free charging for all compatible electric vehicles.

Features & Benefits

• Provides untethered charging, enhancing user convenience
• Operates with a robust output power of 7 kW
• Connects via WiFi, Bluetooth, and Ethernet for smart solutions
• Suitable for single-phase power supply, ensuring reliability
• Offers a wide voltage range of 184 to 276 V AC
• Rated IP54, ensuring protection from dust and water

Applications

• Ideal for residential and commercial electric vehicle charging
• Supports a variety of electric vehicles due to Type 2 compatibility
• Suitable for businesses looking to provide charging solutions
• Enhances electric vehicle infrastructure in urban areas
• Perfect for eco-friendly initiatives with renewable energy use

What type of installation is required for this wall-mounted charger?

The charger is designed for wall mounting, which requires a secure installation surface and adherence to electrical safety standards. It should be connected to a suitable power supply by a qualified electrician.

Can this charging point be used outdoors?

Yes, the charging point is rated IP54, making it suitable for outdoor use while providing effective protection against dust and water ingress.

How do the smart connectivity features enhance my charging experience?

By utilising WiFi, Bluetooth, and Ethernet connections, this charger allows users to monitor charging status and manage energy consumption, optimising efficiency and convenience through smart EV charging solutions.

ABB Single Phase 7kW EV Charging Point, 184 → 276V ac O/P, 32A O/P Type 2
