Phoenix Contact 16 A Mode 3, GB/T to GB/T, EV Charging Cable 5m
- RS Stock No.:
- 124-5223
- Mfr. Part No.:
- 1623517
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-5223
- Mfr. Part No.:
- 1623517
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| EV Charging Cable Type | GB/T to GB/T | |
| Cable Length | 5m | |
| Current Rating | 16 A | |
| Phase | Three Phase | |
| Terminated/Unterminated | Terminated | |
| Voltage Rating | 440 V ac | |
| Cross Sectional Area | 1 x 0.5 mm², 5 x 2.5 mm² | |
| EV Charging Mode | Mode 3 | |
| IP Rating | IP55, IP56 | |
| Sheath Colour | Black | |
| Power Rating | 12kW | |
| Standards Met | GB/T 20234.2-2015 | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature Range | +50°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
EV Charging Cable Type GB/T to GB/T | ||
Cable Length 5m | ||
Current Rating 16 A | ||
Phase Three Phase | ||
Terminated/Unterminated Terminated | ||
Voltage Rating 440 V ac | ||
Cross Sectional Area 1 x 0.5 mm², 5 x 2.5 mm² | ||
EV Charging Mode Mode 3 | ||
IP Rating IP55, IP56 | ||
Sheath Colour Black | ||
Power Rating 12kW | ||
Standards Met GB/T 20234.2-2015 | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature Range +50°C | ||
- COO (Country of Origin):
- DE

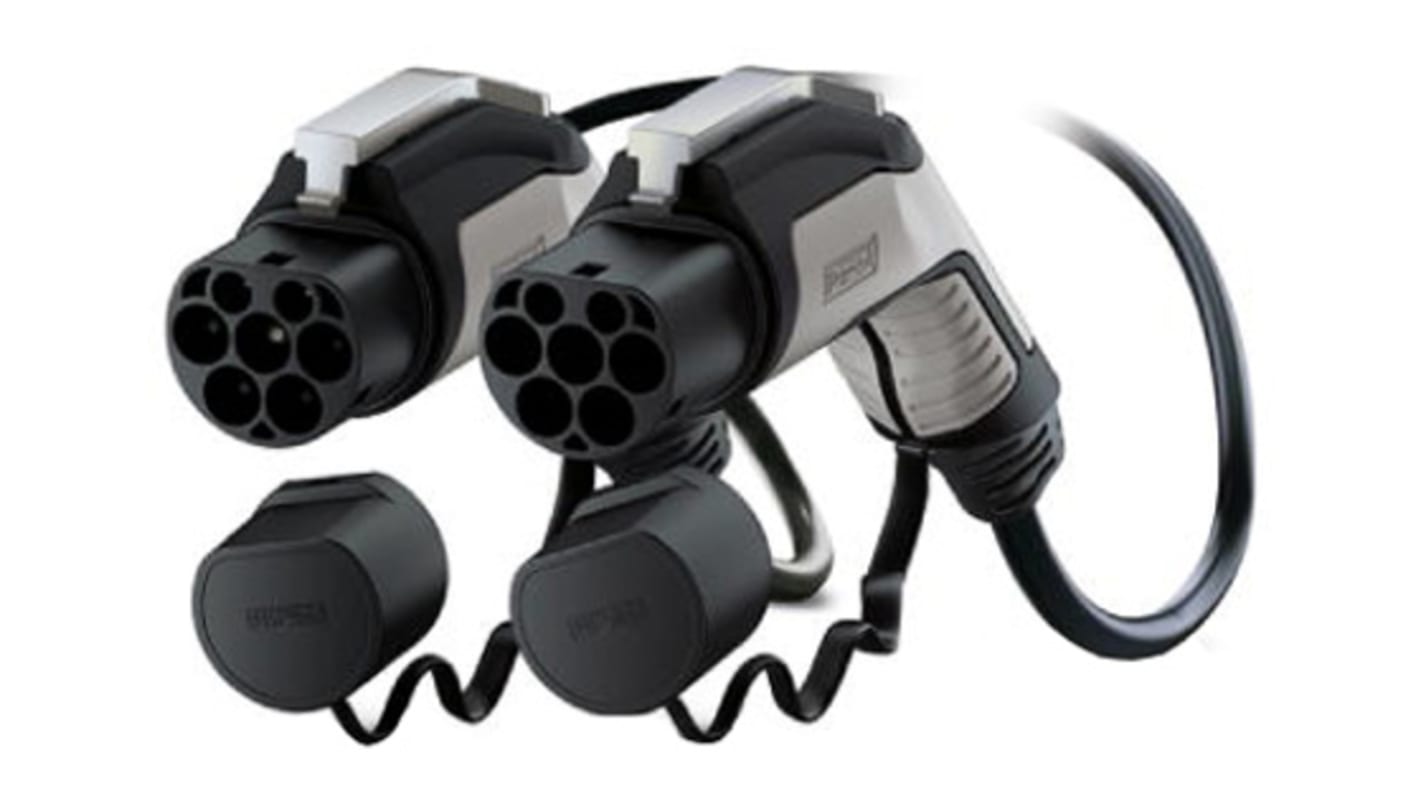

Mobile AC Charging Cable, GB/T, 3-Phase, U-Lock
"From Phoenix Contact, this C-Line 3 phase mobile AC charging cable has a vehicle connector and infrastructure plug for charging electric vehicles. The alternating current (AC) cable is suitable for GB/T vehicle inlets and connects to GB/T Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).
With a straight, TPE-U sheathed cable, this mobile charging cable is easily stored, and its robust construction and silver plated contacts assure a reliable connection.
GB/T EV connectors are a Chinese standard.
The cable assembly also has attached connector plug caps which will protect the connector up to IP56. The connectors feature a locking option for U-Lock.
With a straight, TPE-U sheathed cable, this mobile charging cable is easily stored, and its robust construction and silver plated contacts assure a reliable connection.
GB/T EV connectors are a Chinese standard.
The cable assembly also has attached connector plug caps which will protect the connector up to IP56. The connectors feature a locking option for U-Lock.
• Design Type: C-Line
• GB/T Charging Standard
• Mode 3 Charging Mode
• AC 3-phase charging current
• 20234.2-2015 Standard
• Insertion Force of < 100 N
• Suitable for > 10,000 mating cycles.
• IP55 when mated
• GB/T Charging Standard
• Mode 3 Charging Mode
• AC 3-phase charging current
• 20234.2-2015 Standard
• Insertion Force of < 100 N
• Suitable for > 10,000 mating cycles.
• IP55 when mated
Phoenix Contact Electric Vehicle Connectors
