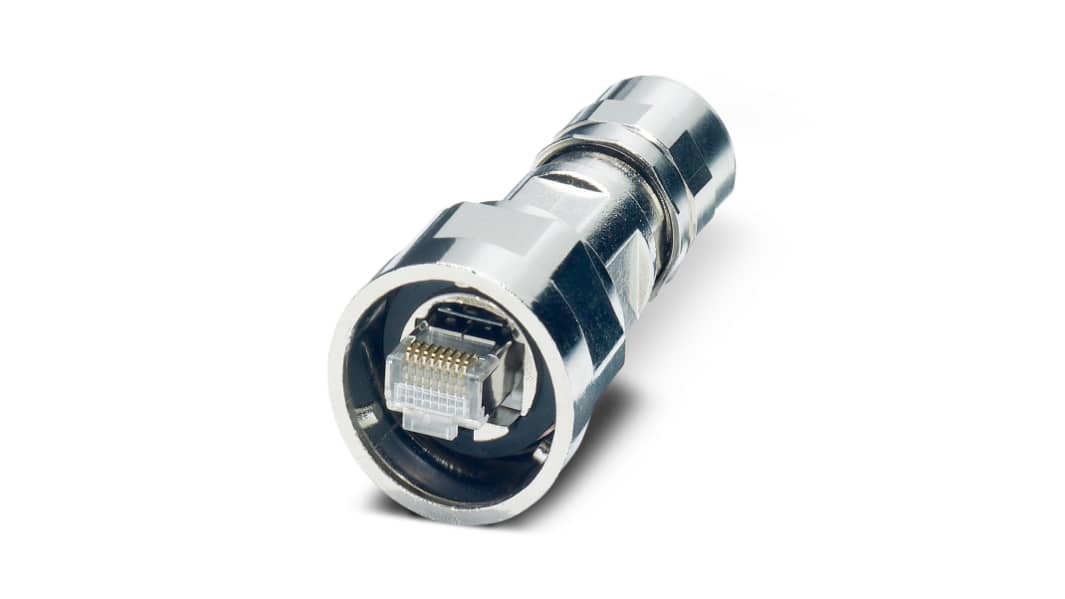

Phoenix Contact VS-V1 Series Male RJ45 Connector, Cable Mount, Cat5 Straight 8 -Way
- RS Stock No.:
- 921-0149
- Mfr. Part No.:
- 1419182
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£88.27
(exc. VAT)
£105.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £88.27 |
10 - 19 | £84.57 |
20 - 49 | £80.95 |
50 - 99 | £77.24 |
100 + | £73.53 |
*price indicative
- RS Stock No.:
- 921-0149
- Mfr. Part No.:
- 1419182
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Ethernet Connector Type | RJ45 Connector | |
Gender | Male | |
LAN Category | Cat5 | |
Mounting Type | Cable Mount | |
Number of Ways | 8 | |
Shield Type | Shielded | |
Orientation | Straight | |
IP Rating | IP67 | |
Length | 75.63mm | |
Width | 30 (Dia.)mm | |
Series Number | VS-V1-C-RJ45-MNNA-PG9-8-I-5-S | |
Series | VS-V1 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Ethernet Connector Type RJ45 Connector | ||
Gender Male | ||
LAN Category Cat5 | ||
Mounting Type Cable Mount | ||
Number of Ways 8 | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP67 | ||
Length 75.63mm | ||
Width 30 (Dia.)mm | ||
Series Number VS-V1-C-RJ45-MNNA-PG9-8-I-5-S | ||
Series VS-V1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IP67 RJ45 Bayonet Locking Plugs
From Phoenix Contact, a series of professional grade bayonet locking RJ45 connectors. These rugged connectors have a diecast zinc housing and are IP67 rated. The RJ45 connectors benefit from IDC quick termination making them ideal for field applications. These connectors are suitable for a cable with 5.0 mm to 10.0 mm range.
Phoenix Contact VS-V1 Series RJ45 Connector, 8 Ways, IP67 Rating - 1419182
This RJ45 Connector features a robust design suitable for high-speed Ethernet connectivity. With an IP67 rating, it guarantees protection against dust and water ingress. The male connector is cable mounted and tailored for industrial applications, measuring 75.63mm in length and 30mm in diameter.
Features & Benefits
• Shielded design minimises electromagnetic interference for reliable performance
• Supports high-speed data transmission with Cat5 capability
• IP67 rating ensures operational reliability in harsh environments
• Designed for an extensive temperature range of -40°C to 70°C
• Accommodates cable diameters of 5mm to 10mm for versatile installations
• Zinc die-cast housing provides durability and structural integrity
• Supports high-speed data transmission with Cat5 capability
• IP67 rating ensures operational reliability in harsh environments
• Designed for an extensive temperature range of -40°C to 70°C
• Accommodates cable diameters of 5mm to 10mm for versatile installations
• Zinc die-cast housing provides durability and structural integrity
Applications
• Utilised in automation systems for reliable data connectivity
• Suitable for use in electronics where network integrity is critical
• Ideal for electrical installations requiring robust and secure connections
• Perfect for mechanical needing high-speed data transfer
• Employed in industrial settings demanding resilient networking solutions
• Suitable for use in electronics where network integrity is critical
• Ideal for electrical installations requiring robust and secure connections
• Perfect for mechanical needing high-speed data transfer
• Employed in industrial settings demanding resilient networking solutions
What is the connection method applicable to this product?
The connector utilises IDC connection technology, allowing for quick and effective cable terminations.
How does the IP67 rating benefit usage in different environments?
This rating provides assurance against water and dust ingress, making it suitable for external and harsh conditions.
What conductor cross-section compatibility does it support?
It accommodates conductor sizes between AWG 27 and 24, ensuring versatility in wiring options.
How many insertion cycles can this connector withstand?
The design allows for up to 750 insertion/withdrawal cycles, enhancing its longevity and usability.
What maximum cable diameter can it handle?
The connector is capable of handling cables with diameters ranging from 5mm to 10mm, providing flexibility in installation.
