Amphenol Socapex RJF Series RJ45 Connector Female, Panel Mount, Cat5e Shielded Straight 1 Port 8 Way
- RS Stock No.:
- 695-0235
- Distrelec Article No.:
- 302-25-354
- Mfr. Part No.:
- RJF21N
- Brand:
- Amphenol Socapex
Bulk discount available
Subtotal (1 unit)*
£54.19
(exc. VAT)
£65.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 188 unit(s) shipping from 27 April 2026
- Plus 76 unit(s) shipping from 27 April 2026
- Plus 100 unit(s) shipping from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £54.19 |
| 5 - 9 | £50.40 |
| 10 + | £46.60 |
*price indicative
- RS Stock No.:
- 695-0235
- Distrelec Article No.:
- 302-25-354
- Mfr. Part No.:
- RJF21N
- Brand:
- Amphenol Socapex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Socapex | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5e | |
| Number of Ports | 1 | |
| Mount Type | Panel Mount | |
| Number of Ways | 8 | |
| Connector Type | Receptacle | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP68 | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Depth | 33.3mm | |
| Series | RJF | |
| Width | 33.3mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Length | 39.1mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Amphenol Socapex | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5e | ||
Number of Ports 1 | ||
Mount Type Panel Mount | ||
Number of Ways 8 | ||
Connector Type Receptacle | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP68 | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Depth 33.3mm | ||
Series RJF | ||
Width 33.3mm | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Length 39.1mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- IN

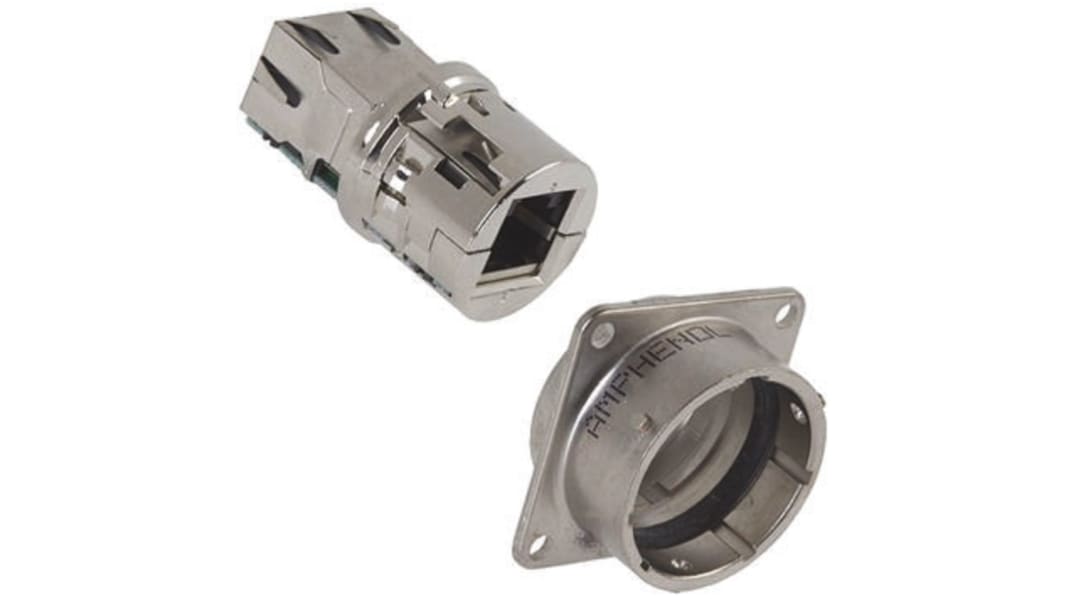

Amphenol RJ45 Connector
The Amphenol RJF series Cat5e female RJ45 connector is a square flange receptacle shell. This RJField allows you to use an Ethernet Cat.5e connection for 10 BaseT, 100 BaseTX or 1000 BaseT networks in harsh environments. This connector is suitable for networking in harsh environments and uses industry-standard RJ45 connectors, protecting them in a rugged metal shell against shock, dust and fluids.
Features and Benefits
Bayonet coupling RJ45 cordset
Excellent quality
Mechanical Coding/Polarization (4 positions)
Sealed against fluids and dust
Mating cycles is 500 minute
Highly reliable
No cabling and tooling required
Compatible cable diameters ranging between 5.5mm and 13mm
Applications
CNC machines
Industrial process control
Oil and gas
Robotics
Tele-maintenance
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP68 rated
