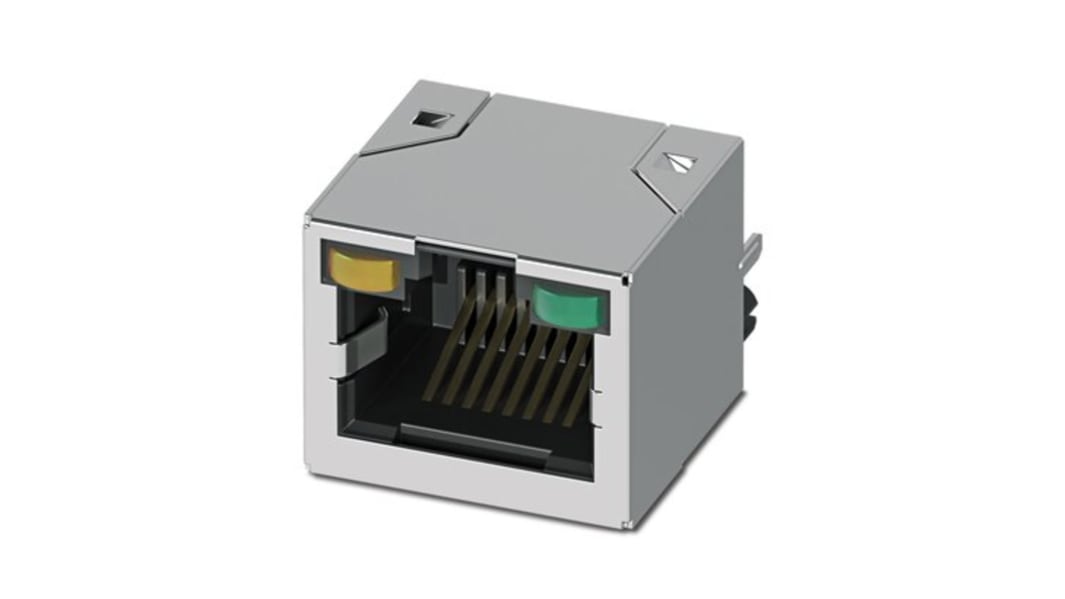

Phoenix Contact CUC Series RJ45 Connector Female, PCB, 10 Gbps Shielded 1 Way
- RS Stock No.:
- 267-1821
- Mfr. Part No.:
- 1337239
- Brand:
- Phoenix Contact
Subtotal (1 pack of 120 units)*
£219.48
(exc. VAT)
£263.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 120 + | £1.829 | £219.48 |
*price indicative
- RS Stock No.:
- 267-1821
- Mfr. Part No.:
- 1337239
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | 10 Gbps | |
| Mount Type | PCB | |
| Number of Ways | 1 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| IP Rating | IP20 | |
| LED | Yes | |
| Minimum Operating Temperature | -50°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Length | 19.6mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | UL Recognised | |
| Series | CUC | |
| Width | 16.8mm | |
| Depth | 13.6mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category 10 Gbps | ||
Mount Type PCB | ||
Number of Ways 1 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Shield Type Shielded | ||
IP Rating IP20 | ||
LED Yes | ||
Minimum Operating Temperature -50°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Length 19.6mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals UL Recognised | ||
Series CUC | ||
Width 16.8mm | ||
Depth 13.6mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel | ||
The Phoenix Contact RJ45 PCB connectors is right version for every application. Available with and without LED, single- and multi-port. The reflow capability enables efficient, cost-optimized processing. The tape-on-reel packaging is perfect for cost-saving automatic processing.
8 number of position
IP20 degree of protection
