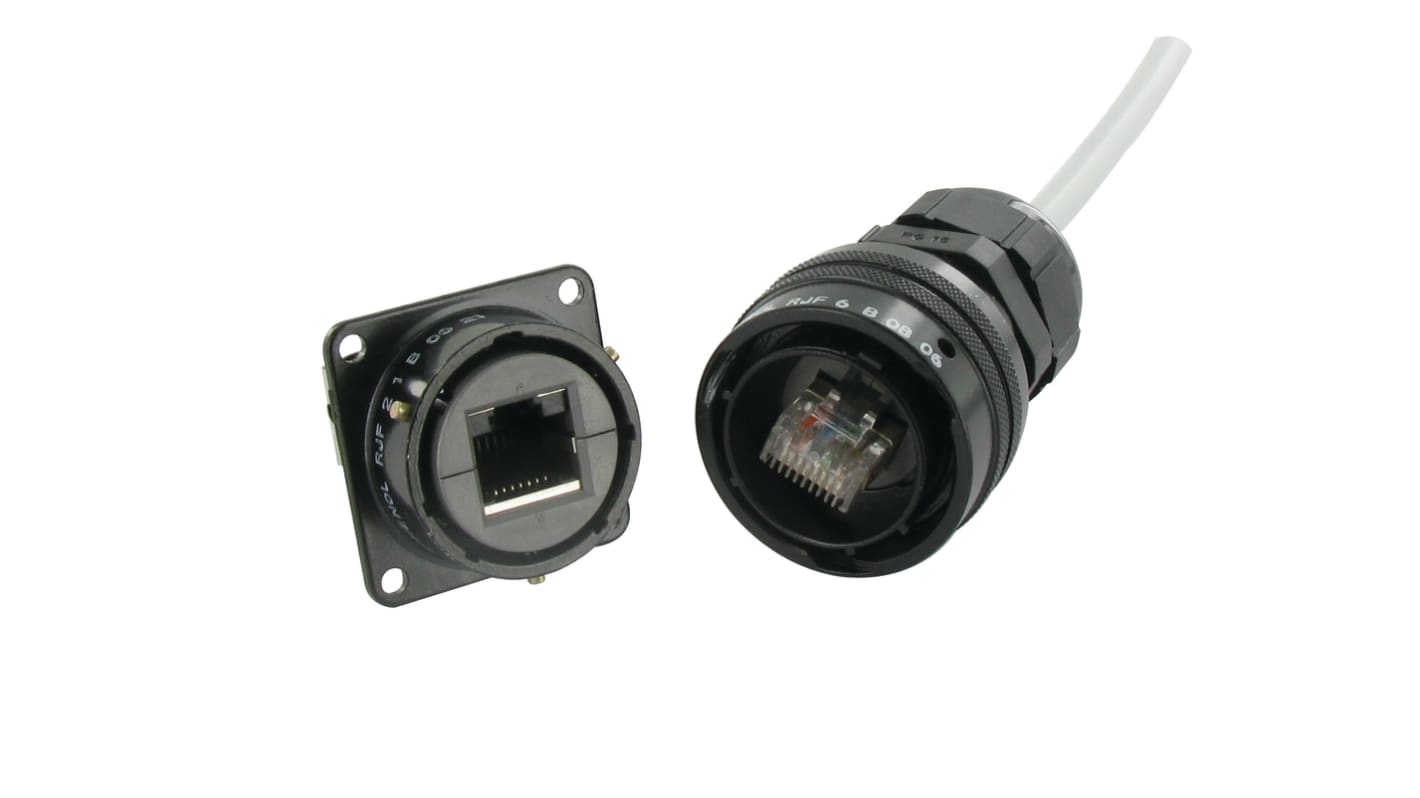

Amphenol Socapex RJF Series Ethernet Connector Female, Flange, Cat5e Straight 1 Port
- RS Stock No.:
- 254-6460
- Mfr. Part No.:
- RJF2PEM1B
- Brand:
- Amphenol Socapex
Bulk discount available
Subtotal (1 unit)*
£94.52
(exc. VAT)
£113.42
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 5 unit(s) shipping from 30 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £94.52 |
| 10 - 24 | £90.64 |
| 25 - 49 | £84.88 |
| 50 - 99 | £82.89 |
| 100 + | £79.11 |
*price indicative
- RS Stock No.:
- 254-6460
- Mfr. Part No.:
- RJF2PEM1B
- Brand:
- Amphenol Socapex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Socapex | |
| Ethernet Connector Type | RJ45 | |
| Product Type | Ethernet Connector | |
| LAN Category | Cat5e | |
| Mount Type | Flange | |
| Number of Ports | 1 | |
| Connector Gender | Female | |
| Connector Type | Receptacle | |
| Magnetic | No | |
| Orientation | Straight | |
| IP Rating | IP67 | |
| LED | No | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Jam Nut | |
| Light Pipes | No | |
| Maximum Operating Temperature | 85°C | |
| Width | 41.3mm | |
| Length | 41.3mm | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | NO | |
| Depth | 39.1mm | |
| Series | RJF | |
| Select all | ||
|---|---|---|
Brand Amphenol Socapex | ||
Ethernet Connector Type RJ45 | ||
Product Type Ethernet Connector | ||
LAN Category Cat5e | ||
Mount Type Flange | ||
Number of Ports 1 | ||
Connector Gender Female | ||
Connector Type Receptacle | ||
Magnetic No | ||
Orientation Straight | ||
IP Rating IP67 | ||
LED No | ||
Minimum Operating Temperature -40°C | ||
Termination Type Jam Nut | ||
Light Pipes No | ||
Maximum Operating Temperature 85°C | ||
Width 41.3mm | ||
Length 41.3mm | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification NO | ||
Depth 39.1mm | ||
Series RJF | ||
The Amphenol Socapex circular field modular connector or Ethernet connector with a female jack of USOC code RJ45. It has 1x1 configuration and 8 number of position and 8 number of contacts per port.
Operating temperature range is -40⁰C to +85⁰C
It has right mounting angle and flange mounting style
Number of port is 1
Termination style is connector
