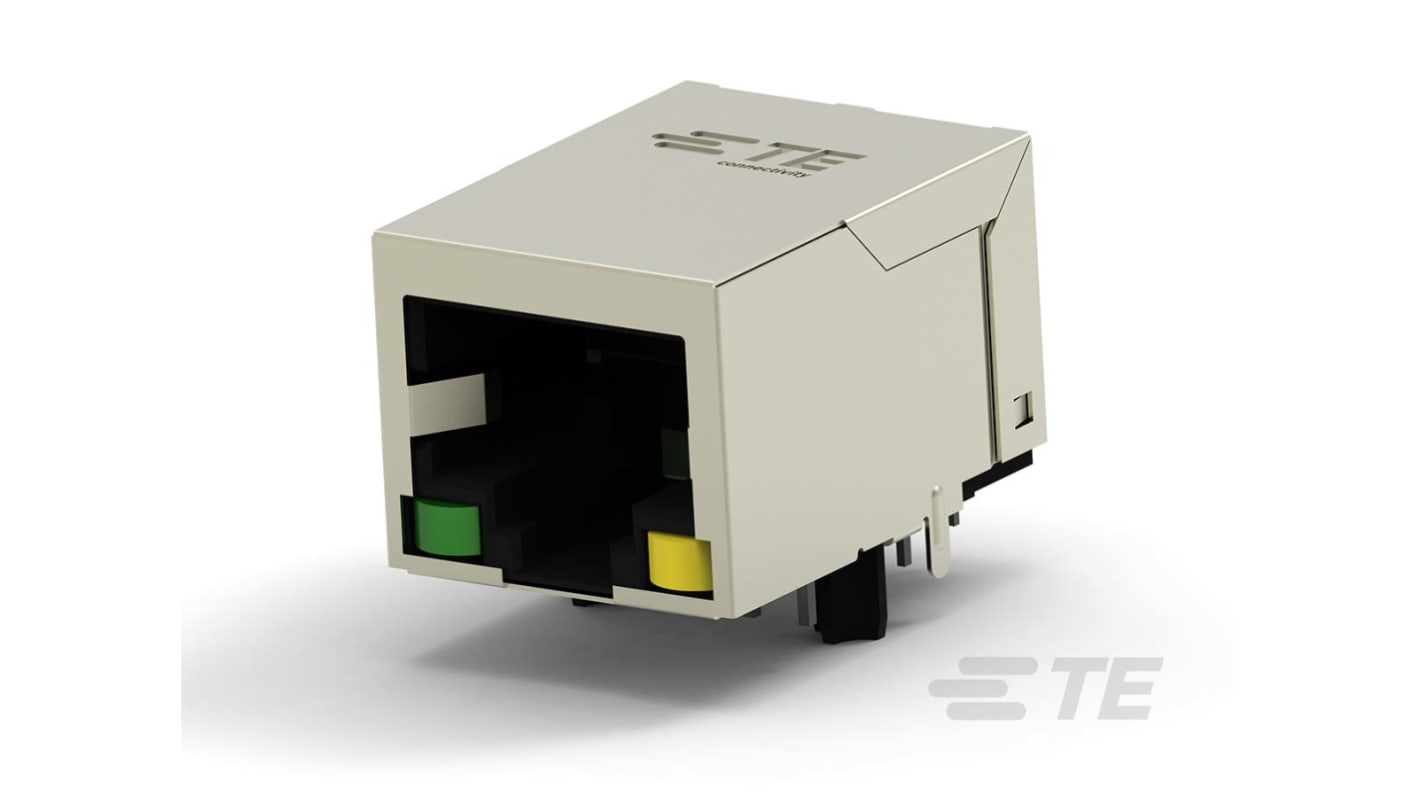

TE Connectivity 2337992 Series Female RJ45 Connector, Through Hole, Cat5e, Nickel Plated Brass Shield

RS Stock No.:: 188-4450
Mfr. Part No.:: 2337992-8
Brand:: TE Connectivity

TE Connectivity 2337992 Series Female RJ45 Connector, Through Hole, Cat5e, Nickel Plated Brass Shield

Available to back order for despatch when stock is available

Price Each

£9.44

(exc. VAT)

£11.33

(inc. VAT)

Units	Per unit
1 +	£9.44

RS Stock No.:: 188-4450
Mfr. Part No.:: 2337992-8
Brand:: TE Connectivity

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Extended temperature range -40°C to +85°C
PoE+ support according to 802.3at
Plating thickness 0.76μm [30μ inch] Gold over 1.27μm [50μ inch] Nickel
Supporting 260°C reflow solder processes to simplify manufacturing without extra process step
Reduction of electrical problems and corrosion via thicker plating
Fits Industrial applications: -40°C to +85°C temp range
Compact design on PCB using integrated magnetics
Remote powering supported by 802.3at PoE
Enhanced EMI with 3 wire choke
Applications
Industrial Communications & Ethernet
Industrial Machinery
Industrial Production Equipment
Automated Test Equipment

Specifications

Attribute	Value
Ethernet Connector Type	RJ45 Connector
Gender	Female
LAN Category	Cat5e
Number of Ports	1 x 1
Mounting Type	Through Hole
Number of Ways	8
Shield Type	Nickel Plated Brass
Orientation	Right Angle
IP Rating	IP20
Length	15.9mm
Width	21.35mm
Depth	17.2mm
Series Number	2337992
Series	2337992
Contact Material	Copper Alloy
Contact Plating	Gold over Nickel, Tin over Nickel
