- RS Stock No.:
- 186-4999
- Mfr. Part No.:
- 1-338088-6
- Brand:
- TE Connectivity
Available to back order for despatch 30/07/2024
Added
Price Each (On a Tape of 5)
£1.794
(exc. VAT)
£2.153
(inc. VAT)
Units | Per unit | Per Tape* |
5 - 20 | £1.794 | £8.97 |
25 - 70 | £1.652 | £8.26 |
75 - 120 | £1.574 | £7.87 |
125 + | £1.546 | £7.73 |
*price indicative |
- RS Stock No.:
- 186-4999
- Mfr. Part No.:
- 1-338088-6
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details

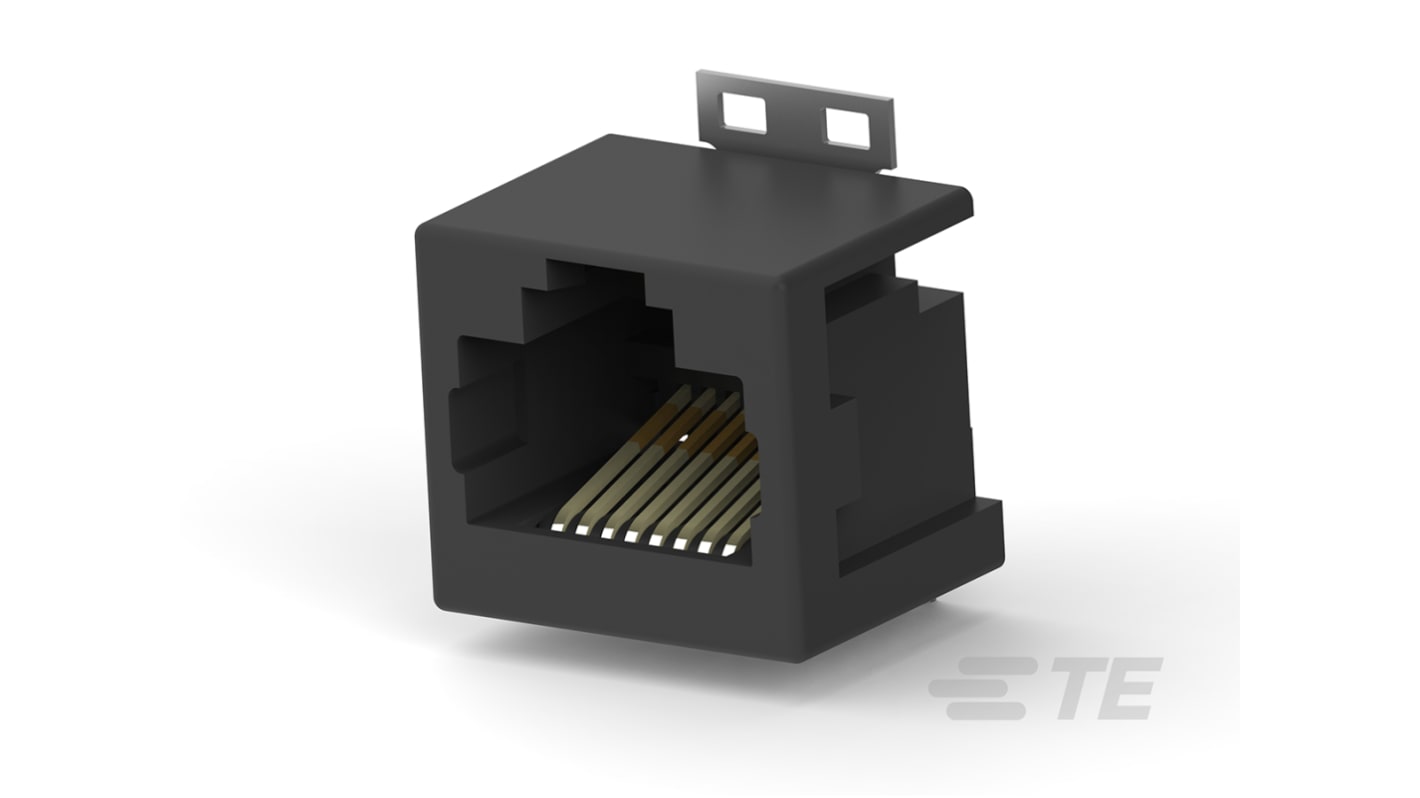

TE Connectivity 1-338088-6
Connector Product Type=Connector Assembly, Modular Jack & Plug Interface Type=RJ45, Modular Jacks & Plugs Products=RJ Type Jacks & Plugs, Modular Connector Style=Jack, Grounding Options=None, Keyed=No, Port Configuration=Single Port, Port Matrix Configuration=1 x 1, Connector Contact Density=Standard, Status Indicator=None, Modular Jack Latch Orientation=Standard - Latch Down, Connector Profile=Standard, PCB Contact Termination Area Plating Material=Tin, Contact Current Rating (Max)=1.5 A, Contact Mating Area Plating Material=Nickel, Contact Base Material=Phosphor Bronze, Contact Mating Area Plating Material Thickness=1.27 μm, Termination Method to Printed Circuit Board=Surface Mount, Panel Mount Feature=Without, Connector Mounting Type=Board Mount, Mating Entry Location=Top, Centerline (Pitch)=1.02 mm, Housing Color=Black, Housing Material=PA 4T GF30, PCB Thickness (Recommended)=1.57 mm, PCB Tail Length=1.5 mm, Connector Height=12.7 mm, Operating Temperature Range=-45 – 70 °C, Shielded=No, Circuit Application=Signal, UL Flammability Rating=UL 94V-0, Performance Category=Cat 3, Packaging Quantity=250, Packaging Method=Reel, Comment=Embossed tape according to EIA 481-3.,Kapton tape applied to top surface of jack to facilitate vacuum pickup.,Surface can be used for application by Type I and Type II SMD machines.,Surface can be used for application by Type II SMD Machine.,This Invertible Modular Jack can also be applied hanging through a hole in the PC Board. (See PCB Layout)
Specifications
Attribute | Value |
---|---|
Ethernet Connector Type | RJ45 Connector |
Gender | Female |
LAN Category | Cat3 |
Mounting Type | Surface Mount |
Number of Ports | 1 |
Number of Ways | 8 |
Shield Type | Unshielded |
Orientation | Vertical |
Length | 15.55mm |
Width | 14mm |
Depth | 12.7mm |
Series | 1-338088 |
Series Number | 1-338088 |
Contact Material | Phosphor Bronze |
