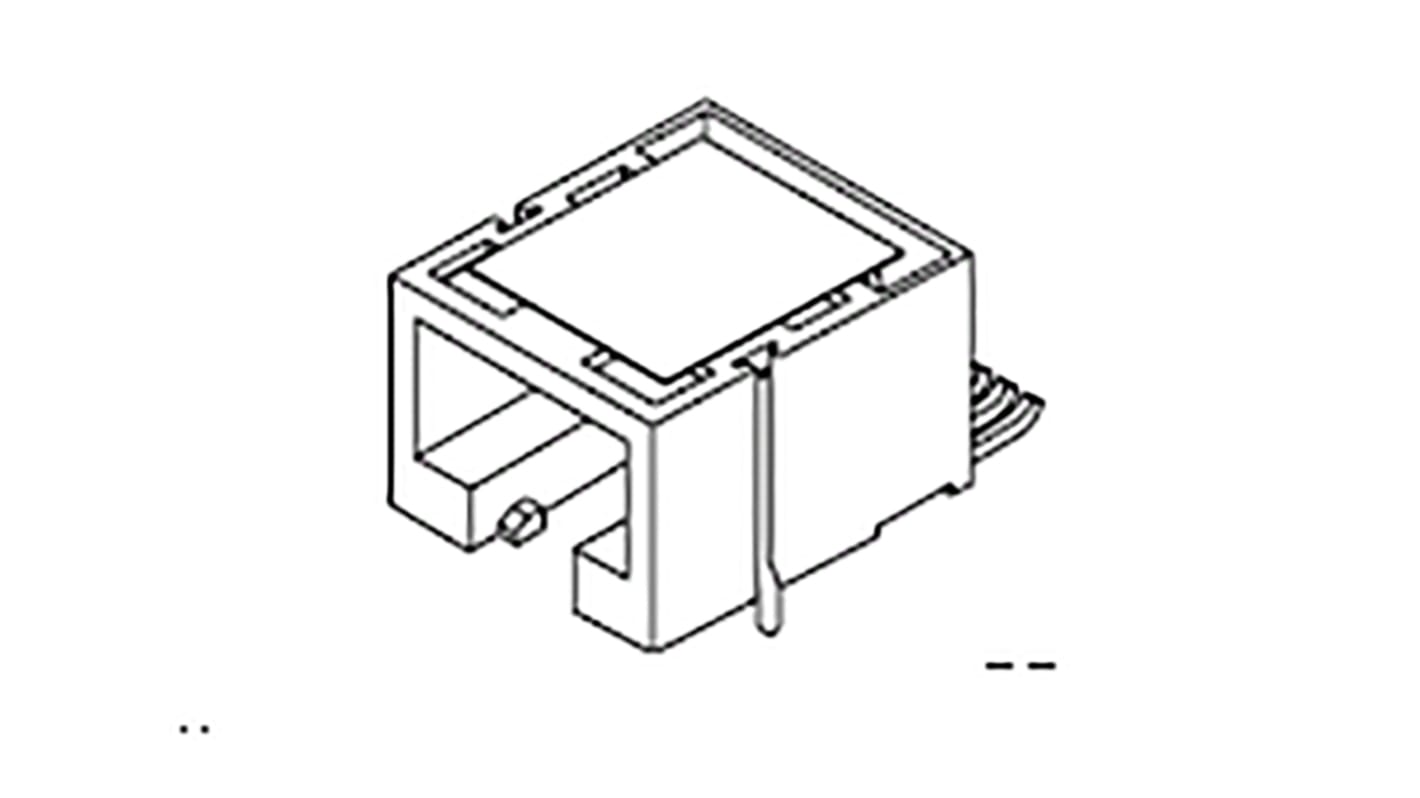

Molex 85502 Series RJ45 Connector Female, Surface Mount, Cat3 Unshielded Right Angle 1 Port 8 Way
- RS Stock No.:
- 178-9309
- Distrelec Article No.:
- 304-57-608
- Mfr. Part No.:
- 85502-5012
- Brand:
- Molex
Bulk discount available
Subtotal (1 reel of 1015 units)*
£1,049.51
(exc. VAT)
£1,259.615
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1015 - 1015 | £1.034 | £1,049.51 |
| 2030 - 4060 | £0.929 | £942.94 |
| 5075 - 9135 | £0.883 | £896.25 |
| 10150 + | £0.848 | £860.72 |
*price indicative
- RS Stock No.:
- 178-9309
- Distrelec Article No.:
- 304-57-608
- Mfr. Part No.:
- 85502-5012
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat3 | |
| Number of Ports | 1 | |
| Mount Type | Surface Mount | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Unshielded | |
| Orientation | Right Angle | |
| Magnetic | No | |
| LED | No | |
| Minimum Operating Temperature | -40°C | |
| Light Pipes | No | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Series | 85502 | |
| Length | 15.24mm | |
| Width | 11.5mm | |
| Depth | 18.1mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IEC 60603-7 RoHS Compliant, TIA-1096-A | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel Palladium | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat3 | ||
Number of Ports 1 | ||
Mount Type Surface Mount | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Unshielded | ||
Orientation Right Angle | ||
Magnetic No | ||
LED No | ||
Minimum Operating Temperature -40°C | ||
Light Pipes No | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Series 85502 | ||
Length 15.24mm | ||
Width 11.5mm | ||
Depth 18.1mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals IEC 60603-7 RoHS Compliant, TIA-1096-A | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel Palladium | ||
Modular Jack, Right-Angle, Surface Mount, 8/8, Low Profile, Pin-in-Hole-Reflow, Tape & Reel
