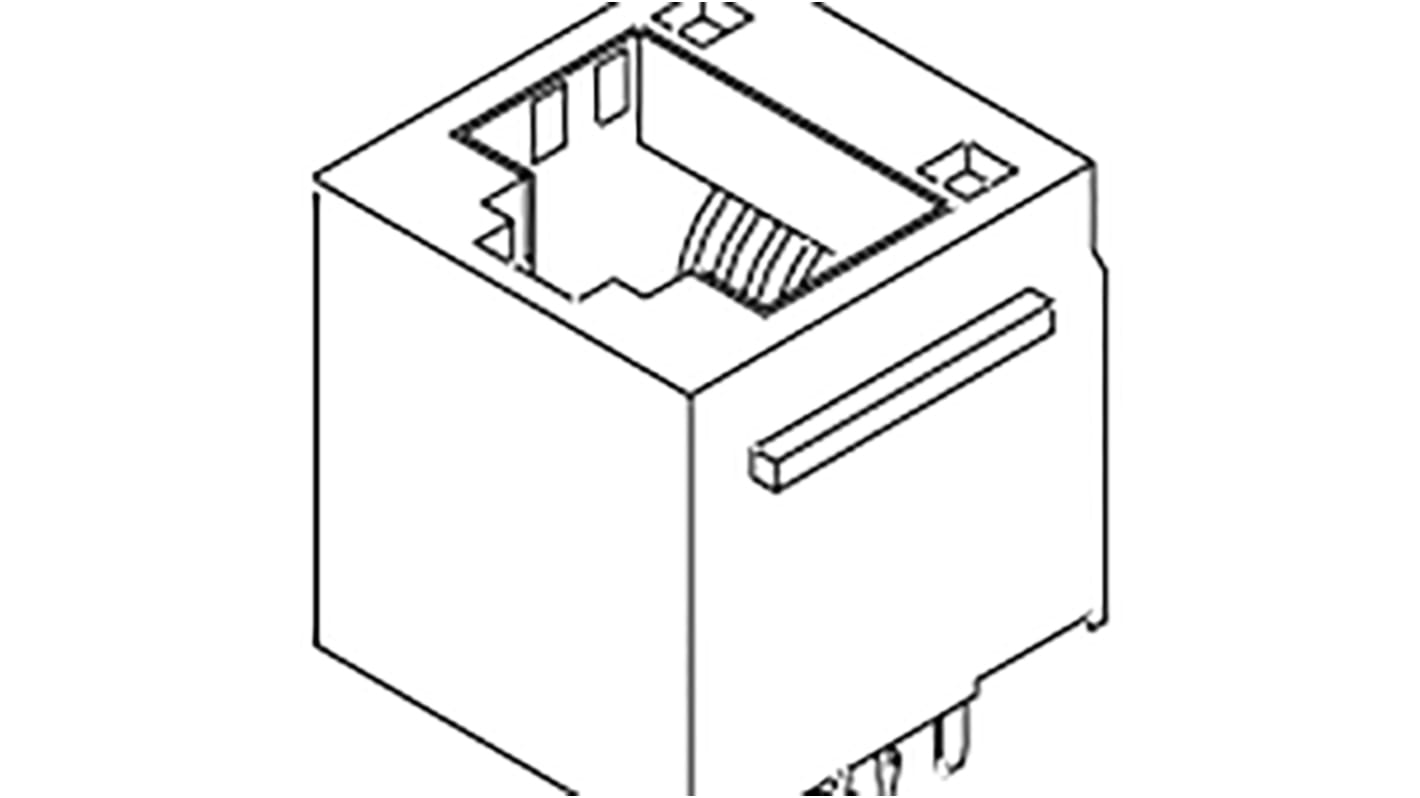

Molex 85507 Series RJ45 Connector Female, Through Hole, Cat5e Shielded Vertical 1 Port 8 Way
- RS Stock No.:
- 178-8796
- Mfr. Part No.:
- 85507-5001
- Brand:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 560 units)*
£1,616.72
(exc. VAT)
£1,939.84
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 560 unit(s) shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 560 - 560 | £2.887 | £1,616.72 |
| 1120 - 2240 | £2.742 | £1,535.52 |
| 2800 - 5040 | £2.598 | £1,454.88 |
| 5600 - 7840 | £2.454 | £1,374.24 |
| 8400 + | £2.309 | £1,293.04 |
*price indicative
- RS Stock No.:
- 178-8796
- Mfr. Part No.:
- 85507-5001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5e | |
| Number of Ports | 1 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Vertical | |
| Magnetic | No | |
| LED | No | |
| Light Pipes | No | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Depth | 16.64mm | |
| Series | 85507 | |
| Length | 15.24mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Width | 13.3mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Nickel Palladium | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5e | ||
Number of Ports 1 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Vertical | ||
Magnetic No | ||
LED No | ||
Light Pipes No | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Depth 16.64mm | ||
Series 85507 | ||
Length 15.24mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Width 13.3mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel Palladium | ||
- COO (Country of Origin):
- IE
Modular Jack, Cat5e, Vertical, Top Entry, Through Hole, 8/8, Int. Shielded, with Ribs, Tray
