RS PRO Cat7 Ethernet Cable, S/FTP, Blue LSZH Sheath, 500m, Low Smoke Zero Halogen (LSZH)
- RS Stock No.:
- 811-0833
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£128.93
(exc. VAT)
£154.72
(inc. VAT)
- RS Stock No.:
- 811-0833
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| LAN Category | Cat7 | |
| Length | 500m | |
| Terminated/Unterminated | Unterminated | |
| Shield Type | S/FTP | |
| Outer Sheath Material | LSZH | |
| Sheath Colour | Blue | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 7/0.58 | |
| Conductor Strand Type | Solid | |
| Cable Shape | Multicore, Twisted Pair | |
| American Wire Gauge | 23 AWG | |
| Outer Diameter | 7.8mm | |
| Number of Strands | 7 | |
| Standards Met | Euroclass Eca | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
LAN Category Cat7 | ||
Length 500m | ||
Terminated/Unterminated Unterminated | ||
Shield Type S/FTP | ||
Outer Sheath Material LSZH | ||
Sheath Colour Blue | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 7/0.58 | ||
Conductor Strand Type Solid | ||
Cable Shape Multicore, Twisted Pair | ||
American Wire Gauge 23 AWG | ||
Outer Diameter 7.8mm | ||
Number of Strands 7 | ||
Standards Met Euroclass Eca | ||
- COO (Country of Origin):
- CN

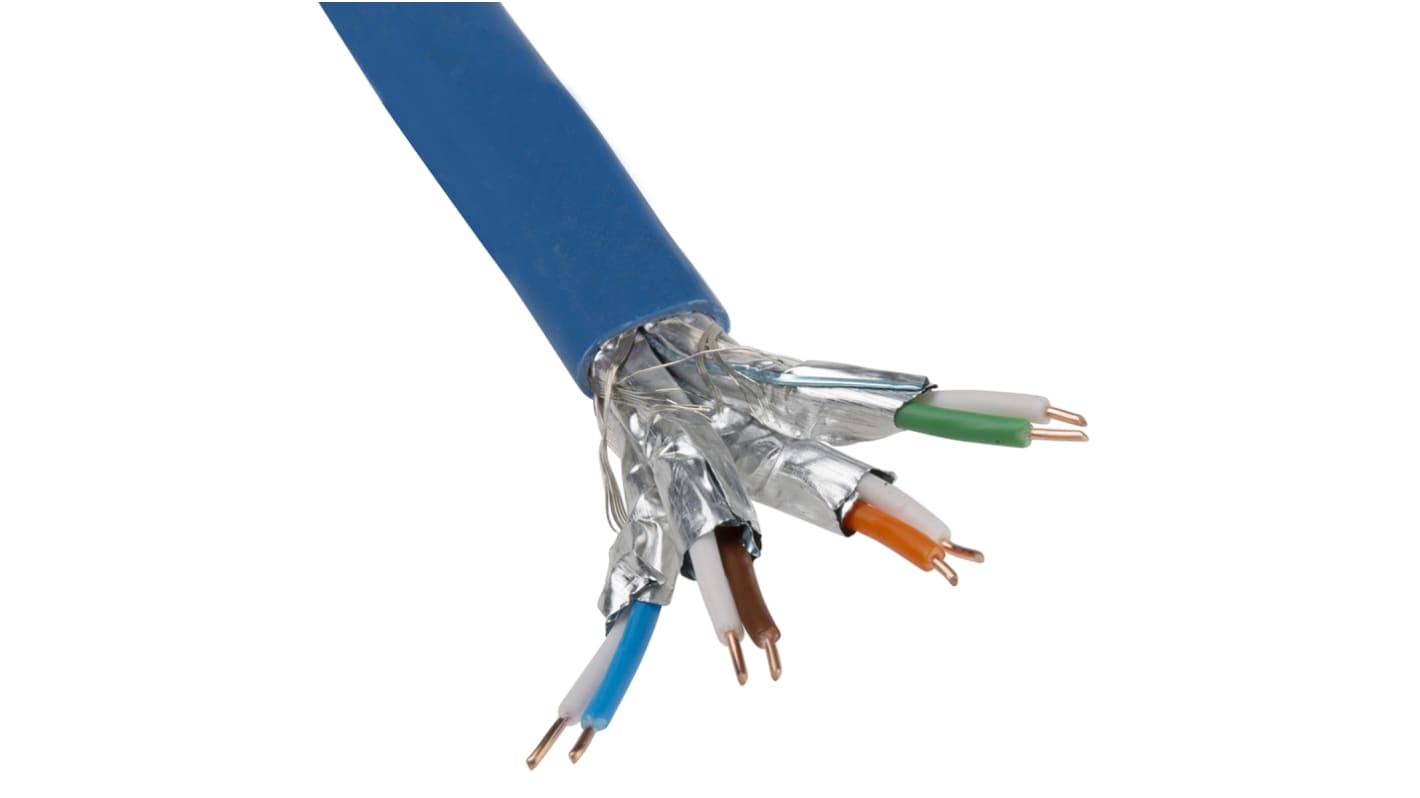

RS Cat7 Cable S-FTP 900 MHZ LSZH
This Cat7 cable from RS Pro has a low smoke zero halogen outer sheath which emits smoke rather than halogen when exposed to high temperatures. Category 7 cables are shielded twisted pair cables capable of carrying 10 Gb Ethernet over 100m.
Features and Benefits
4 Pair
Solid Bare Copper Conductor
Skin-Foam-Skin Insulation
LSZH Jacket
Solid Bare Copper Conductor
Skin-Foam-Skin Insulation
LSZH Jacket
Product Application Information
The RS Pro Cat7 S-FTP cable is ideal for horizontal wiring in LAN.
What is low smoke zero halogen cable?
Low smoke zero halogen is also commonly referred to as LSZH or LSOH and is a classification used for the jacket material of a cable. It is composed of thermoplastic compounds that emit smoke instead of halogen when exposed to high heat sources. This makes them much less toxic to humans during a fire.
Standards
RoHS
