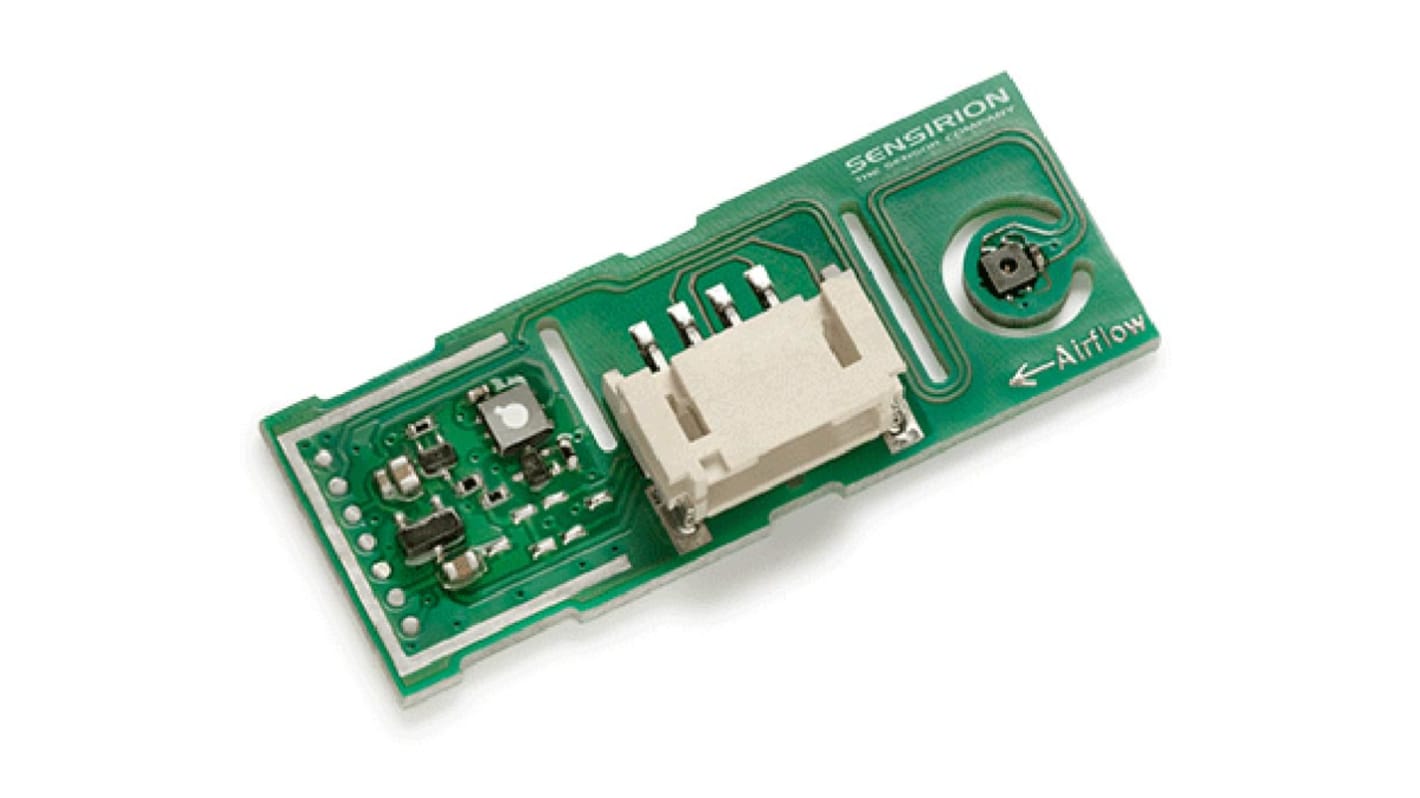

Sensirion SVM30-J, tVOC, CO2 eq Air Quality Sensor for CO2 Equivalent, Relative Humidity, Temperature, TVOC Measurement
- RS Stock No.:
- 195-0685
- Mfr. Part No.:
- SVM30-J
- Brand:
- Sensirion
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 195-0685
- Mfr. Part No.:
- SVM30-J
- Brand:
- Sensirion
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensirion | |
| Gases Detected | tVOC, CO2 eq | |
| Accuracy | ±1 (Temperature) °C, ±5 % RH, 15 (Indoor Air Quality) % | |
| Response Time | 8s | |
| Application | CO2 Equivalent, Relative Humidity, Temperature, TVOC Measurement | |
| Sensor Type | Air Quality Sensors | |
| Power Source | External Power Supply 5 Vdc | |
| Dimensions | 39 x 15 x 6.5mm | |
| Minimum Operating Temperature | -20 °C | |
| Maximum Operating Temperature | +85 °C | |
Select all | ||
|---|---|---|
Brand Sensirion | ||
Gases Detected tVOC, CO2 eq | ||
Accuracy ±1 (Temperature) °C, ±5 % RH, 15 (Indoor Air Quality) % | ||
Response Time 8s | ||
Application CO2 Equivalent, Relative Humidity, Temperature, TVOC Measurement | ||
Sensor Type Air Quality Sensors | ||
Power Source External Power Supply 5 Vdc | ||
Dimensions 39 x 15 x 6.5mm | ||
Minimum Operating Temperature -20 °C | ||
Maximum Operating Temperature +85 °C | ||
- COO (Country of Origin):
- CN
Based on Sensirion’s experience and expertise in environmental sensing, the SVM30 is optimized for easy design-in and sensing performance. It is a multi-gas, humidity and temperature sensor combo module containing a SGP30 gas sensor as well as a SHTC1 humidity and temperature sensor.
The SGP30 gas sensor combines multiple metal-oxide sensing elements – the pixels – on one chip, thereby offering the possibility to measure a total VOC signal (tVOC) and a CO2 equivalent signal (CO2eq) with one single sensor chip. The SVM30 further offers calibrated air quality output signals as well as compensation of humidity cross-sensitivity.
The gas sensing element features an unmatched robustness against contamination by siloxanes present in real-world applications enabling unique long-term stability and low drift. Furthermore, the integrated SHTC1 humidity and temperature sensor covers a humidity measurement range of 0 to 100% relative humidity (RH). The gas, humidity and temperature sensor components are designed with Sensirion’s proven CMOSens® Technology.
The SGP30 gas sensor combines multiple metal-oxide sensing elements – the pixels – on one chip, thereby offering the possibility to measure a total VOC signal (tVOC) and a CO2 equivalent signal (CO2eq) with one single sensor chip. The SVM30 further offers calibrated air quality output signals as well as compensation of humidity cross-sensitivity.
The gas sensing element features an unmatched robustness against contamination by siloxanes present in real-world applications enabling unique long-term stability and low drift. Furthermore, the integrated SHTC1 humidity and temperature sensor covers a humidity measurement range of 0 to 100% relative humidity (RH). The gas, humidity and temperature sensor components are designed with Sensirion’s proven CMOSens® Technology.
