ABB 3 Phase LCD Energy MeterDirect Connected
- RS Stock No.:
- 789-4108
- Mfr. Part No.:
- 2CMA170522R1000 A43 212-100
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£306.37
(exc. VAT)
£367.64
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £306.37 |
| 5 - 9 | £291.04 |
| 10 - 24 | £275.72 |
| 25 - 49 | £260.43 |
| 50 + | £245.11 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£231.04
(exc. VAT)
£277.25
(inc. VAT)
- RS Stock No.:
- 789-4108
- Mfr. Part No.:
- 2CMA170522R1000 A43 212-100
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Series | A43 | |
| Display Type | LCD | |
| Number of Phases | 3 | |
| Number of Inputs | 1 | |
| Number of Outputs | 1 | |
| Communication Port Type | RS485 | |
| Pulse Output | Yes | |
| Depth | 65mm | |
| Meter Accuracy | 1 % | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +70°C | |
| Meter Type | Direct Connected | |
Select all | ||
|---|---|---|
Brand ABB | ||
Series A43 | ||
Display Type LCD | ||
Number of Phases 3 | ||
Number of Inputs 1 | ||
Number of Outputs 1 | ||
Communication Port Type RS485 | ||
Pulse Output Yes | ||
Depth 65mm | ||
Meter Accuracy 1 % | ||
Minimum Temperature -40°C | ||
Maximum Temperature +70°C | ||
Meter Type Direct Connected | ||

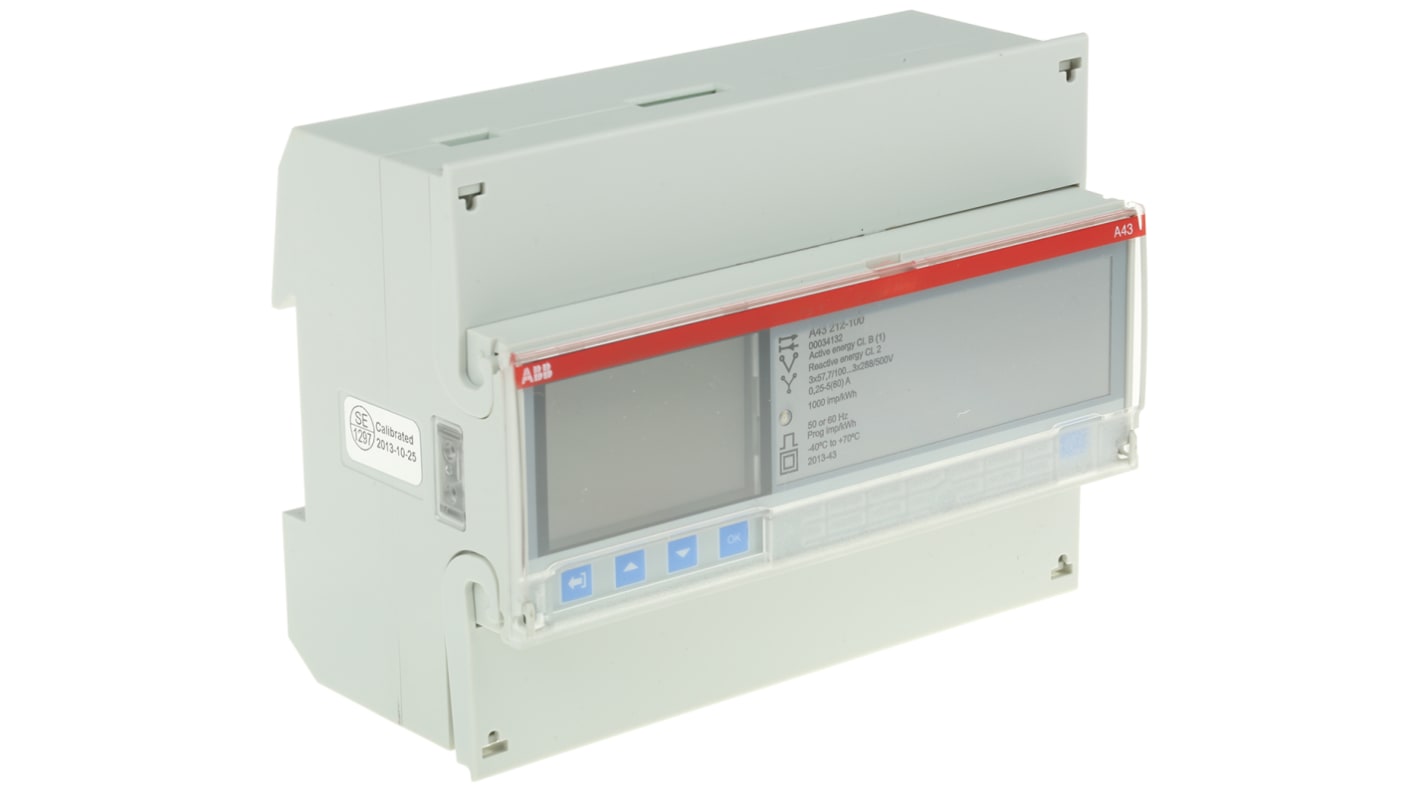

ABB Energy Meter, 80A Current Rating, DIN Rail Mounting - A43 Series - 2CMA170522R1000
Keep a firm hand on power use in your workplace with this energy meter from ABB. Its four-pole construction makes it suitable for use in three-wire and four-wire systems, so you can assess multiple circuits at the same time. Thanks to an accuracy of 1%, it's built for precise tracking. The polycarbonate enclosure provides reliable impact protection, making this the right choice for use in harsh industrial settings. As the housing also offers insulation, it reduces the risk of electric shocks from contact with live parts, ensuring user safety.
Features & Benefits
• Consumes just 0.8W of power, so it's an energy-efficient measurement solution
• Large display for easy reading of measured values
• Integrated backlight provides illumination for assessment in low-light areas
• Current rating of 80A makes it suitable for use in high-power applications
• DIN rail mounting is simple and doesn't need tools, saving time and effort
• Large display for easy reading of measured values
• Integrated backlight provides illumination for assessment in low-light areas
• Current rating of 80A makes it suitable for use in high-power applications
• DIN rail mounting is simple and doesn't need tools, saving time and effort
Applications
• Switchgear systems
• Compressors
• Process and packaging equipment
• Compressors
• Process and packaging equipment
Can I access this meter from my computer?
Yes, this unit has a Modbus RS485 communication interface, so you can access data and configure it with your computer.
