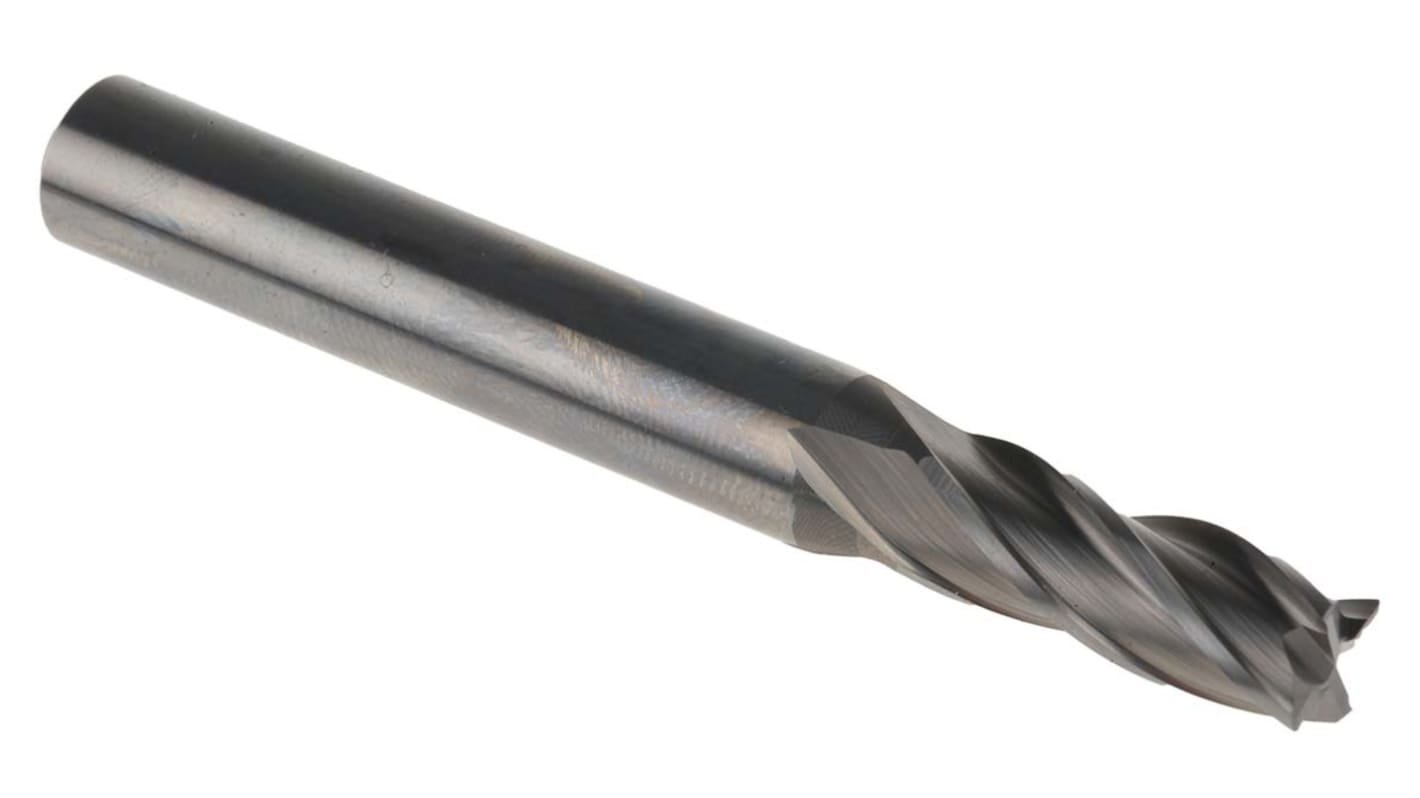

Dormer End Mill, 7mm Cutter, Solid Carbide, 8 mm Shank, 19mm Cut
- RS Stock No.:
- 666-6704
- Mfr. Part No.:
- S9047.0
- Brand:
- Dormer
Price Each
£29.75
(exc. VAT)
£35.70
(inc. VAT)
10 In stock - FREE next working day delivery available*
10 available from Europe for delivery within 1 working day(s).
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit |
---|---|
1 + | £29.75 |
- RS Stock No.:
- 666-6704
- Mfr. Part No.:
- S9047.0
- Brand:
- Dormer
RoHS Status: Not Applicable
- COO (Country of Origin):
- BR
Dormer S904 Series MC-X Carbide Universal 4 Flute End Mills
Introducing the Dormer's multi-application MC-X solid carbide end mills cutters that are manufactured from micro-grain, high-quality carbide to provide increased hardness and toughness for excellent wear-resistance and long tool life. The flute geometry of the 4 flute cutters is capable of contouring (semi-finishing and finishing), profile milling, ramping and slotting operations. All the cutters are centre cutting and have a robust chamfer design on the end teeth to reduce chipping, particularly important on materials with low machinability. As the MC-X cutters are multi-application one tool can be used in many different materials, which helps to further reduce costs and inventory. Flutes designed for optimum tool life, good swarf evacuation and continuous, trouble-free machining operation.
Dormer S904 series MC-X Carbide 4 Flute End Mills are available in a range of sizes from 2 mm to 20 mm:
S904 CARBIDE End Mill 2.0 mm - 666-6681
S904 CARBIDE End Mill 2.5 mm - 666-6690
S904 CARBIDE End Mill 3.0 mm - 666-6693
S904 CARBIDE End Mill 4.0 mm - 666-6697
S904 CARBIDE End Mill 5.0 mm - 666-6707
S904 CARBIDE End Mill 6.0 mm - 666-6700
S904 CARBIDE End Mill 7.0 mm - 666-6704
S904 CARBIDE End Mill 8.0 mm - 666-6713
S904 CARBIDE End Mill 9.0 mm - 666-6716
S904 CARBIDE End Mill 10.0 mm - 666-6710
S904 CARBIDE End Mill 12.0 mm - 666-6729
S904 CARBIDE End Mill 14.0 mm - 666-6722
S904 CARBIDE End Mill 16.0 mm - 666-6726
S904 CARBIDE End Mill 18.0 mm - 666-6735
S904 CARBIDE End Mill 20.0 mm - 666-6738
Dormer S904 series MC-X Carbide 4 Flute End Mills are available in a range of sizes from 2 mm to 20 mm:
S904 CARBIDE End Mill 2.0 mm - 666-6681
S904 CARBIDE End Mill 2.5 mm - 666-6690
S904 CARBIDE End Mill 3.0 mm - 666-6693
S904 CARBIDE End Mill 4.0 mm - 666-6697
S904 CARBIDE End Mill 5.0 mm - 666-6707
S904 CARBIDE End Mill 6.0 mm - 666-6700
S904 CARBIDE End Mill 7.0 mm - 666-6704
S904 CARBIDE End Mill 8.0 mm - 666-6713
S904 CARBIDE End Mill 9.0 mm - 666-6716
S904 CARBIDE End Mill 10.0 mm - 666-6710
S904 CARBIDE End Mill 12.0 mm - 666-6729
S904 CARBIDE End Mill 14.0 mm - 666-6722
S904 CARBIDE End Mill 16.0 mm - 666-6726
S904 CARBIDE End Mill 18.0 mm - 666-6735
S904 CARBIDE End Mill 20.0 mm - 666-6738
Features and Benefits:
Micrograin carbide, with high hardness and toughness properties, for excellent wear resistance and long tool life
Reinforced end teeth to reduce chipping, particularly important on materials with low machinability
Flutes designed for good swarf evacuation and a continuous, trouble-free machining operation
30º right-hand helix
Stable design for contouring (semi-finishing and finishing), ramping and slotting operations
Bright finished surface
Multi-application – one tool for milling in many materials, with the added benefit of reduced inventory
Reinforced end teeth to reduce chipping, particularly important on materials with low machinability
Flutes designed for good swarf evacuation and a continuous, trouble-free machining operation
30º right-hand helix
Stable design for contouring (semi-finishing and finishing), ramping and slotting operations
Bright finished surface
Multi-application – one tool for milling in many materials, with the added benefit of reduced inventory
Approvals and Certification:
Shank - DIN6535 HA
Typical Applications:
The end mill removes material by their movement within the milling machine or from the cutters shape. The number of flutes (spirals on the end mill) give different results e.g.:
2 flute design allows for more chip carrying capacity and is used primarily in slotting and pocketing non-ferrous materials
3 flute design have the same flute space as two flutes, but also have a larger cross-section for greater strength. They are used for pocketing and slotting ferrous and nonferrous materials.
4, 5, 6 and 8 flute designs allow for faster feed rates, but due to the reduced flute space, chip removal may be a problem. They produce a much finer finish than two and three flute tools. Ideal for peripheral and finish milling.
End mills are used for:
profiling
milling,
side milling
face milling,
tracer milling,
plunge milling
ramping
semi-finishing
finishing
2 flute design allows for more chip carrying capacity and is used primarily in slotting and pocketing non-ferrous materials
3 flute design have the same flute space as two flutes, but also have a larger cross-section for greater strength. They are used for pocketing and slotting ferrous and nonferrous materials.
4, 5, 6 and 8 flute designs allow for faster feed rates, but due to the reduced flute space, chip removal may be a problem. They produce a much finer finish than two and three flute tools. Ideal for peripheral and finish milling.
End mills are used for:
profiling
milling,
side milling
face milling,
tracer milling,
plunge milling
ramping
semi-finishing
finishing
FAQs:
What is this end mill made from?
The MC-X series end mills from Dormer are manufactured from a high-quality carbide.
Are carbide end mills better than HSS?
Carbide end mills provide better rigidity and can be run 2-3X faster than HSS.
The MC-X series end mills from Dormer are manufactured from a high-quality carbide.
Are carbide end mills better than HSS?
Carbide end mills provide better rigidity and can be run 2-3X faster than HSS.
Dormer End Mill, 19mm Cut Length, 8mm Shank Diameter - S9047.0
This solid carbide Dormer end mill with a 7mm cutter diameter and centre cutting feature is designed for high precision milling operations in various materials. It offers exceptional wear resistance, long tool life, and high productivity, making it a valuable tool in the manufacturing industry.
Features & Benefits
• Constructed from high-quality solid carbide material for excellent wear resistance and long tool life
• Enables the end mill to plunge directly into the material for efficient machining operations
• 7mm cutter diameter is ideal for precise milling operations on workpieces of various sizes
• Plain shank features a plain shank design for secure tool holding and stability during milling
• Achieves high productivity levels due to its efficient design and cutting capabilities
• Enables the end mill to plunge directly into the material for efficient machining operations
• 7mm cutter diameter is ideal for precise milling operations on workpieces of various sizes
• Plain shank features a plain shank design for secure tool holding and stability during milling
• Achieves high productivity levels due to its efficient design and cutting capabilities
Applications
• Suitable for contouring operations in semi-finishing and finishing
• Ideal for ramping operations to create grooves, contours, and other features on the workpiece
• Effective for slotting operations to create slots and channels in the material
• Can be used for milling operations in a wide range of materials, offering versatility and reduced inventory needs
• Ideal for ramping operations to create grooves, contours, and other features on the workpiece
• Effective for slotting operations to create slots and channels in the material
• Can be used for milling operations in a wide range of materials, offering versatility and reduced inventory needs
Can it be used for slotting operations?
Yes, the Dormer end mill is suitable for slotting operations, offering high productivity and precise results.
Will it work on stainless steel?
Yes, the end mill is designed for multi-application milling, including stainless steel materials.
Is it suitable for contouring operations?
Yes, it is ideal for contouring in both semi-finishing and finishing applications.
Can it be used for multi-material milling?
Yes, the end mill is capable of milling in various materials, making it a versatile tool for different workpieces.
Does it offer high wear resistance?
Yes, it provides excellent wear resistance for extended tool life and consistent performance.
Attribute | Value |
---|---|
Cutter Diameter | 7mm |
Cut Length | 19mm |
Number of Flutes | 4 |
Material | Solid Carbide |
Overall Length | 63 mm |
Shank Type | Plain |
Shank Diameter | 8 mm |
Centre Cutting | Yes |
Diameter Tolerance | H12 |
