Dormer End Mill, 4.5mm Cutter, HSCo, 6 mm Shank, 19mm Cut Length
- RS Stock No.:
- 359-6841
- Mfr. Part No.:
- C273-4.50
- Brand:
- Dormer

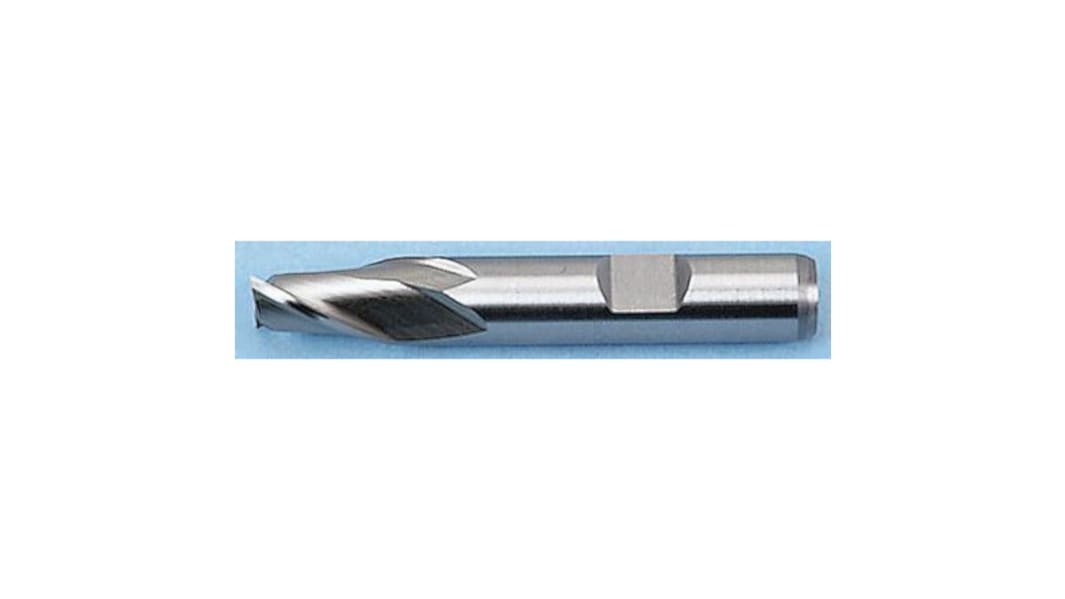

Image representative of range
Subtotal (1 unit)*
£31.20
(exc. VAT)
£37.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £31.20 |
*price indicative
- RS Stock No.:
- 359-6841
- Mfr. Part No.:
- C273-4.50
- Brand:
- Dormer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Dormer | |
Cutter Diameter | 4.5mm | |
Cut Length | 19mm | |
Material | HSCo | |
Overall Length | 63 mm | |
Shank Type | Weldon | |
Shank Diameter | 6 mm | |
Centre Cutting | Yes | |
Select all | ||
---|---|---|
Brand Dormer | ||
Cutter Diameter 4.5mm | ||
Cut Length 19mm | ||
Material HSCo | ||
Overall Length 63 mm | ||
Shank Type Weldon | ||
Shank Diameter 6 mm | ||
Centre Cutting Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
C273 HSCo long length end mill in 2 sizes for finishing work
A range of long cobalt end mills (steel quality HSCo 8% Co) with a cylindrical shank and flat face.
The shank diameter tolerance class is H6 and the cutting diameter is K10.
Helix geometry is 30° right-handed and the cutting angle is 12°.
Specially designed for finishing work.
The shank diameter tolerance class is H6 and the cutting diameter is K10.
Helix geometry is 30° right-handed and the cutting angle is 12°.
Specially designed for finishing work.
Standards
ISO 1641 and DIN 844 L B
Flatted Shank - HSCo
These slot drills have a parallel shank with flats, diameter tolerance e8 (undersize h10), 3 flute, short length, centre cutting, 30° spiral, HSCo 8%. They are to DIN327 form D. Applications include keyway and slot milling, and production of closed slots by plunge feeding.
