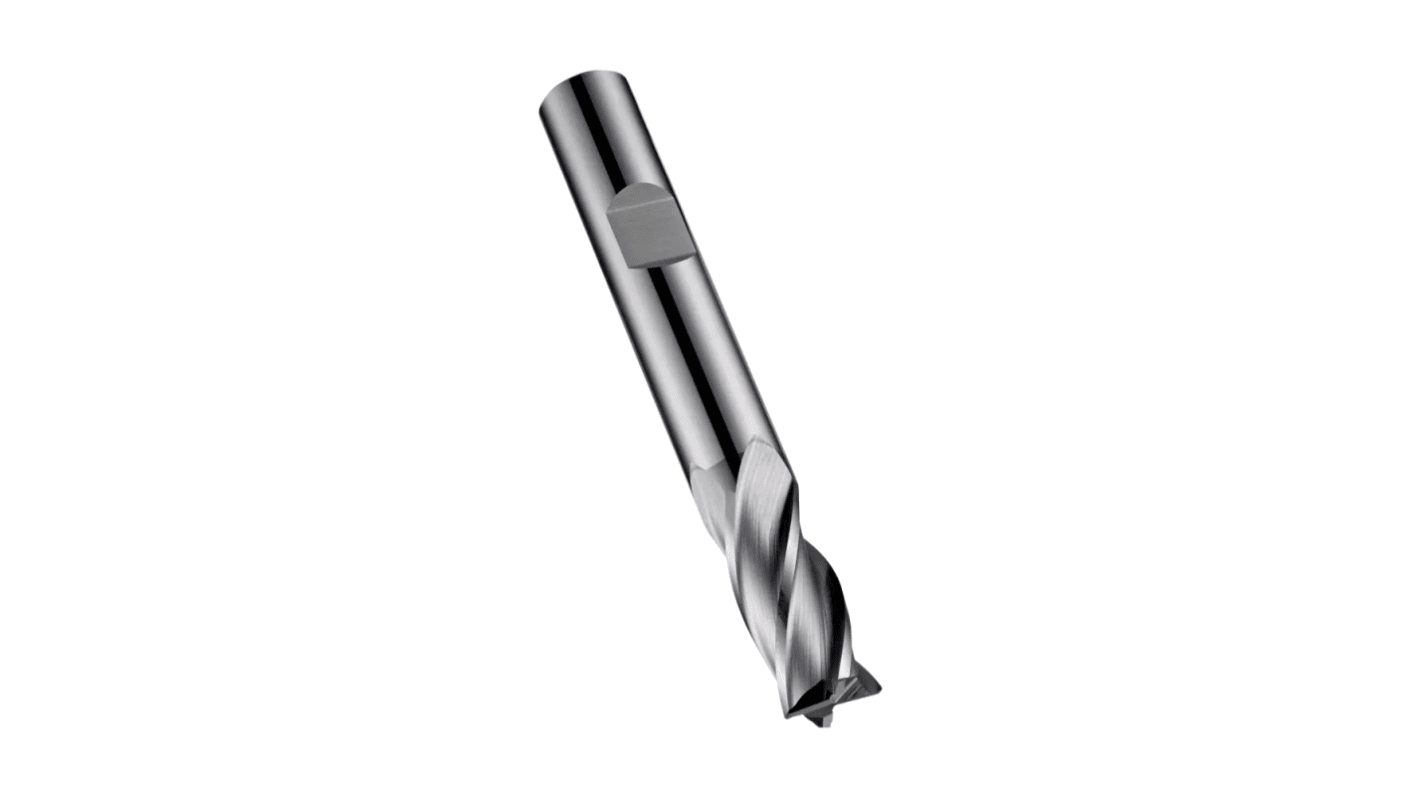

Dormer End Mill, 12 mm Cutter, High Speed Steel, 12mm Shank, 25 mm Cut Length
- RS Stock No.:
- 637-495
- Mfr. Part No.:
- S94412.0
- Brand:
- Dormer
Subtotal (1 unit)*
£26.27
(exc. VAT)
£31.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 16 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.27 |
*price indicative
- RS Stock No.:
- 637-495
- Mfr. Part No.:
- S94412.0
- Brand:
- Dormer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dormer | |
| Product Type | End Mill | |
| Cutter Diameter | 12mm | |
| Cut Length | 25mm | |
| Number of Flutes | 3 | |
| Material | High Speed Steel | |
| Number of Pieces | 1 | |
| Overall Length | 73mm | |
| Shank Type | Cylindrical | |
| Shank Diameter | 12mm | |
| Centre Cutting | Yes | |
| Finish | Bright, Titanium Aluminium Nitride, Alcrona | |
| Standards/Approvals | ISO 13399 | |
| Select all | ||
|---|---|---|
Brand Dormer | ||
Product Type End Mill | ||
Cutter Diameter 12mm | ||
Cut Length 25mm | ||
Number of Flutes 3 | ||
Material High Speed Steel | ||
Number of Pieces 1 | ||
Overall Length 73mm | ||
Shank Type Cylindrical | ||
Shank Diameter 12mm | ||
Centre Cutting Yes | ||
Finish Bright, Titanium Aluminium Nitride, Alcrona | ||
Standards/Approvals ISO 13399 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BR
The Dormer 4-Flute Solid Carbide End Mill is designed for high-performance milling with a medium cut length and a 30 degree helix that offers excellent rigidity and smooth chip evacuation. Ideal for machining standard slots. Enhanced with a TiAlN coating, it delivers superior heat resistance and extended tool life, making it well-suited for demanding, high-speed applications in a variety of materials.
Hard Material
General Purpose Cutter Type for Low to High Resistance Materials
DIN 6535 HA Cylindrical Shank
Used for shallow and deep shoulder milling
Used for ramping
