STEGO Enclosure Heater, 120V ac/dc, 240 V ac/dc, 8W Output, 180 °C 25mm x 14 mm
- RS Stock No.:
- 270-9874
- Mfr. Part No.:
- 01651.0-00
- Brand:
- STEGO
Subtotal (1 unit)*
£11.86
(exc. VAT)
£14.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 62 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.86 |
*price indicative
- RS Stock No.:
- 270-9874
- Mfr. Part No.:
- 01651.0-00
- Brand:
- STEGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STEGO | |
| Output Power | 8W | |
| Product Type | Enclosure Heater | |
| Supply Voltage | 120, 240V ac/dc | |
| Surface Temperature | 180°C | |
| Mount Type | Screw Fixing | |
| Depth | 14mm | |
| Connection Type | Connection Cable | |
| Width | 25mm | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -45°C | |
| Mounting Position | Variable | |
| Insulated PTC | Yes | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL File No. E234324, VDE | |
| Series | RC 016 | |
| Select all | ||
|---|---|---|
Brand STEGO | ||
Output Power 8W | ||
Product Type Enclosure Heater | ||
Supply Voltage 120, 240V ac/dc | ||
Surface Temperature 180°C | ||
Mount Type Screw Fixing | ||
Depth 14mm | ||
Connection Type Connection Cable | ||
Width 25mm | ||
IP Rating IP40 | ||
Minimum Operating Temperature -45°C | ||
Mounting Position Variable | ||
Insulated PTC Yes | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL File No. E234324, VDE | ||
Series RC 016 | ||

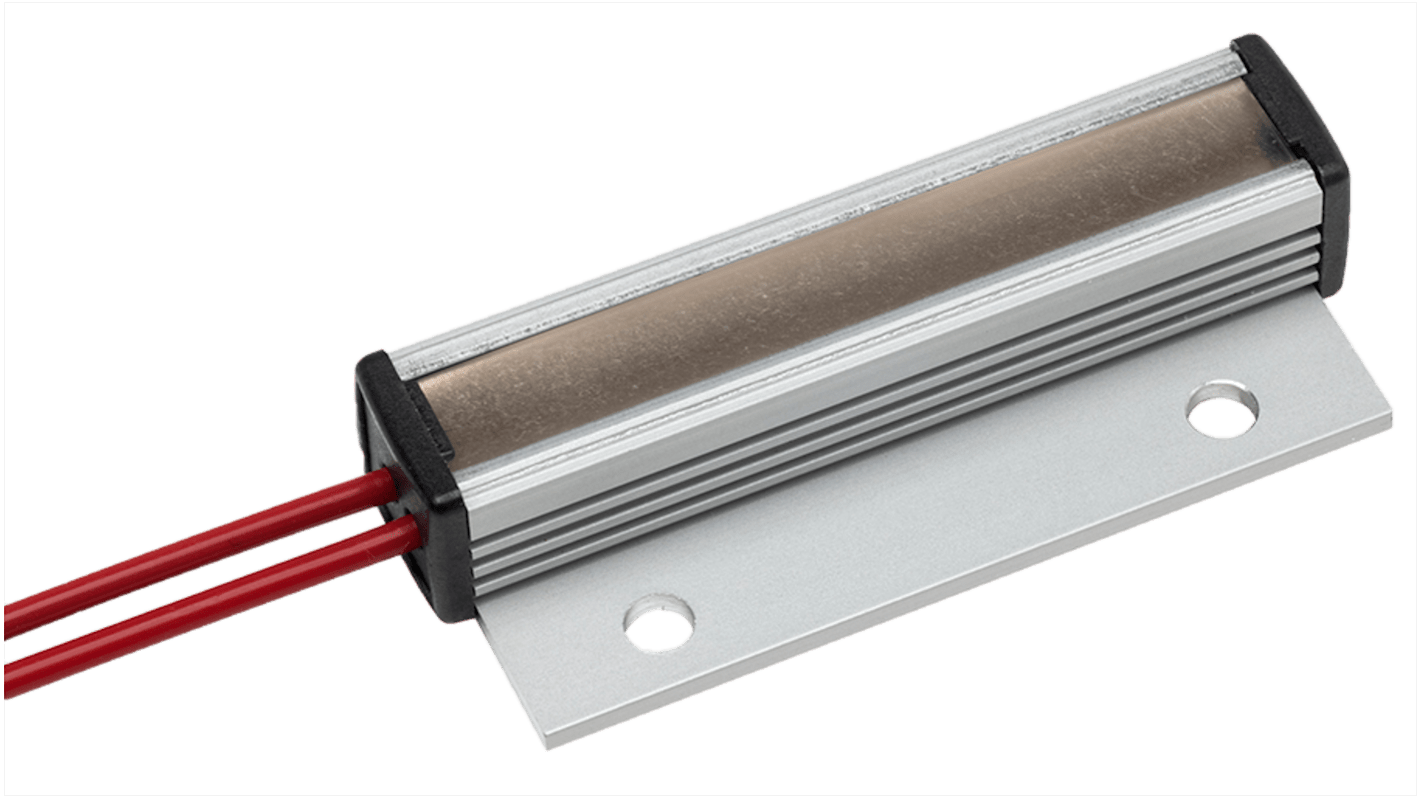

The STEGO Flat Enclosure Heater of RC 016 series are used to evenly distribute heat within compact enclosures thereby protecting electronic components from harmful condensation. This compact heater is designed for continuous operation. The unique design of its clamping increases its longevity due to the minimisation of load through thermal cycles.
Wide voltage range
Compact dimensions
High heating output per volume
PTC resistor heats up dynamically
