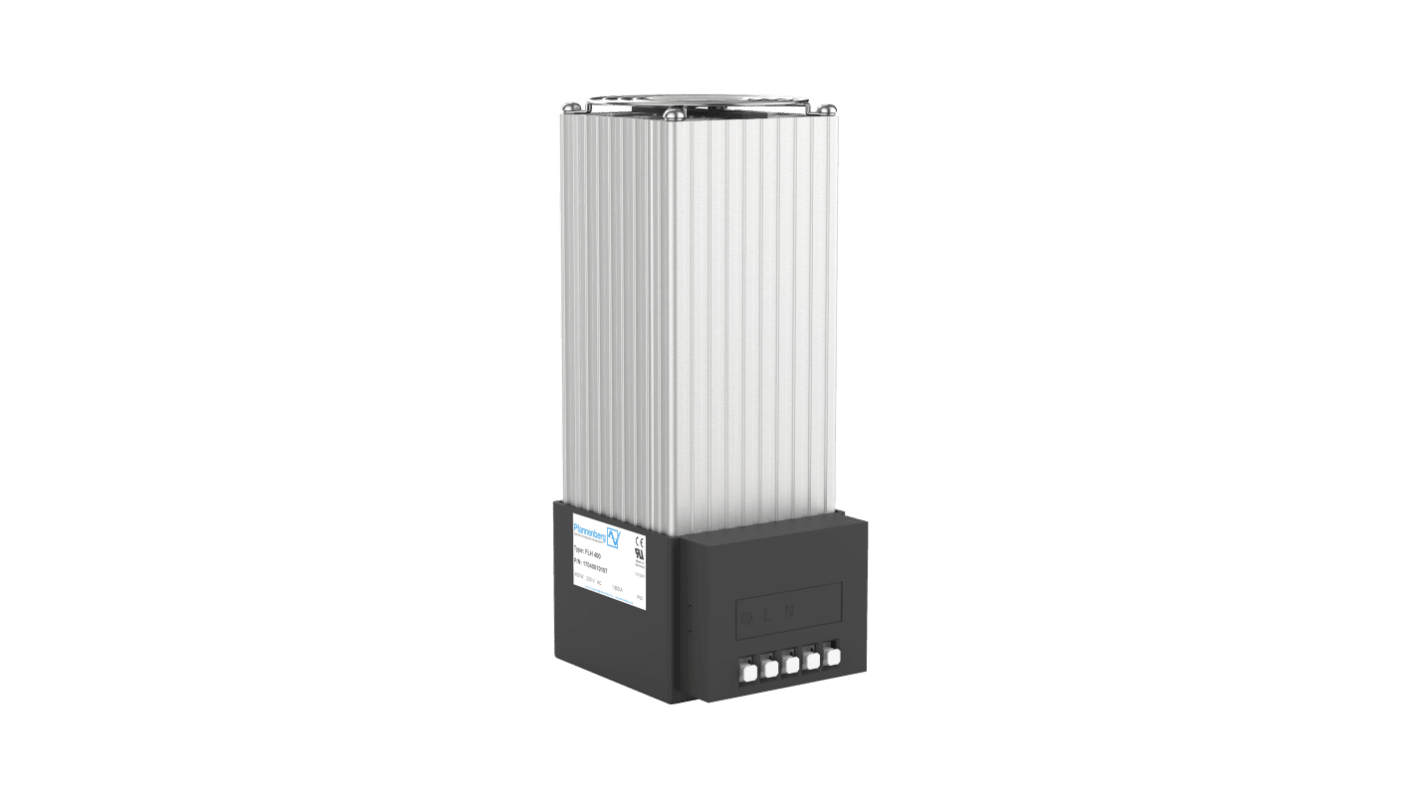

Pfannenberg Enclosure Heater, 230V, 400W Output, 400W Input, 85 °C 93mm x 227 mm
- RS Stock No.:
- 460-902
- Mfr. Part No.:
- 17040010107
- Brand:
- Pfannenberg
Stock information currently inaccessible
- RS Stock No.:
- 460-902
- Mfr. Part No.:
- 17040010107
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Output Power | 400W | |
| Product Type | Enclosure Heater | |
| Air Flow | 61m³/h | |
| Input Power | 400W | |
| Supply Voltage | 230V | |
| Surface Temperature | 85°C | |
| Depth | 227mm | |
| Width | 93mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Insulated PTC | Yes | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | cURus, EAC | |
| Series | FLH | |
| Frequency | 60Hz | |
| Height | 227mm | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Output Power 400W | ||
Product Type Enclosure Heater | ||
Air Flow 61m³/h | ||
Input Power 400W | ||
Supply Voltage 230V | ||
Surface Temperature 85°C | ||
Depth 227mm | ||
Width 93mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Insulated PTC Yes | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals cURus, EAC | ||
Series FLH | ||
Frequency 60Hz | ||
Height 227mm | ||
- COO (Country of Origin):
- DE
The Pfannenberg Fan heaters come in two versions and are ideal for use in larger electrical enclosures. They feature an integrated fan that enhances natural convection, ensuring efficient heat distribution and maintaining optimal temperatures within the enclosure. The fan heater from the FLH series is ideal for use in larger electrical cabinets. It has an integrated fan that assists the natural convection, thus ensuring fast and even distribution of the heat in the electrical cabinet. The fan heaters are mainly used in combination with a thermostat or hygrostat to prevent low temperatures or high humidity in the electrical cabinet, preventing condensation from forming and thereby preventing corrosion or electrical short circuits.
Available with 250W and 400W heating performance
Can be used between -40C and 70C
Heat distribution: The fan and the powerful heat output ensure quick and even distribution of heat
Long life and robust construction with integrated fan which supports the natural convection
Mounting: Integrated snap fastening for 35mm-DIN-rail
Electrical connection via plug terminal connector
Versions are available in a slim-line design SL for limited space
Approvals: cURus, EAC
