RS PRO Emergency Light Test Switch for use with Emergency Lighting
- RS Stock No.:
- 298-2774
- Brand:
- RS PRO
Subtotal (1 unit)*
£121.04
(exc. VAT)
£145.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 33 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £121.04 |
*price indicative
- RS Stock No.:
- 298-2774
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
For Use With | Emergency Lighting | |
Select all | ||
---|---|---|
Brand RS PRO | ||
For Use With Emergency Lighting | ||
- COO (Country of Origin):
- GB

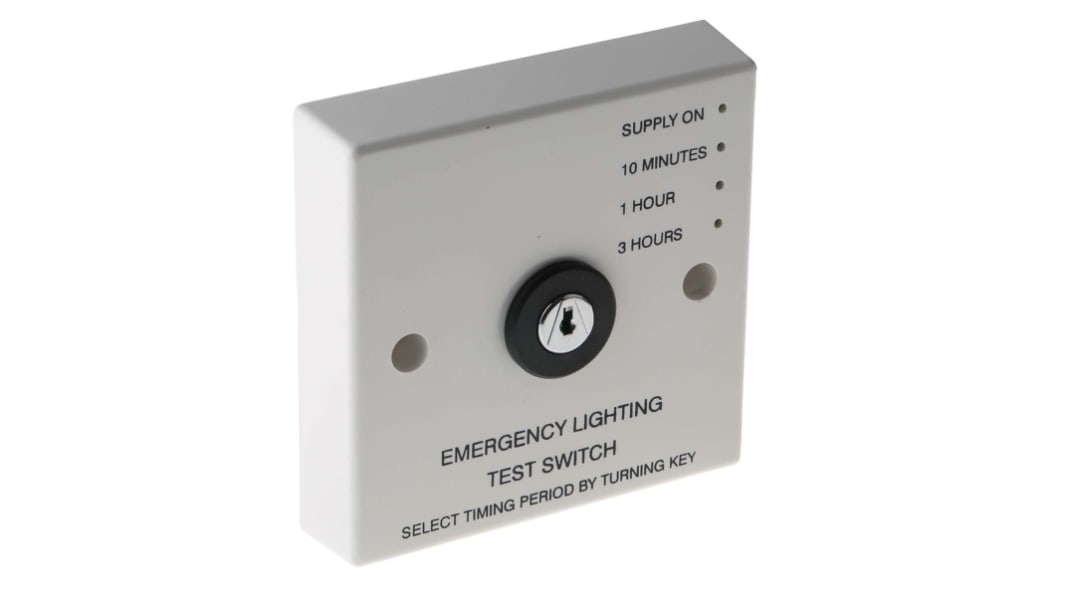

RS PRO Emergency Light Test Switch
This automatic emergency lighting test switch from our high-quality own brand RS PRO is designed to test the function of emergency lighting.
It is made from high-quality flame retardant ABS material able to withstand temperature range from -10°C to 35°C. A key switch is used to interrupt the supply to the lighting for a pre-programmed period of time. At the end of this period the supply to the lighting is automatically re-installed. This will then prevent no risk of exhausting the battery in the emergency fitting. Another advantage of this emergency lighting test switch is allowance of up to 1.4kW of fluorescent lighting which can be connected to a unit on a single circuit.
It is made from high-quality flame retardant ABS material able to withstand temperature range from -10°C to 35°C. A key switch is used to interrupt the supply to the lighting for a pre-programmed period of time. At the end of this period the supply to the lighting is automatically re-installed. This will then prevent no risk of exhausting the battery in the emergency fitting. Another advantage of this emergency lighting test switch is allowance of up to 1.4kW of fluorescent lighting which can be connected to a unit on a single circuit.
You can choose from 3 pre-programmed test intervals:
• 10 minutes
• 1 hour
• 3 hours
• 10 minutes
• 1 hour
• 3 hours
Features
• Supply Voltage of 220-240 Volts
• Fixing method: Surface fixing 25mm deep plastic surface mount moulded box
Flush fixing 25mm steel wall box or 32mm deep cavity wall box
• Terminal Capacity: 2.5mm2
• Key switch for secure access
• Works with any type of lamp
• Fixing method: Surface fixing 25mm deep plastic surface mount moulded box
Flush fixing 25mm steel wall box or 32mm deep cavity wall box
• Terminal Capacity: 2.5mm2
• Key switch for secure access
• Works with any type of lamp
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Note
Backbox is not supplied and can be found here 222-8109
Emergency Light Fittings
There are two basic types of emergency lighting luminaires - maintained and non-maintained.
Maintained, these luminaires have the advantage of being able to be switched between the maintained function (lamp illuminated at all times) and non-maintained (lamp off until power supply fails), making them ideal for applications such as corridors, workshops and permanently illuminated emergency exit signs. The maintained luminaires also have the facility of being switched in banks of up to ten units.
Non-maintained, these luminaires are only illuminated on a failure of the mains supply. Ideal for emergency exits, switchrooms and storage areas.
Maintained, these luminaires have the advantage of being able to be switched between the maintained function (lamp illuminated at all times) and non-maintained (lamp off until power supply fails), making them ideal for applications such as corridors, workshops and permanently illuminated emergency exit signs. The maintained luminaires also have the facility of being switched in banks of up to ten units.
Non-maintained, these luminaires are only illuminated on a failure of the mains supply. Ideal for emergency exits, switchrooms and storage areas.
