Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

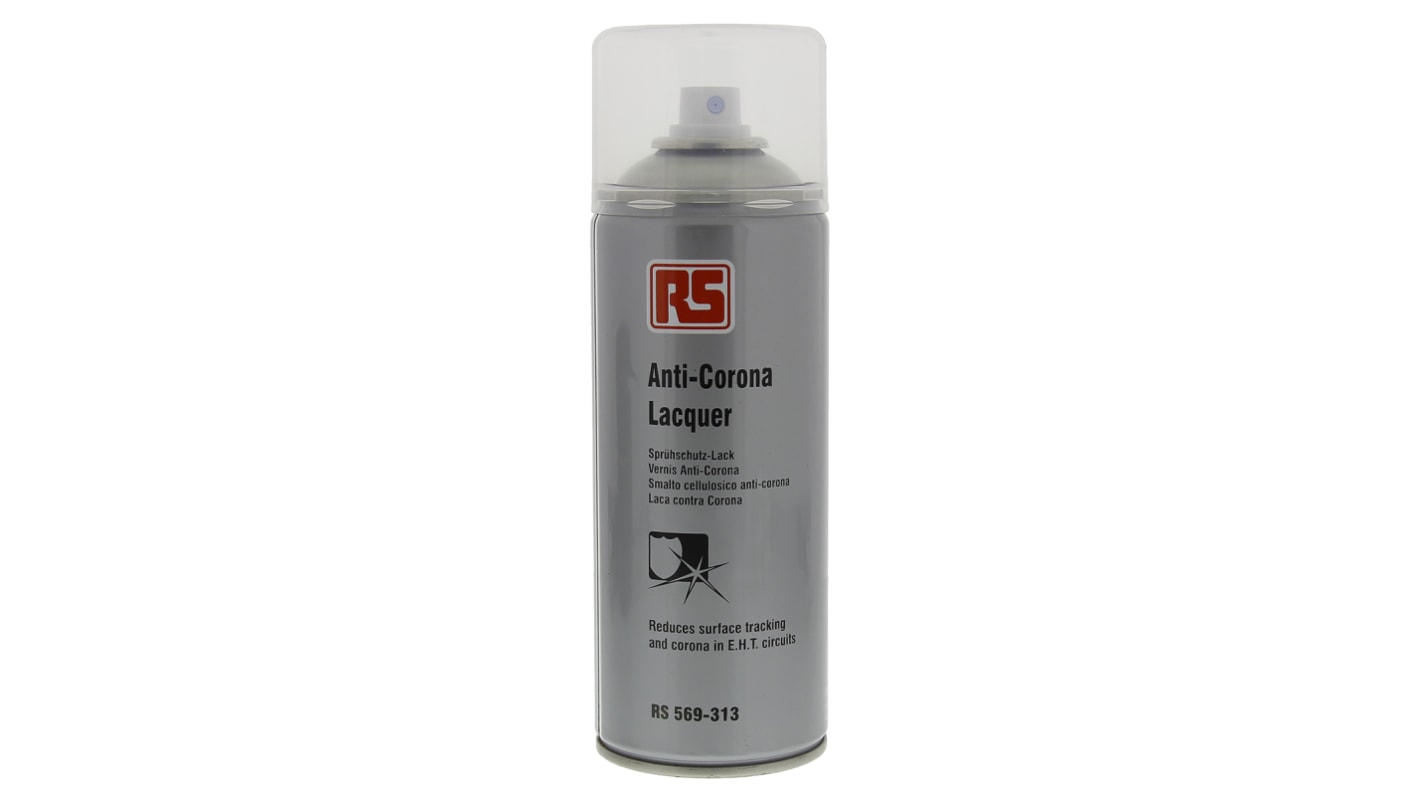

Anti-Corona Lacquer
Clear, pliable, moisture repellent lacquer, designed to reduce surface tracking and corona in EHT circuitry.
Suitable for assembled P.C.B.'s, transformer windings and component protection
No need to remove before soldering
Working temp. range: -20°C to +50°C
Dielectric strength: 42.6kV/mm
No need to remove before soldering
Working temp. range: -20°C to +50°C
Dielectric strength: 42.6kV/mm
Warning
Flammable propellant.
Lacquers
Specifications
Attribute | Value |
---|---|
Colour | Clear |
Application | Components, PCBs, Transformers |
Maximum Operating Temperature | +50°C |
Package Type | Aerosol |
Material | Acrylic |
Dielectric Strength | 42.6kV/mm |
Package Size | 400 ml |
Minimum Operating Temperature | -20°C |
