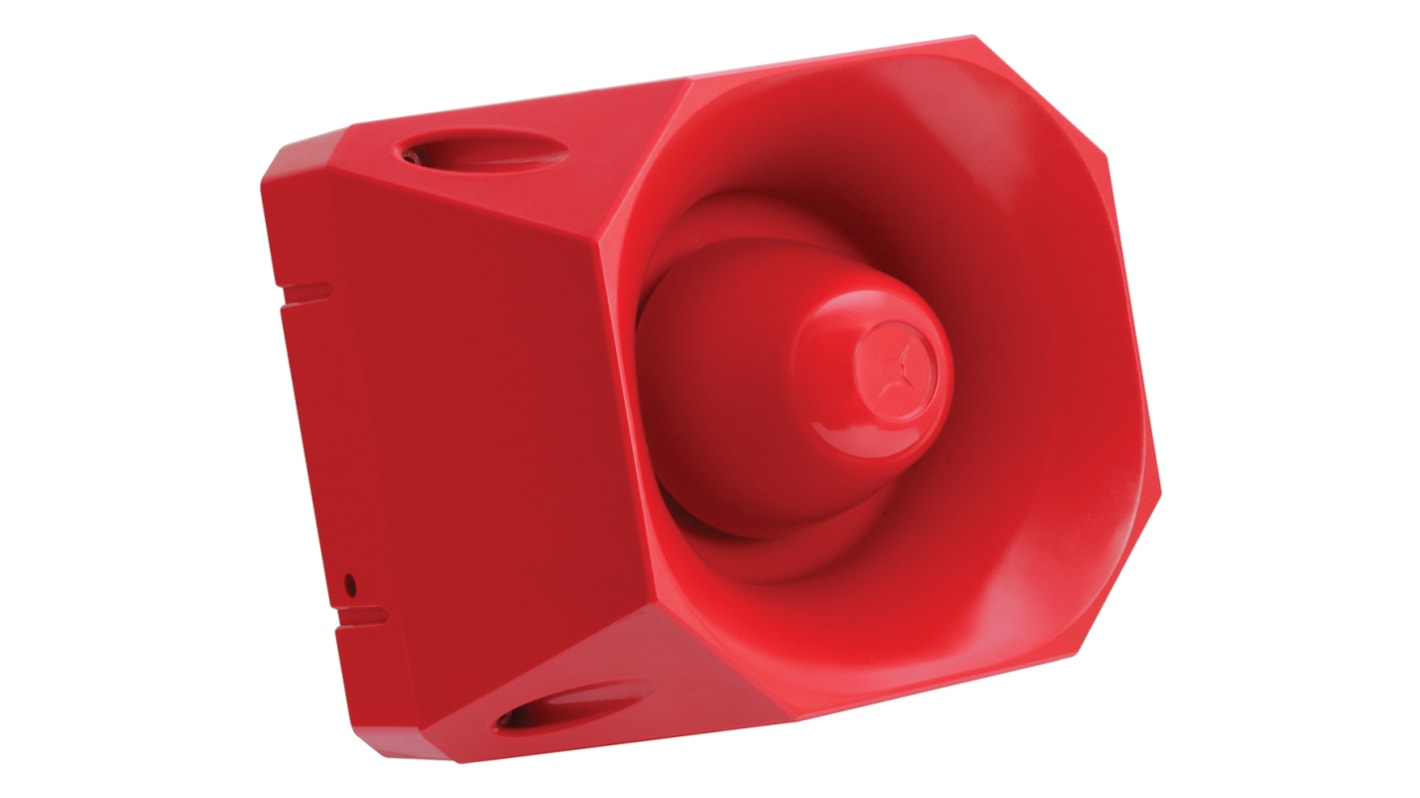

Eaton Surface Mount Electronic Sounder, 18 → 28 V dc, 120dB at 1 m, IP66, DC, 42-Tone
- RS Stock No.:
- 529-4367
- Mfr. Part No.:
- 7011114FUL-0026X
- Brand:
- Eaton
Subtotal (1 unit)*
£257.95
(exc. VAT)
£309.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £257.95 |
*price indicative
- RS Stock No.:
- 529-4367
- Mfr. Part No.:
- 7011114FUL-0026X
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Supply Voltage | 18 → 28 V dc | |
| IP Rating | IP66 | |
| Decibels at 1 Metre | 120dB | |
| Current Type | DC | |
| Number Of Tones | 42 | |
| Housing Colour | Red | |
| Mounting Style | Surface Mount | |
| Application Type | Sounder | |
| Base Length | 168mm | |
| Housing Material | ABS | |
| Minimum Temperature | -25°C | |
| Special Features | EN54 | |
| Base Width | 168mm | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Supply Voltage 18 → 28 V dc | ||
IP Rating IP66 | ||
Decibels at 1 Metre 120dB | ||
Current Type DC | ||
Number Of Tones 42 | ||
Housing Colour Red | ||
Mounting Style Surface Mount | ||
Application Type Sounder | ||
Base Length 168mm | ||
Housing Material ABS | ||
Minimum Temperature -25°C | ||
Special Features EN54 | ||
Base Width 168mm | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- GB
Fulleon Asserta Electronic Sounder - Midi & Maxi
The Asserta sounder range from Fulleon is designed for harsh industrial environments where a robust audible alarm system with extra protection is required. Asserta electronic sounders can also be easily programmed with switches inside the housing to produce a 3-stage alarm for controlled notification in challenging industrial applications.
Features and Benefits
• Asserta Maxi Sounder has 42 alarm tones and 3 alarm stages while the Asserta Midi Sounder has 32 alarm tones and 2 alarm stages
• High output sound level of 120 dB (Maxi Sounder) or 111 dB (Midi Sounder)
• Volume control (10 dB)
• Suitable for use as a fire alarm sounder or a general signalling device
• Can be used with the rest of the Asserta range of industrial beacons and sounder beacons
• Fast installation time
• All sounders have ABS Plastic housing except RS stock No. 477-4288 which has a UV stable GRP housing
• Available as a conventional sounder or sounder and beacon variants
• Red or grey housing
• IP66 rating
• High output sound level of 120 dB (Maxi Sounder) or 111 dB (Midi Sounder)
• Volume control (10 dB)
• Suitable for use as a fire alarm sounder or a general signalling device
• Can be used with the rest of the Asserta range of industrial beacons and sounder beacons
• Fast installation time
• All sounders have ABS Plastic housing except RS stock No. 477-4288 which has a UV stable GRP housing
• Available as a conventional sounder or sounder and beacon variants
• Red or grey housing
• IP66 rating
Note
Where a range of values are specified for sound output levels and current consumption, the actual figures will depend on the tone chosen, and the volume setting where adjustable.
Standards
CPD (except for 35mA versions)
Note
Eaton formerly known as Fulleon
