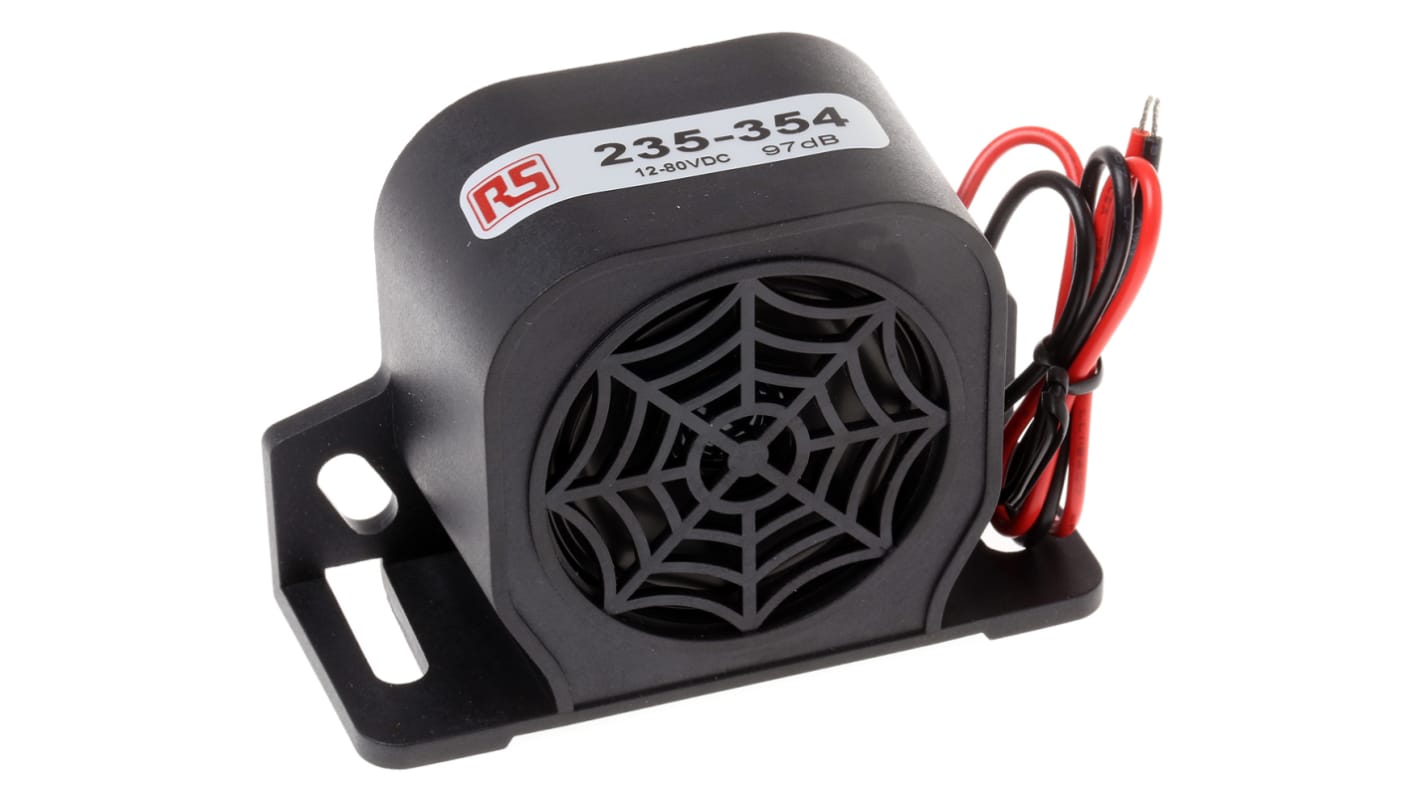

RS PRO Black Single Tone Electronic Sounder - 12 → 80 V dc, 97dB at 1 Metre

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Reversing Alarm

For on and off road vehicles and available with either stud or wire terminals, there is a 97dB version for general automotive and warehouse vehicle use, and 107dB for construction and quarry vehicle applications.

Universal mounting
12-80Vdc voltage range
Pressure washable and fully weatherproof
Reverse polarity protected
Reliable within a broad temperature range (-30°C to +77°C)

Specifications
Attribute Value
Supply Voltage 12 → 80 V dc
Decibels at 1 Metre 97dB
Current Type DC
Number Of Tones 1
Housing Colour Black
Mounting Style Universal
Application Type On/Off Road Vehicles
Maximum Decibel 97dB
Base Length 102mm
Minimum Temperature -30°C
Special Features Pressure Washable & Fully Weatherproof
Base Width 41mm
Standards Met EMC, RoHS Compliant
Maximum Temperature +70°C
Housing Material Glass Filled Nylon
Available to back order for despatch 15/01/2020
Price Each
£ 22.97
(exc. VAT)
£ 27.56
(inc. VAT)
Units
Per unit
1 - 9
£22.97
10 - 14
£21.81
15 +
£21.08
