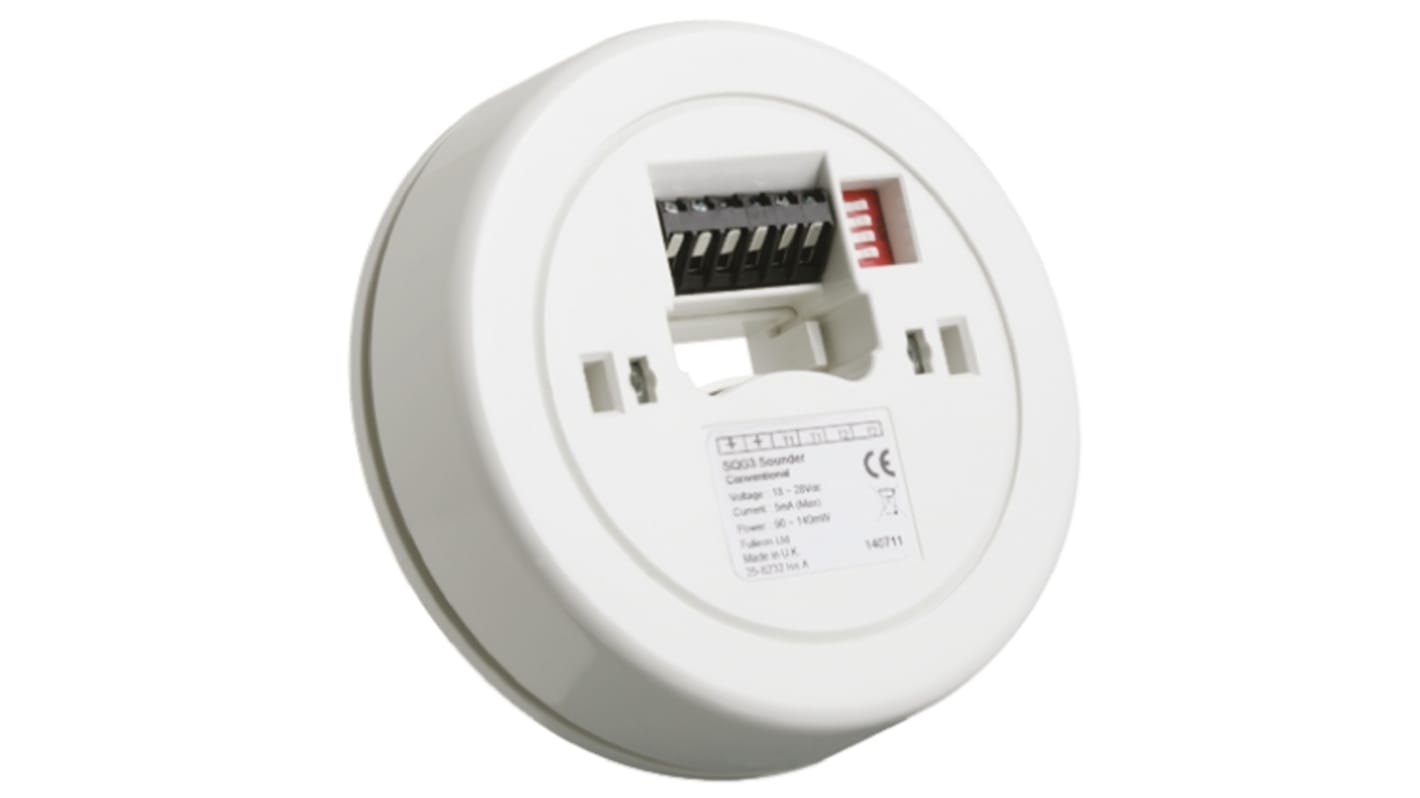

Eaton Squashni G3 Series Electronic Sounder Surface, IP21C, DC 28V dc, 5-Tone 90 dB @ 1m
- RS Stock No.:
- 180-749
- Mfr. Part No.:
- 666058FULL-0122X
- Brand:
- Eaton
Subtotal (1 unit)*
£28.00
(exc. VAT)
£33.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 44 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.00 |
*price indicative
- RS Stock No.:
- 180-749
- Mfr. Part No.:
- 666058FULL-0122X
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Electronic Sounder | |
| IP Rating | IP21C | |
| Current Type | DC | |
| Number of Tones | 5 | |
| Housing Colour | White | |
| Current Consumption | 5mA | |
| Mount Type | Surface | |
| Diameter | 114mm | |
| Maximum Supply Voltage | 28V dc | |
| Sound Level at 1m | 90dB | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Maximum Sound Level | 90dB | |
| Series | Squashni G3 | |
| Base Length | 114mm | |
| Hazardous Area Certification | NO | |
| Housing Material | ABS | |
| Base Width | 36mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Electronic Sounder | ||
IP Rating IP21C | ||
Current Type DC | ||
Number of Tones 5 | ||
Housing Colour White | ||
Current Consumption 5mA | ||
Mount Type Surface | ||
Diameter 114mm | ||
Maximum Supply Voltage 28V dc | ||
Sound Level at 1m 90dB | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Maximum Sound Level 90dB | ||
Series Squashni G3 | ||
Base Length 114mm | ||
Hazardous Area Certification NO | ||
Housing Material ABS | ||
Base Width 36mm | ||
Standards/Approvals RoHS | ||
Squashni G3 - Platform Sounder
The large flat surface allows the mounting of most popular European detectors. High efficiency and low operating current permit compatibility with many systems.
Fixing platform for most popular detectors
Low current consumption
Tamperproof cover for standalone use
First fix base for easier installation
Volume control (10dB)
Note
Optional cap available separately
Standards
CPD
