Phoenix Contact Electronic Circuit breaker 10A 24V CBM, 4 channels , DIN Rail Mount Type E

Subtotal (1 unit)*

£166.98

(exc. VAT)

£200.38

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
  • Plus 8 unit(s) shipping from 29 October 2025
  • Plus 9 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£166.98

*price indicative

RS Stock No.:
890-3796
Distrelec Article No.:
300-86-123
Mfr. Part No.:
2905743
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

CBM

Number of Channels

4

Current Rating

10A

Rated DC Voltage

24V

Tripping Characteristics

Type E

Mounting Style

DIN Rail Mount

Length

130mm

Width

41mm

Depth

121mm

COO (Country of Origin):
DE

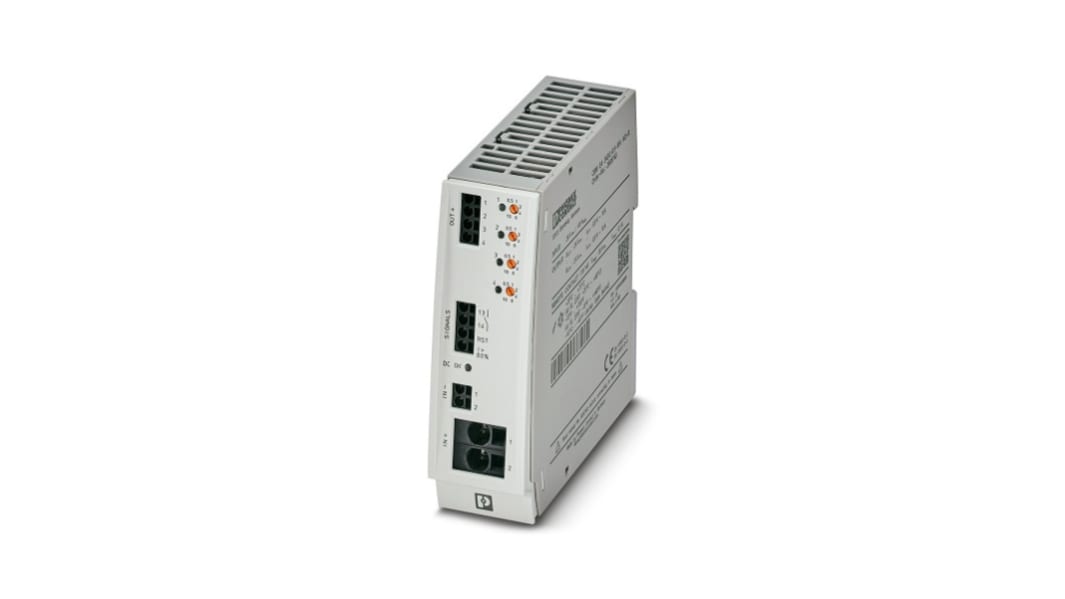

Phoenix Contact Electronic Circuit Breaker, 4 Channels, IP20 Rating - CBM E4 24DC/0.5-10A NO-R - 2905743


Wire up this Phoenix Contact electronic circuit breaker to protect your kit from overloads and short circuits. If the current exceeds 10A, the unit cuts the energy to prevent electrical damage and keep switch-mode power supplies and other equipment running smoothly. Its four channels mean it can protect four loads at 24V DC, so it's suitable for protecting complex applications.
As the breaker withstands humidity levels up to 95% RH at +40°C for up to 240 hours, you can be sure damp settings won't trip up its performance. It can also cope with a wide temperature range between -40°C and +80°C. Weighing in at just 234.6g, this ECB's lightweight and puts minimal strain on your setup.

Features & Benefits


• Current is adjustable between 0.5, 1, 2, 4, 6 and 10A DC per channel to give you greater flexibility
• Broad conductor cross-section range between 0.75 and 16mm², so it's versatile
• Slim size of 41 (W) x 130 (H) x 121mm (D) for installation in busy setups
• IP20 rating means it's touch-proof and shielded from tools larger than 12mm, for safe handling
• DIN rail-mounted for swift and simple installation
