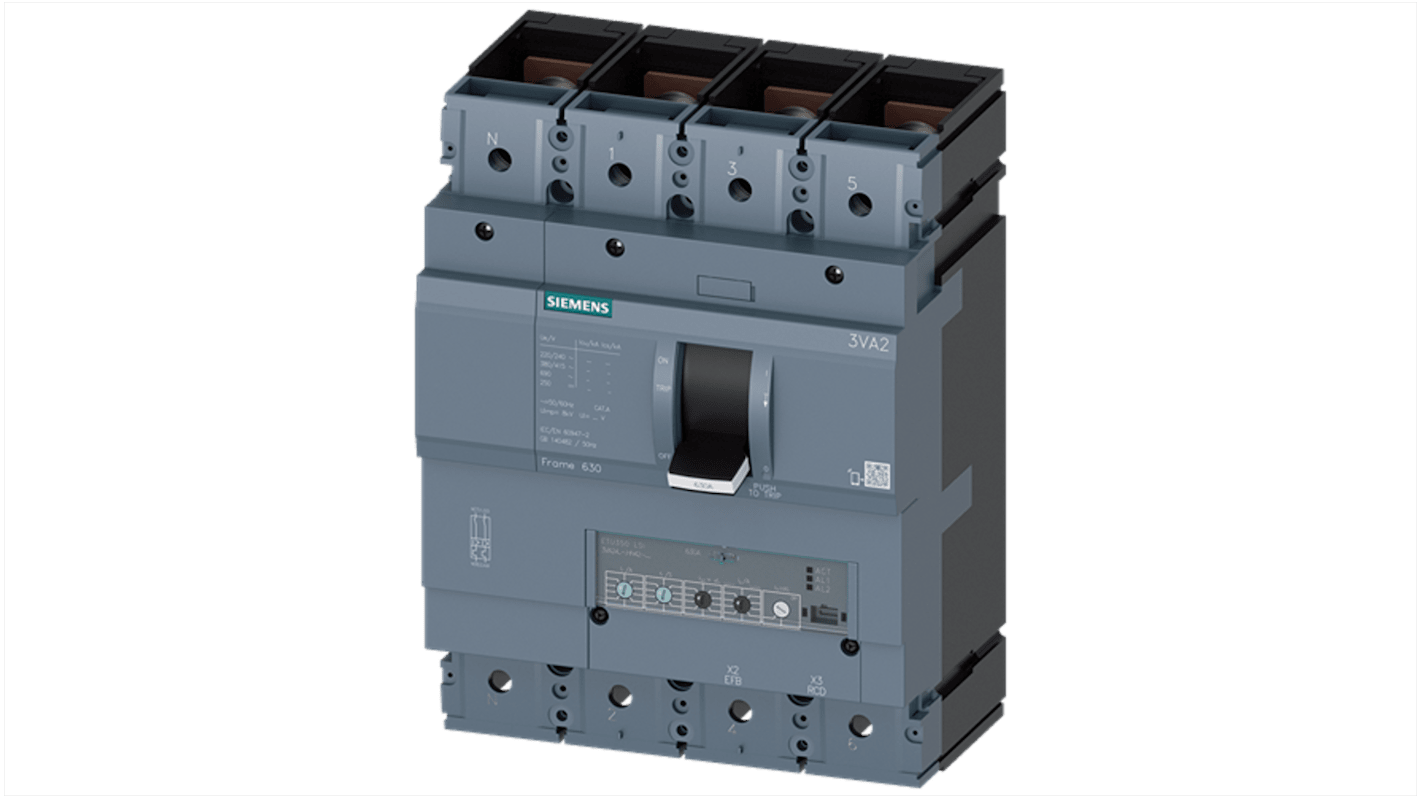

Siemens SENTRON 3VA2 Electronic Circuit Breaker 630A 690V, 4 channels Type M
- RS Stock No.:
- 160-033
- Mfr. Part No.:
- 3VA2463-5HN42-0BH0
- Brand:
- Siemens
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 160-033
- Mfr. Part No.:
- 3VA2463-5HN42-0BH0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Range | SENTRON | |
| Product Type | Electronic Circuit Breaker | |
| Series | 3VA2 | |
| Number of Channels | 4 | |
| Current Rating | 630A | |
| Breaking Capacity | 6kA | |
| Voltage | 690V | |
| Tripping Characteristics | Type M | |
| Length | 110mm | |
| Terminal Type | Front | |
| Width | 184mm | |
| Depth | 248mm | |
| Standards/Approvals | CCC, CE, EAC, RCM, UKCA, VDE | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Range SENTRON | ||
Product Type Electronic Circuit Breaker | ||
Series 3VA2 | ||
Number of Channels 4 | ||
Current Rating 630A | ||
Breaking Capacity 6kA | ||
Voltage 690V | ||
Tripping Characteristics Type M | ||
Length 110mm | ||
Terminal Type Front | ||
Width 184mm | ||
Depth 248mm | ||
Standards/Approvals CCC, CE, EAC, RCM, UKCA, VDE | ||
- COO (Country of Origin):
- CZ
The Siemens circuit breaker is engineered to provide exceptional protection with its 4-pole design, capable of handling overload and short-circuit situations with ease.
Implementable in various setups with easy connections for conductor cross-sections
Mechanical service life of 20,000 operating cycles for enhanced durability
Compact dimensions facilitate installation in space-constrained areas
IP40 protection class ensures reliable operation in challenging environments
Integrates well with optional motor drive for increased functionality
