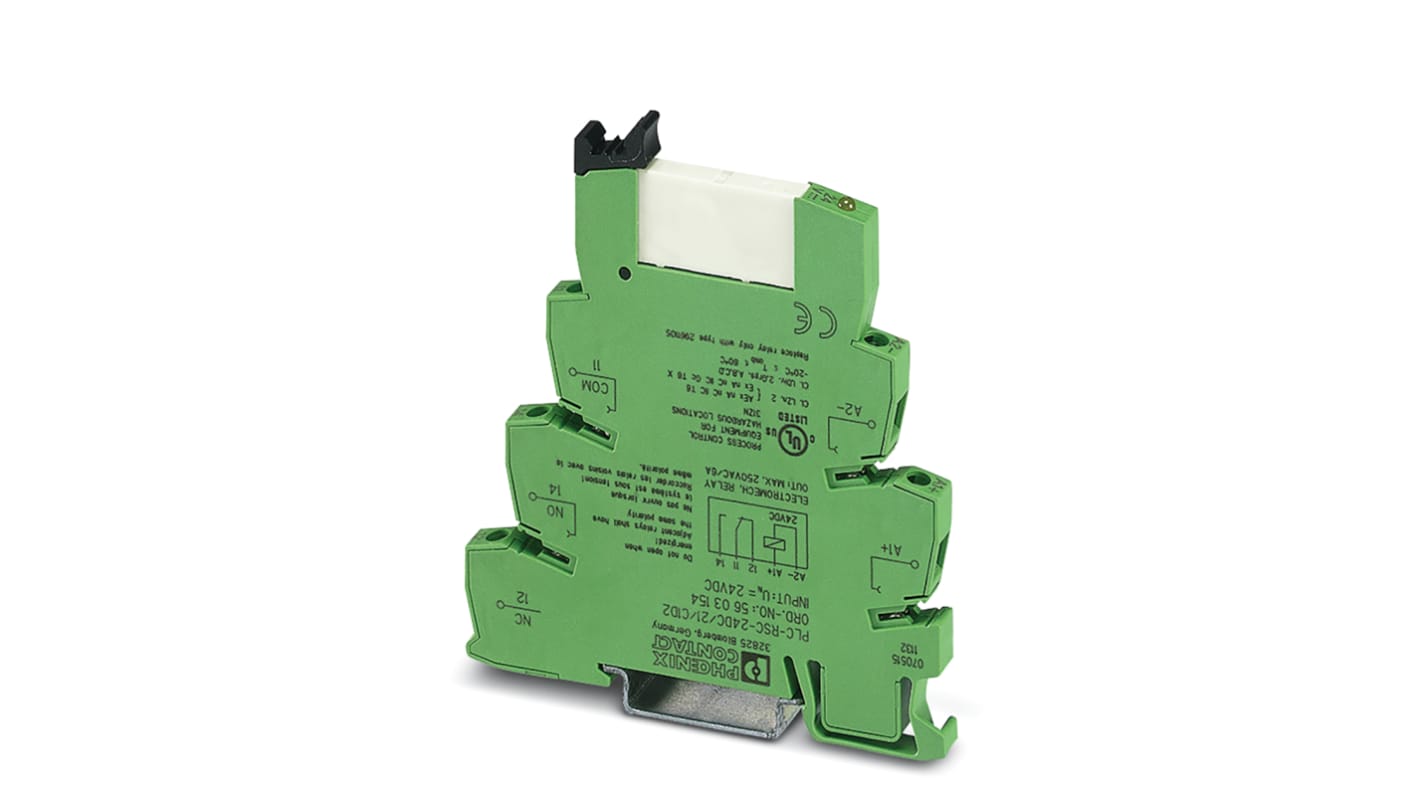

Phoenix Contact PLC-RSC- 24DC/21/C1D2 Series Interface Relay Module, DIN Rail Mount, SPDT, 1-Pole
- RS Stock No.:
- 890-3890
- Mfr. Part No.:
- 5603154
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£19.59
(exc. VAT)
£23.51
(inc. VAT)
- RS Stock No.:
- 890-3890
- Mfr. Part No.:
- 5603154
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Number of Poles | 1 | |
| Terminal Type | Plug In, Screw | |
| Depth | 6.2mm | |
| Height | 94mm | |
| Length | 80mm | |
| Series | PLC-RSC- 24DC/21/C1D2 | |
| Contact Material | Silver Alloy | |
| Input Current | 9mA | |
| Operating Temperature Range | -25 → +60°C | |
| Turn On Time | 5ms | |
| Turn Off Time | 8ms | |
| Standards Met | EN 50178, IEC 60664, IEC 62103 | |
| Relay Switching Classification | Interface Relay Module | |
| Maximum Operating Temperature | +60°C | |
| Dimensions | 80 x 6.2 x 94mm | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Terminal Type Plug In, Screw | ||
Depth 6.2mm | ||
Height 94mm | ||
Length 80mm | ||
Series PLC-RSC- 24DC/21/C1D2 | ||
Contact Material Silver Alloy | ||
Input Current 9mA | ||
Operating Temperature Range -25 → +60°C | ||
Turn On Time 5ms | ||
Turn Off Time 8ms | ||
Standards Met EN 50178, IEC 60664, IEC 62103 | ||
Relay Switching Classification Interface Relay Module | ||
Maximum Operating Temperature +60°C | ||
Dimensions 80 x 6.2 x 94mm | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- DE
