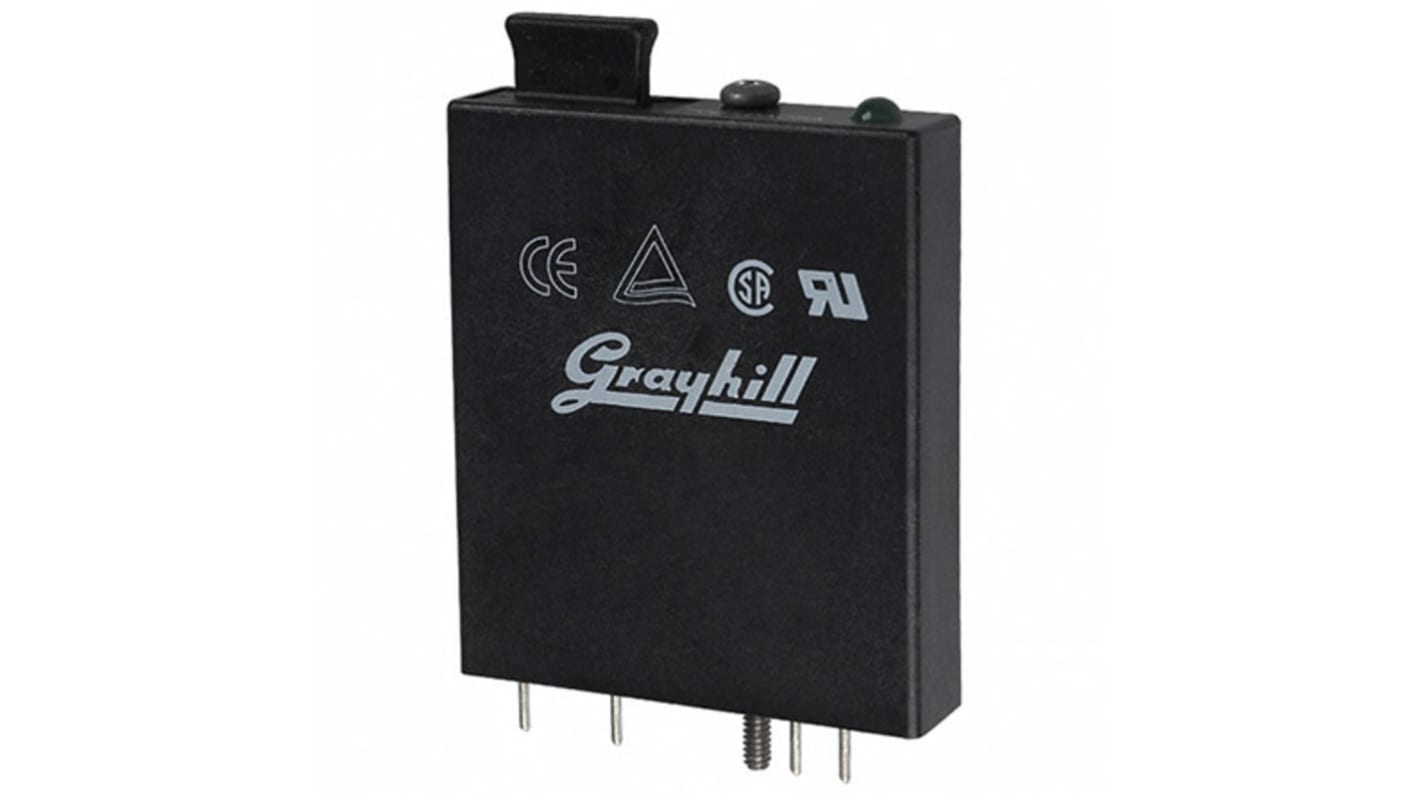

Grayhill 70-OAC Series Interface Relay Module, PCB Mount, 32V Coil, SPST, 1-Pole
- RS Stock No.:
- 877-8379
- Mfr. Part No.:
- 70G-OAC24
- Brand:
- Grayhill
Bulk discount available
Subtotal (1 unit)*
£9.88
(exc. VAT)
£11.86
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £9.88 |
| 5 - 9 | £9.57 |
| 10 + | £9.19 |
*price indicative
- RS Stock No.:
- 877-8379
- Mfr. Part No.:
- 70G-OAC24
- Brand:
- Grayhill
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Grayhill | |
| Coil Voltage | 32V | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Depth | 11.7mm | |
| Height | 55.9mm | |
| Length | 48.3mm | |
| Series | 70-OAC | |
| Input Current | 8mA | |
| Dimensions | 48.3 x 11.7 x 55.9mm | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CE, CSA, TUV, UL Listed | |
| Special Features | Built-In Status LED, Normally Open, Optical Isolation, Transient Protection | |
| Input Resistance | 2700Ω | |
| Operating Temperature Range | -40 → +100°C | |
| Turn On Time | 8.33ms | |
| Turn Off Time | 8.33ms | |
| Select all | ||
|---|---|---|
Brand Grayhill | ||
Coil Voltage 32V | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Depth 11.7mm | ||
Height 55.9mm | ||
Length 48.3mm | ||
Series 70-OAC | ||
Input Current 8mA | ||
Dimensions 48.3 x 11.7 x 55.9mm | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, CSA, TUV, UL Listed | ||
Special Features Built-In Status LED, Normally Open, Optical Isolation, Transient Protection | ||
Input Resistance 2700Ω | ||
Operating Temperature Range -40 → +100°C | ||
Turn On Time 8.33ms | ||
Turn Off Time 8.33ms | ||
RoHS Status: Not Applicable
