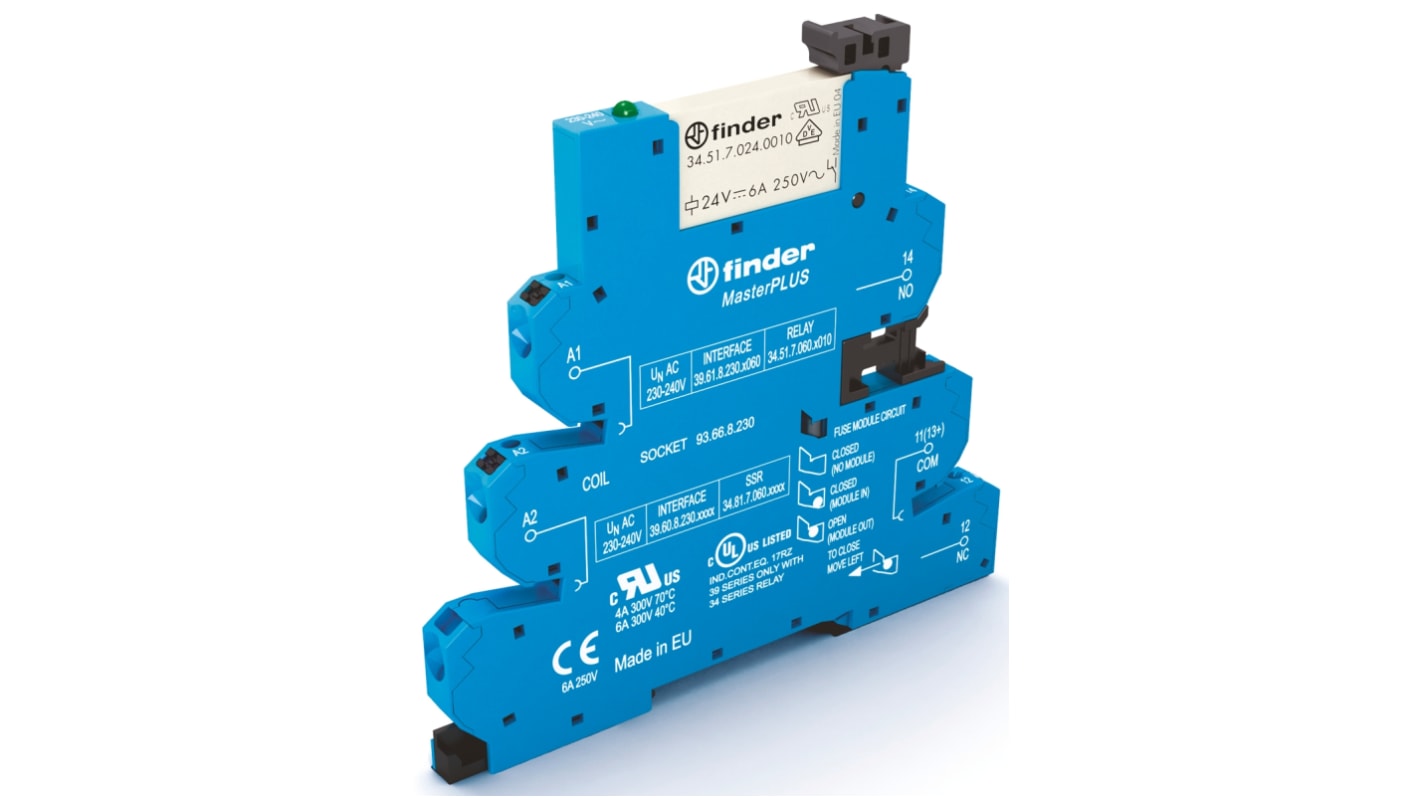

Finder 39 Series Interface Relay, DIN Rail Mount, 110V ac Coil, SPDT
- RS Stock No.:
- 819-8865
- Mfr. Part No.:
- 39.61.3.125.0060
- Brand:
- Finder
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 819-8865
- Mfr. Part No.:
- 39.61.3.125.0060
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 110V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Series | 39 Series | |
| Maximum Input Voltage | 138V ac/dc | |
| Minimum Input Voltage | 88V ac/dc | |
| Switching Voltage | 250 → 400V ac | |
| Terminal Type | Push In | |
| Depth | 90.7mm | |
| Height | 94.3mm | |
| Length | 6.2mm | |
| Contact Material | Silver Alloy | |
| Input Current | 8.4mA | |
| Turn Off Time | 6ms | |
| Operating Temperature Range | -40 → +70°C | |
| Turn On Time | 5ms | |
| Input Voltage Range | 88 → 138V | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Dimensions | 6.2 x 90.7 x 94.3mm | |
| Special Features | Protection category IP 20 | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 110V ac | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series 39 Series | ||
Maximum Input Voltage 138V ac/dc | ||
Minimum Input Voltage 88V ac/dc | ||
Switching Voltage 250 → 400V ac | ||
Terminal Type Push In | ||
Depth 90.7mm | ||
Height 94.3mm | ||
Length 6.2mm | ||
Contact Material Silver Alloy | ||
Input Current 8.4mA | ||
Turn Off Time 6ms | ||
Operating Temperature Range -40 → +70°C | ||
Turn On Time 5ms | ||
Input Voltage Range 88 → 138V | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Dimensions 6.2 x 90.7 x 94.3mm | ||
Special Features Protection category IP 20 | ||
- COO (Country of Origin):
- IT
39 Series - EMR Screw Terminals
A range of electromechanical relay interface modules from the 39 series from Finder, these relays have a high switching capability.
Space saving 6.2 mm wide
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
